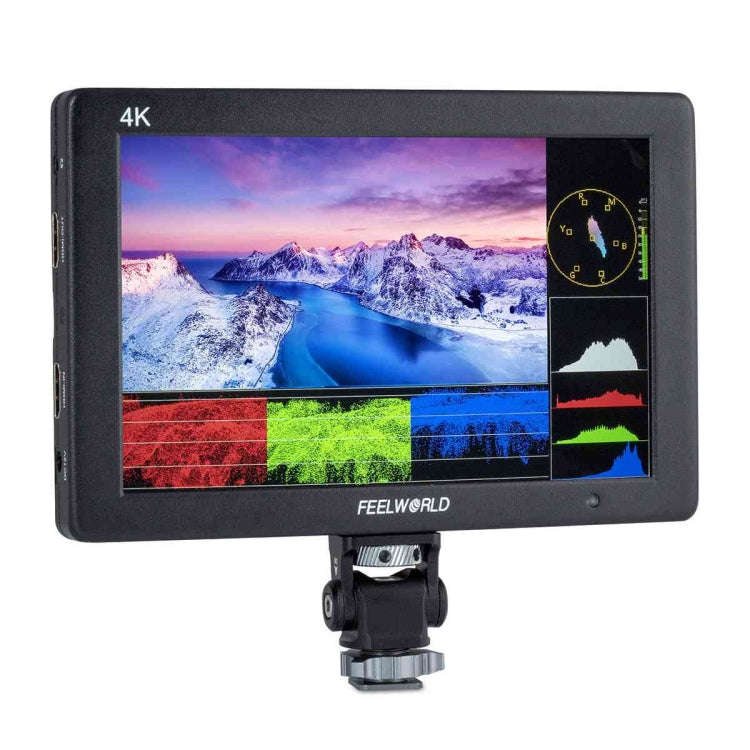

FEELWORLD T7 PLUS 7 inch 3D LUT DSLR Camera Field Monitor with Waveform 4K HDMI Aluminum Housing ...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DCA2504B
Bob Shop ID
614114175

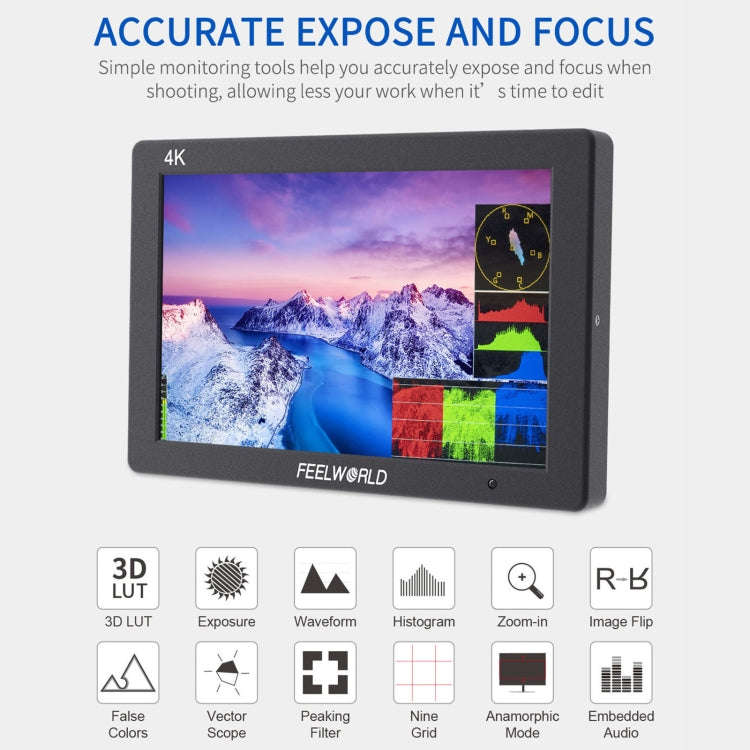

Features

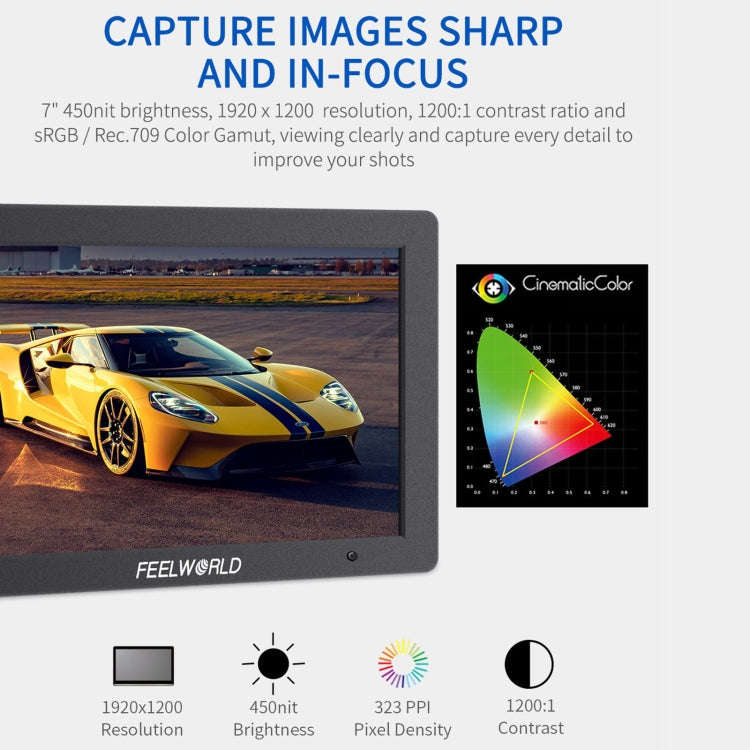

1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. High Brightness: 450cd/m2
4. 160 degrees wide viewing angles IPS Panel
5. Ultra thin design 18mm thickness
6. Custom 3D LUT import (up to 32)
7. All waves
8. Waveform (RGB, Y, YUV)
9. Histogram (RGB1, Y, RGB2)
10. Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
11. False Colors
12. Zebra Exposure
13. Nine Grid
14. Embedded Audio
15. Scan Mode (Under Scan, Over Scan)
16. Zoom (4x,9x,16x)
17. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
18. Pixel to Pixel
19. Center Marker
20. Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1)
21. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
22. Marker Color (Red, Green, Blue, White, Black???
23. Check Field (Red, Green, Blue, Mono)
24. Image Flip (H, V, H/V)
25. Image Freeze
26. Zoom All (0~500 adjustable)
27. U/D & L/R Zoom (0~500 adjustable)
28. Color Temperature Adjustment
Specifications
Display Spec.:
1. Model: T7 PLUS
2. Screen Size: 7 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 450cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degees / 80 degees (L/R) 80 degees /80 degees (U/D)

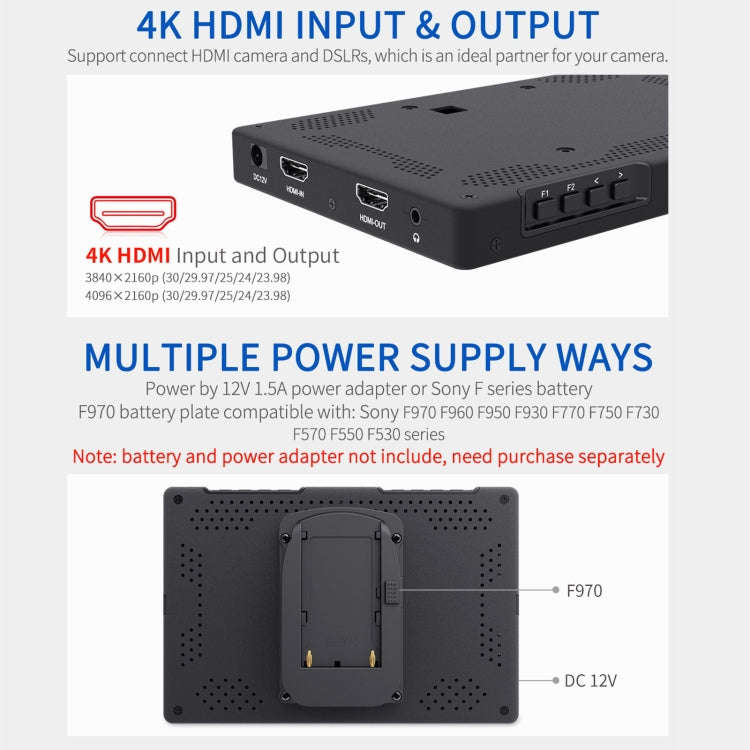

Input:
1 X HDMI: HDMI
Output:
1 X HDMI: HDMI
Media:
1. Audio: Stereo Headphone, Speaker
2. HDMI Input/ Output Support Format: 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF), 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
General:
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 8W
3. Install Way: 1/4 -20 Thread Socket (top, bottom)
4. Battery Plate: F970 (Standard)

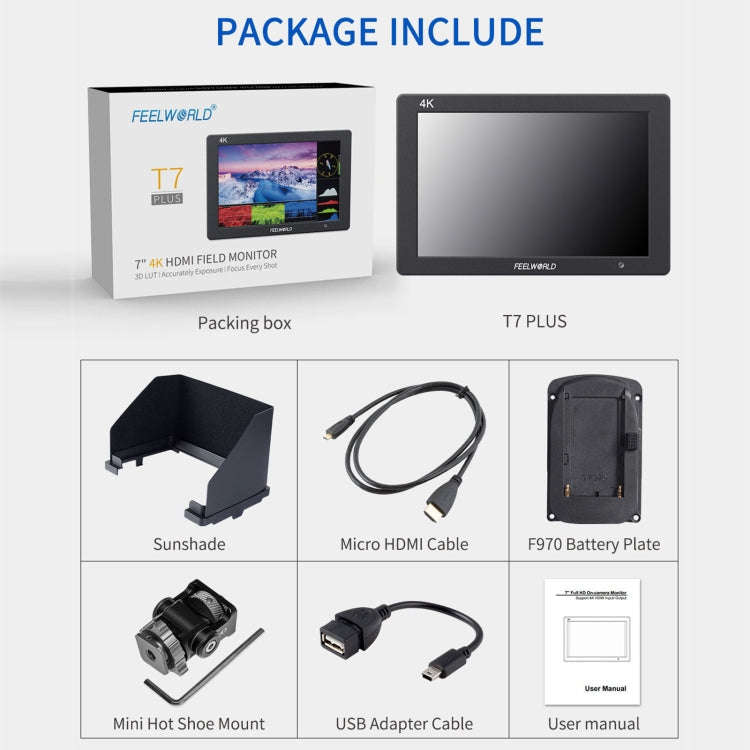

Package List
1. Monitor x 1
2. Mini HDMI Cable x 1
3. USB Adapter Cable x 1
4. Sunshade x 1
5. Mini Hot Shoe Mount+Hex Wrench x 1
6. F970 Battery Plate x 1
7. Operation Manual x 1
