Fivestar 2000W 24V Hybrid UPS Inverter | Pure Sine Wave | 60A Solar Charger | High Efficiency (98%)

Fivestar 2000W 24V Hybrid UPS Inverter | Pure Sine Wave | 60A Solar Charger | High Efficiency (98%)

Optimized Product Description:

Reliable 2000W Hybrid UPS Inverter for Solar & Backup Power

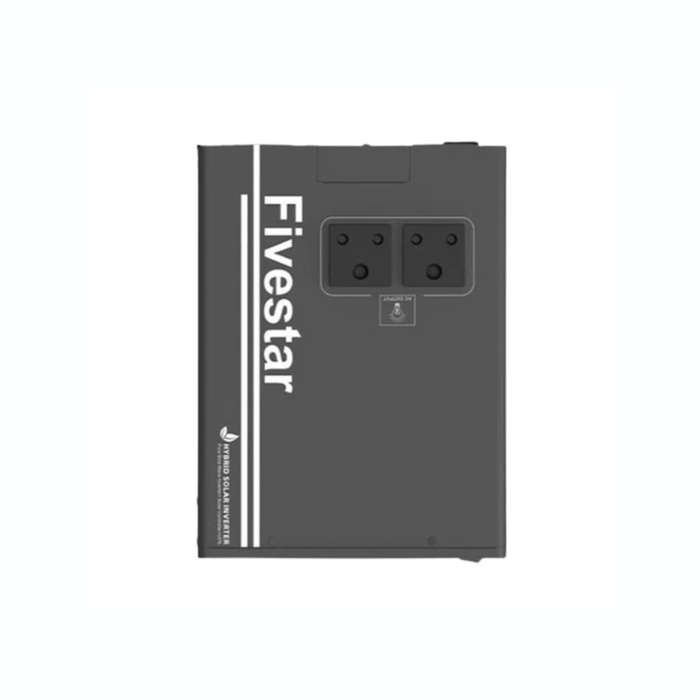

The Fivestar 2000W 24V Hybrid UPS Inverter (Model AL2024-FS) is a versatile and high-efficiency power solution for off-grid solar systems, home backup power, and UPS applications. With pure sine wave output, integrated solar charging, and a fast transfer time (<8ms), this inverter delivers stable and uninterrupted power for sensitive electronics and essential appliances.

Key Features:

Multi-Function Hybrid Inverter

• 2000W Pure Sine Wave Output Ensures clean and stable power for sensitive devices.
• 24V DC Input | 220V/110V AC Output Supports a wide range of power applications.
• Automatic 50/60Hz Frequency Sensing Adapts to different regional power requirements.
• Fast Transfer Time (<8ms) Ensures uninterrupted switching between AC and DC modes.
• Bypass & Saver Modes Optimizes power efficiency and extends battery life.
• >98% Efficiency Maximizes energy savings.

Advanced Battery Management

• Supports Multiple Battery Types: AGM-Deep Cycle, GEL, LiFePO4.
• Compatible with Battery Capacities Up to 500Ah Ideal for extended backup power.
• Charging Current: 19A Fast and efficient battery recharging.

Integrated Solar Charging

• Maximum PV Array Power:
  • 12V System: 800W
  • 24V System: 1600W
• MPPT/PWM Input Voltage Range:
  • 12V System: 15-50V DC
  • 24V System: 30-105V DC
• Maximum PV Open Circuit Voltage:
  • 12V System: 50V DC
  • 24V System: 105V DC
• Maximum Solar Charging Current: 60A Efficient solar power utilization.

Comprehensive Protection Features

• Input & Output Circuit Breakers Protects against electrical faults.
• Overload & Short Circuit Protection Ensures safe operation.
• Battery Overcharge & Deep Discharge Protection Extends battery life.

User-Friendly & Durable Design

• Compact & Lightweight Easy installation and integration into existing systems.
• Automatic Voltage Regulation (+10% in UPS Mode) Ensures stable power supply.

Technical Specifications:

Input & Output:

• DC Input Voltage: 24V DC
• Nominal AC Voltage: 220V / 110V AC
• AC Voltage Range: 154-265V AC / 77-135V AC
• Frequency: 50/60Hz (Auto Sensing)

Output Performance:

• Rated Power: 2000W
• Waveform: Pure Sine Wave
• Transfer Time (AC to DC): <8ms
• Transfer Time (DC to AC): <8ms
• Output Voltage Regulation: ±10% RMS

Battery Management:

• Battery Type: AGM-Deep Cycle, GEL, LiFePO4
• Supported Capacity: Up to 500Ah
• Charging Current: 19A

Solar Charging:

• Max PV Array Power: 12V (800W) | 24V (1600W)
• MPPT/PWM Input Voltage Range:
  • 12V: 15-50V DC
  • 24V: 30-105V DC
• Max PV Open Circuit Voltage:
  • 12V: 50V DC
  • 24V: 105V DC
• Max Solar Charging Current: 60A

Safety & Protection:

• Input Protection: Circuit Breaker
• Output Protection: Circuit Breaker
• Overload & Short Circuit Protection
• Battery Overcharge & Deep Discharge Protection

General Information:

• Efficiency: >98%
• Mounting: Wall or Shelf Installation
• Cooling: Intelligent Fan Cooling System

What's in the Box?

• 1 × Fivestar 2000W 24V Hybrid UPS Inverter
• 1 × Battery Fuse & Holder
• 1 × Power Cable
• 1 × User Manual
  (Battery Cables & Steel Trolley Not Included)
