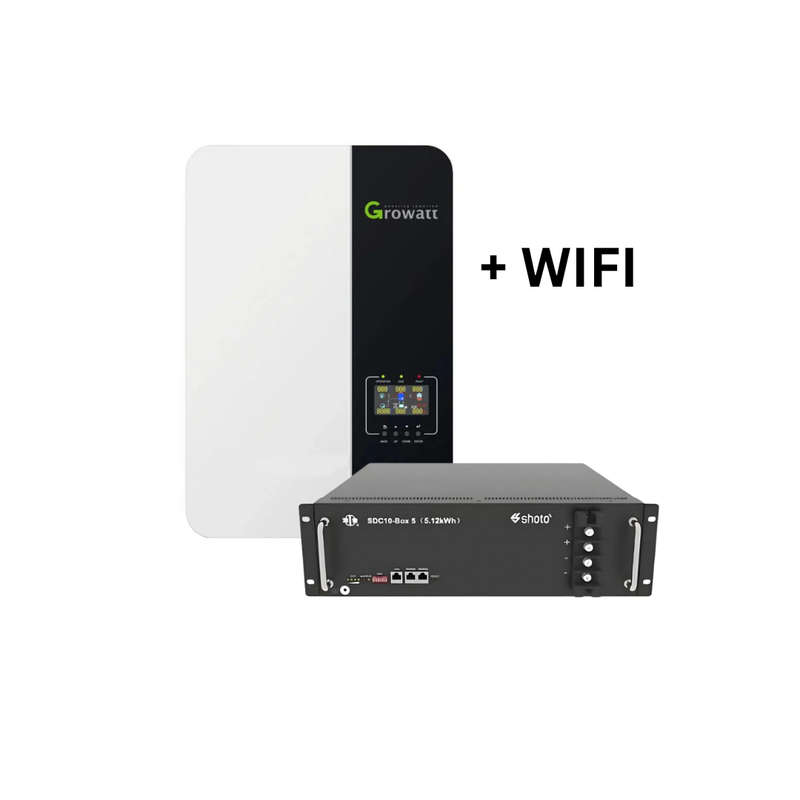

The 5KVA / 5000W Growatt Hybrid Inverter paired with a 5.12kWh SHOTO Lithium Battery 48V Combo offers a robust solar energy solution for residential and small commercial applications. The Growatt inverter efficiently manages both solar and grid power, optimizing energy use and providing reliable backup. The SHOTO Lithium Battery ensures high energy storage capacity, fast charging, and long cycle life, enhancing the system's overall performance and durability. Together, they deliver a dependable, scalable, and efficient power system for energy independence and cost savings.
5KVA / 5000W Growatt SPF 5000 Hybrid Inverter 48V + WIFI
The Growatt SPF 5000 Hybrid Inverter is a powerful and versatile solar energy solution designed for residential and commercial applications. With a maximum PV input voltage of 450VDC, this high-efficiency off-grid and hybrid inverter maximizes solar energy harvesting and seamlessly converts it into reliable, usable power.
Features & Benefits:
-Hybrid Functionality Operates with or without a battery, providing flexible energy solutions for both grid-tied and off-grid setups.
-Advanced MPPT Charge Controller Integrated Maximum Power Point Tracking (MPPT) optimizes solar charging, enhances energy efficiency, and extends battery life.
-Battery Management & Longevity Supports equalization charging, which improves battery performance and lifespan by preventing capacity loss over time.
-Configurable Power Prioritization Select whether to prioritize solar or grid power for charging, ensuring your energy system adapts to your specific needs.
-Seamless Energy Management Automatically switches between solar, grid, and battery power, maximizing energy savings and providing backup power during outages.
Optimized for Energy Independence
The Growatt SPF 5000 ES offers a highly adaptable solar inverter solution, perfect for homeowners and businesses looking to reduce electricity costs, increase energy independence, and ensure uninterrupted power supply. Whether you're setting up a battery-backed solar system or utilizing direct solar-to-grid energy, this inverter delivers high efficiency, durability, and smart energy control.
Functions
- Integrated MPPT charger controller.
- Equalization charging function.
- Use with Batteries or without.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
General Specifications
- Module: SPF 5000 ES.
- Battery voltage: 48vDC.
- Battery type: Lithium/Lead-acid.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg
- Warranties: 2 Years
PACKAGE INCLUDE
1x HYBRID GROWATT INVERTER 5KVA 48V
1x WIFI DONGLE
1x USER MANUAL
Warranty & Installation Requirements:
- 2-Year Warranty on Inverter
- Installation must be performed by a qualified wireman or Master Electrician registered with the Department of Labour.
- A valid Electrical Certificate of Compliance (COC) must be issued after installation.
- Compliance with SANS 10142 is required.
- Warranty Claims Require:
- Installation photos
- A valid COC
- Proof of installation by a qualified professional
- Failure to meet these requirements may result in warranty voidance.
Shoto 5.12kWh Lithium-Ion Battery 5000+ Cycles, Rack Mount
Description:
The Shoto 5.12kWh Lithium-Ion Battery is a high-performance energy storage solution, engineered for residential and commercial solar applications. With over 5000 cycles at 90% Depth of Discharge (DOD) and a 10+ year design life, this battery ensures long-term reliability and efficiency. The rack-mounted structure allows for easy installation, while its scalable parallel capability of up to 16 units makes it ideal for expanding energy storage needs.
Key Features:
