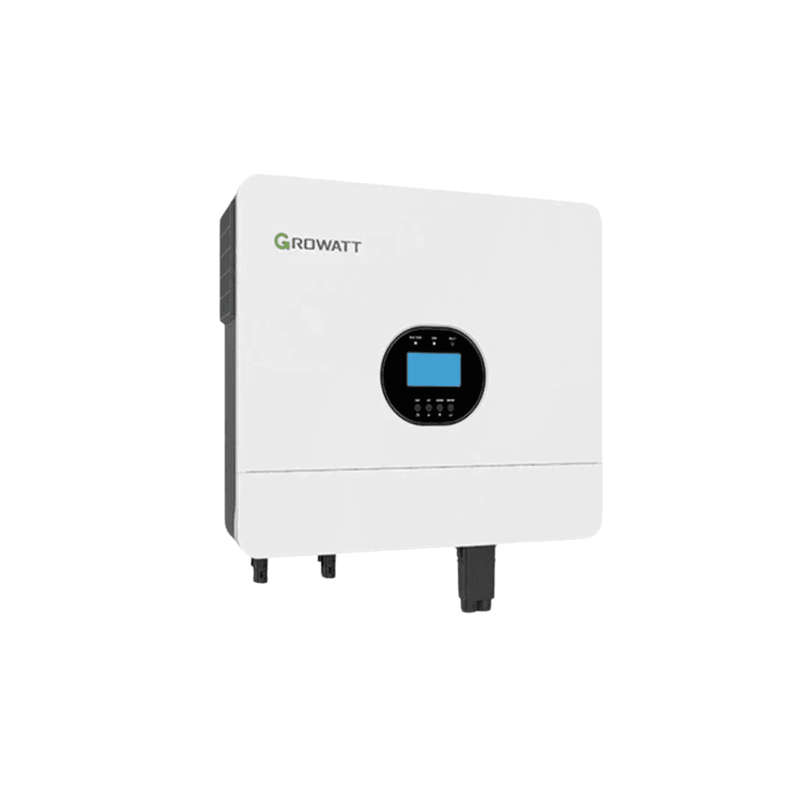

Growatt 6KVA / 6000W Hybrid Inverter 48V / MPPT (Parallel) (SPF 6000-ES-PLUS)

Growatt 6KVA / 6000W Hybrid Inverter 48V / MPPT - Pure Sine Wave (Parallel)

Description:

The Growatt SPF 6000-ES-PLUS 6KVA Hybrid Inverter is an advanced solar power solution designed for residential and commercial applications. This inverter efficiently manages solar, battery, and grid power with its intelligent hybrid system, ensuring uninterrupted electricity supply.

With parallel capability for up to 6 units, it supports scalable energy needs. The 8000W MPPT solar charger maximizes energy conversion, while the pure sine wave output ensures stable and efficient power for sensitive electronics. Featuring lithium, lead-acid, and gel battery compatibility, this inverter offers flexibility in energy storage solutions.

Key Features:

• 6KVA / 6000W Pure Sine Wave Output Delivers clean, stable power.
• 8000W Maximum PV Input Power Optimizes solar energy utilization.
• MPPT Operating Voltage Range: 120V - 450V DC.
• Parallel Operation (Up to 6 Units) Expandable for higher power needs.
• Fast Transfer Time 10ms typical, 20ms max for seamless backup.
• High Surge Power (12,000VA) Handles startup loads efficiently.
• Battery Compatibility: Works with Lithium, Lead-Acid, and Gel batteries.
• Flexible AC Input Range 170-280V for PCs, 90-280V for home appliances.
• Maximum Solar Charger Current: 100A.
• AC Charger: 80A for efficient battery charging.

Technical Specifications:

General

• Model: SPF 6000-ES-PLUS
• Battery Voltage: 48V DC
• Rated Power: 6000VA / 6000W
• Parallel Capability: Yes, up to 6 units

AC Output

• Waveform: Pure Sine Wave
• Surge Power: 12,000VA
• Transfer Time: 10ms (typical), 20ms (max)

Solar Charging

• Maximum PV Array Power: 8000W
• MPPT Operating Voltage: 120V - 450V DC
• Maximum Input Current per MPPT Tracker: 16A
• Maximum Solar Charger Current: 100A

AC Charging

• AC Charge Current: 80A
• AC Input Voltage: 230V AC
• Selectable Voltage Range:
  • 170-280V AC (for PCs)
  • 90-280V AC (for home appliances)
