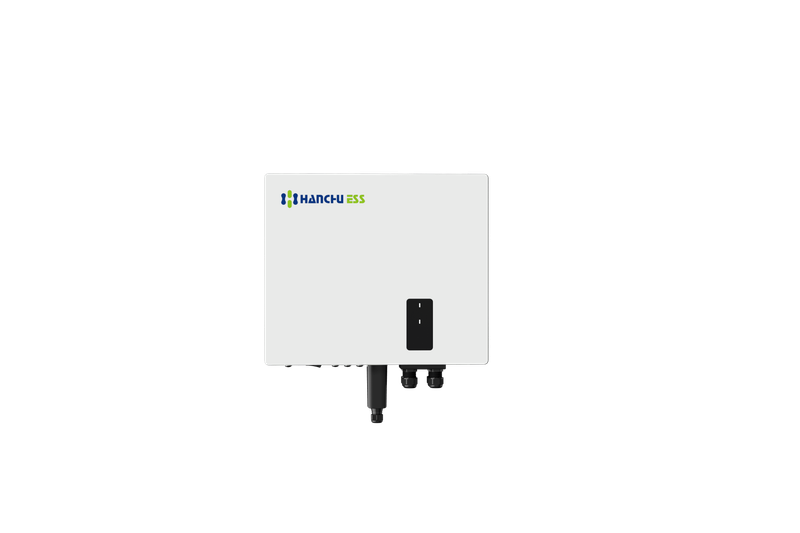

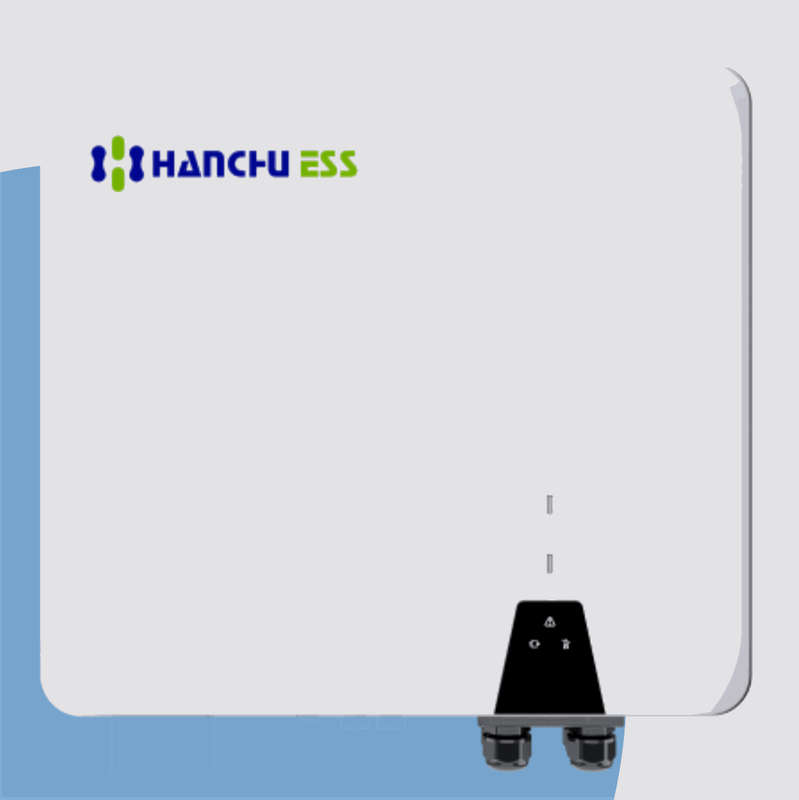

Hanchu 12kW Hybrid Inverter 3P HV (HESS-HY-T-12K)

Product Description for Hanchu 8-12kW Hybrid Inverter 3 Phase (HESS-HY-T-8-12K)

Introducing the Hanchu 8-12kW Hybrid Inverter 3 Phase (HESS-HY-T-8-12K), a state-of-the-art solution designed to meet the dynamic energy needs of modern homes and businesses. This inverter seamlessly integrates solar energy, battery storage, and grid power, ensuring optimal energy management and efficiency.

Key Features:

• Easy Installation: Equipped with Phoenix Contact connectors, the inverter offers reliable, tool-free DC connections for hassle-free setup.
• Compact Design: The wall-mount design makes it a space-saving addition to any setting.
• Battery and Smart Meter Compatibility: Simple interfaces for batteries and smart meters enhance usability.
• High Voltage Battery Compatibility: Supports high-voltage batteries for flexible energy storage options.
• Durable Outdoor Design: With an IP66 rating, this inverter is built to withstand various weather conditions, ensuring long-term outdoor performance.
• Enhanced Solar Generation: Features ShadeSol technology for improved energy generation under less-than-ideal conditions.
• UPS-Level Switching: Boasts a switching time of less than 10 milliseconds, providing uninterrupted power supply during outages.
• User-Friendly Interface: Easily monitor and manage the system through the Hanchu ESS app.
• Intelligent Battery Management: Customizable battery management settings cater to different needs, including Depth of Discharge (DOD), Time of Use, and power settings.
• High Input Current: Supports up to 20A input current, ideal for bifacial and large-scale PV modules.

Technical Specifications:

• Model Variants: HESS-HY-T-08K, HESS-HY-T-10K, HESS-HY-T-12K
• AC Output Power: 8000VA to 12000VA
• Max. PV Array Power: 12000Wp to 18000Wp
• Input Voltage Range: 200V to 950V
• Battery Voltage Range: 120V to 600V
• Max. Charging/Discharging Power: 8000W to 12000W
• Efficiency: Max. efficiency of 98.4%, Euro efficiency of 97.9%
• Dimensions: 545mm (W) x 465mm (H) x 205mm (D)
• Weight: 24.5 kg
• Operating Temperature: -25°C to +60°C
• Protection: DC surge protection, insulation resistance detection, reverse polarity protection, ground fault monitoring, residual current monitoring, AC short circuit protection, anti-islanding protection
• Communication Interfaces: CAN, RS485, WiFi, LAN, 4G, Bluetooth
• User Interface: LED and APP

The Hanchu 8-12kW Hybrid Inverter 3 Phase is the ultimate choice for those seeking reliable, efficient, and intelligent energy solutions. Whether for residential or commercial use, this inverter ensures maximum energy utilization and seamless power management.
