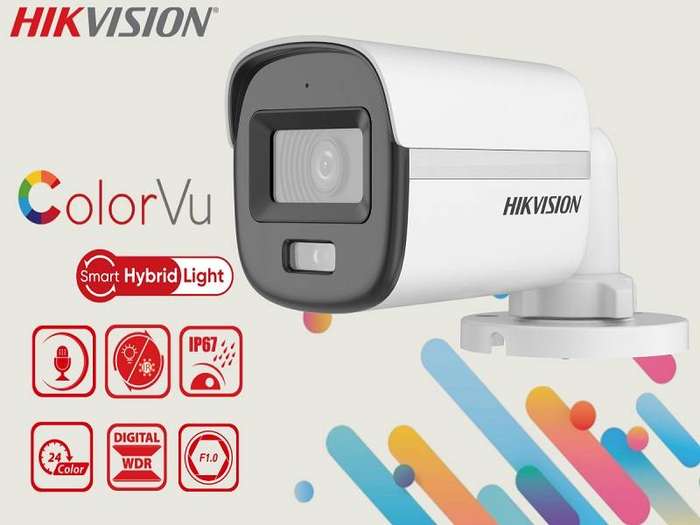

Hikvision 4-Channel ColorVu CCTV Kit a compact, high-performance system built for vivid 24/7 monitoring. The kit includes 2MP Smart Hybrid Light ColorVu fixed mini bullet cameras that deliver full HD 1920 × 1080 resolution and ultra-bright night vision using both white light and infrared (up to 20 meters). The cameras feature a wide F1.0 aperture for full-color imaging even in low light, 3D DNR for crisp clarity, and built-in microphones that provide clear audio over coaxial cable. With support for TVI, AHD, CVI, and CVBS signal types and IP67 weatherproof design, these cameras are versatile and durable for both indoor and outdoor use.
The included 4-channel DVR offers efficient H.265 Pro+ compression, coaxial audio input, and long-distance video transmission of up to 1200 meters for 720p signals. This bundle comes complete with a 1TB WD hard drive for continuous recording, ZATECH ready-made 20-meter video/power cables, a ZATECH junction box for clean connections, a power supply, and a DCW4P 4-way camera power distributor. Perfect for small offices, shops, or homes, this all-in-one CCTV kit offers professional-grade security with hassle-free setup.
Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
- Signal SystemPAL/NTSC
- Microphone
- Pickup DistanceIn a radius of up to 5 m
- Amount1
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
- Image
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- Image SettingsBrightness, Sharpness, Anti-banding, AGC
- Frame RateTVI: 1080p @25 fps/30 fpsCVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
- Day/Night ModeAuto/Color
- Wide Dynamic Range (WDR)Digital WDR
- Noise Reduction3D DNR/2D DNR
- Image EnhancementDWDR,BLC,HLC,Global
- White BalanceAuto, Manual
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
DVR
- Motion Detection 2.0
- Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
- Video and Audio
- IP Video Input1-ch (up to 5-ch)Up to 1080p resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input1-ch RCA (2.0 Vp-p, 1 K )4-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 K )
- Two-Way AudioReuse the first audio input
- Synchronous playback4-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
- Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 4 Mbps
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth64 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP , HTTPS
- Remote Connection32
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 4 TB capacity for each disk
- USB InterfaceRear panel: 2 × USB 2.0
- Alarm In/OutN/A

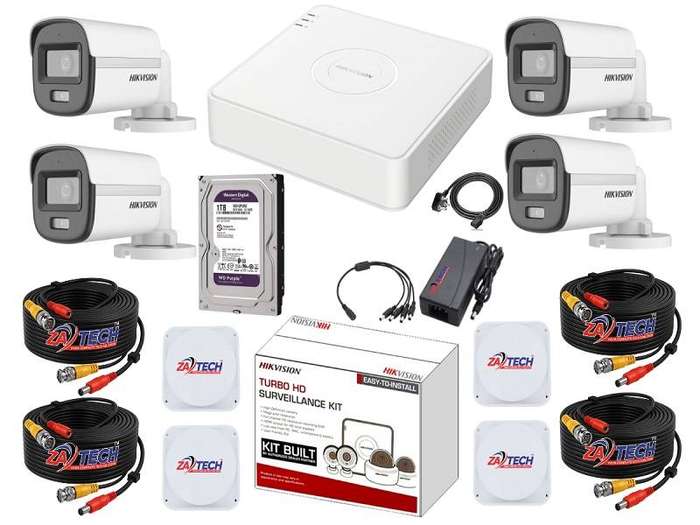

Whats in the box
4 x 2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera
1 x 4-ch 720p Mini 1U H.265 DVR
1 x 1 TB HDD
4 x Zatech ready-made 20m cables
4 x Zatech junction box
1 x Power supply
1 x DCW4p
