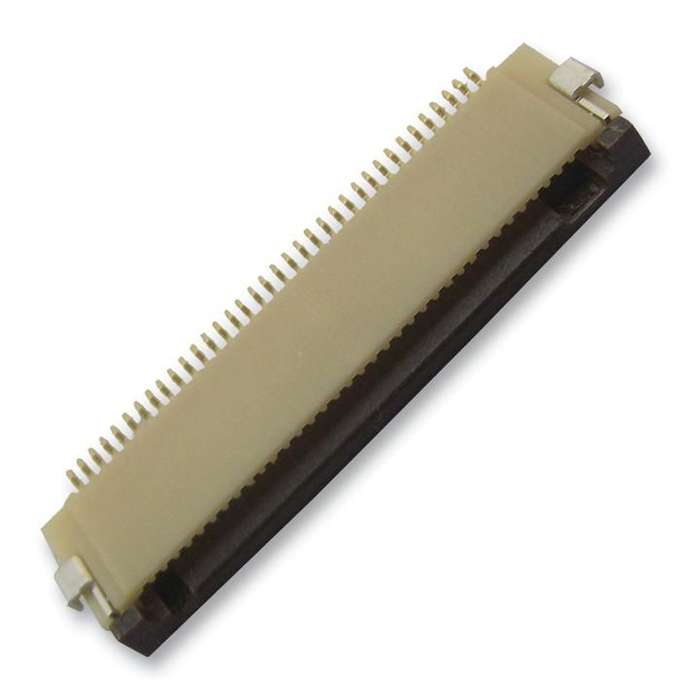

Hirose (FH12-36S-0.5SH(55)) FFC / FPC Board Connector, 0.5 mm

FFC / FPC Board Connector, 0.5 mm, 36 Contacts, Receptacle, FH12, Surface Mount,BottomProduct OverviewThe FH12-36S-0.5SH(55) is a 36-position 1-row 0.5mm female FPC/FFC Receptaclewith beige polyamide and dark brown PPS insulator, gold plated phosphor bronzecontacts and tin plated metal fitting. The FH12 series connector has horizontalFPC/FFC insertion direction, front actuator position, bottom contact orientationand SMT horizontal mounting type. The one-touch rotating ZIF mechanism is easierto operate and works with a light force. A clear tactile click is delivered uponthe successful completion of the mating process. The FH12's one-touch ZIF systemrequires less space than a slide locking connector and can be mounted in thecentre of the PCB. The FH12S version in 30, 40, 45, 50 and 53 pin counts areoffered with a reinforced actuator that provides an extra measure of securityagainst actuator breakage.Rotating one-touch ZIF mechanismClear tactile clickSupports high density mountingReinforced actuator0.5A Rated current50VAC/DC Rated voltage50mR Maximum contact resistance500MR Minimum insulation resistance150VAC for one minute Withstanding voltage20 Mating/unmating cyclesApplicationsIndustrialProduct InformationPitch Spacing: 0.5mmNo. of Contacts: 36ContactsGender: Receptacle (View Associated Connectors)Product Range: FH12Contact Termination Type: Surface MountContact Position: BottomNo. of Rows: 1 RowContact Plating: Gold Plated ContactsContact Material: Phosphor BronzeFFC/FPC Thickness: 0.3mm
