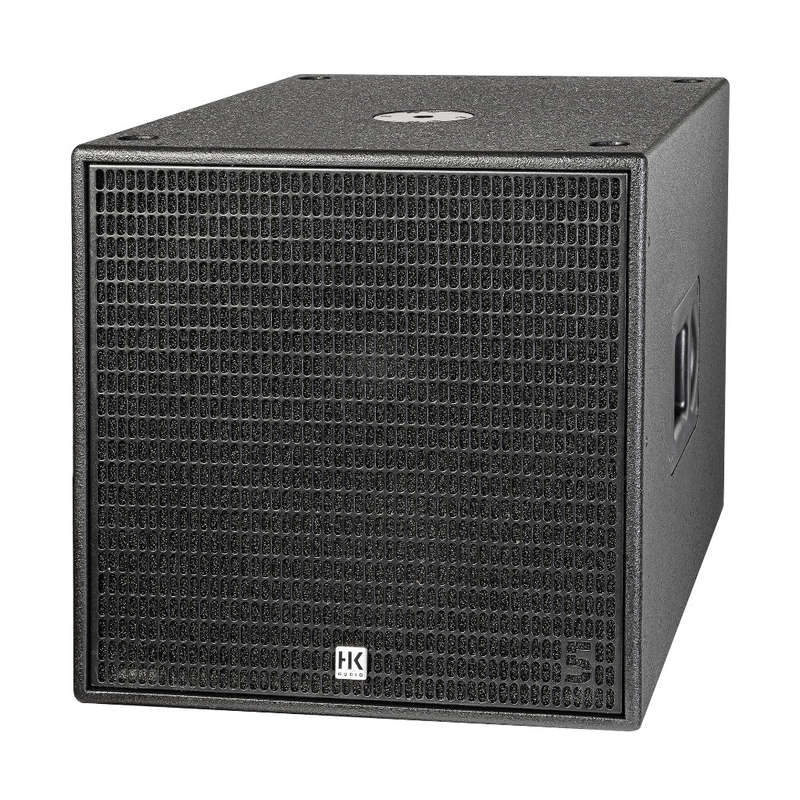

HK Audio LINEAR 5 MKII 118 Sub A Subwoofer - Each - Black

HK Audio LINEAR 5 MKII 118 Sub A Subwoofer - Each - Black

Birch multiplex bass reflex subwoofer with more sound pressure

The standard bass-reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and dry, defined bass down to the lowest of the lows. Cardioid settings that can be simply selected via a preset give the user an enormously expanded range of options for system configuration and access to the professional class. 2.1 setups are simplified thanks to the stereo preamplifiers.

Specifications:

Max. SPL @ 10 % THD    129 dB half space (42 Hz 100 Hz averaged)
Max. SPL Peak @ 10 % THD    131 dB half space
Frequency response +/-3 dB    42 Hz X-over
Frequency response -10 dB    38 Hz X-over
Power amp output (RMS/Peak)    1,000 / 2,000 W
Amplifier type    Class D
Woofer    1 x 18", 4" voice coil
Maximum input level    20 dBu

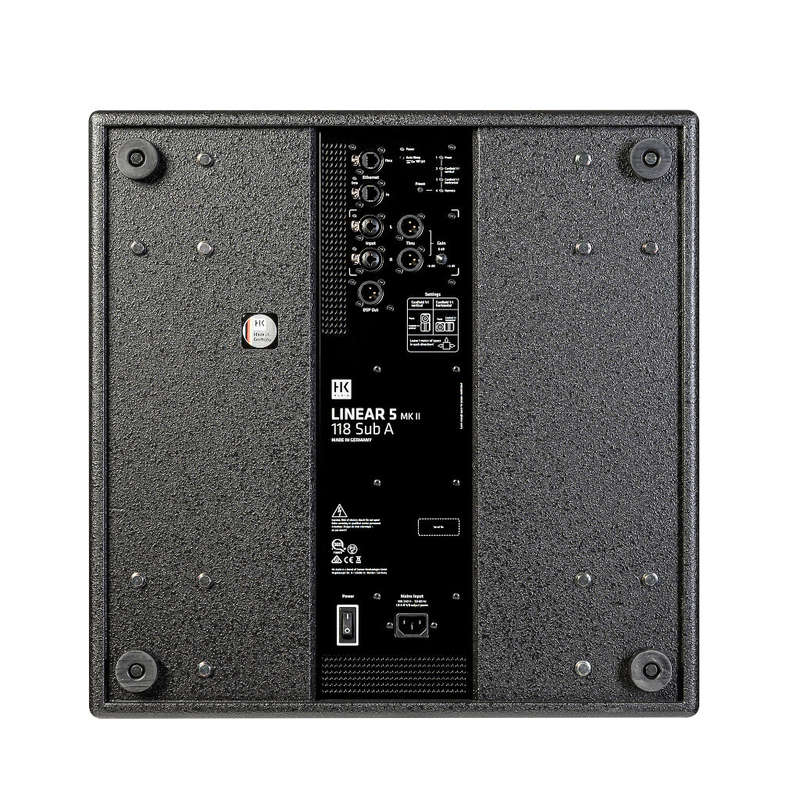

Analogue inputs    2 x XLR combo balanced
Analogue Thru    2 x XLR balanced
DSP Out    1 x XLR balanced
Network port    EtherCON RJ45, 1 x In, 1 x Thru
Filter presets    Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote
Remote software    DSP CONTROL (Windows, Mac OS)
DSP functions    Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate    48 kHz
System latency    Less than 2 ms
Mains connection    1x IEC connector with V-Lock securing system, 100-240 V
Power consumption    1.9 A / 100240 V nominal according to EN 62368-1
Pole mount    1 x M20

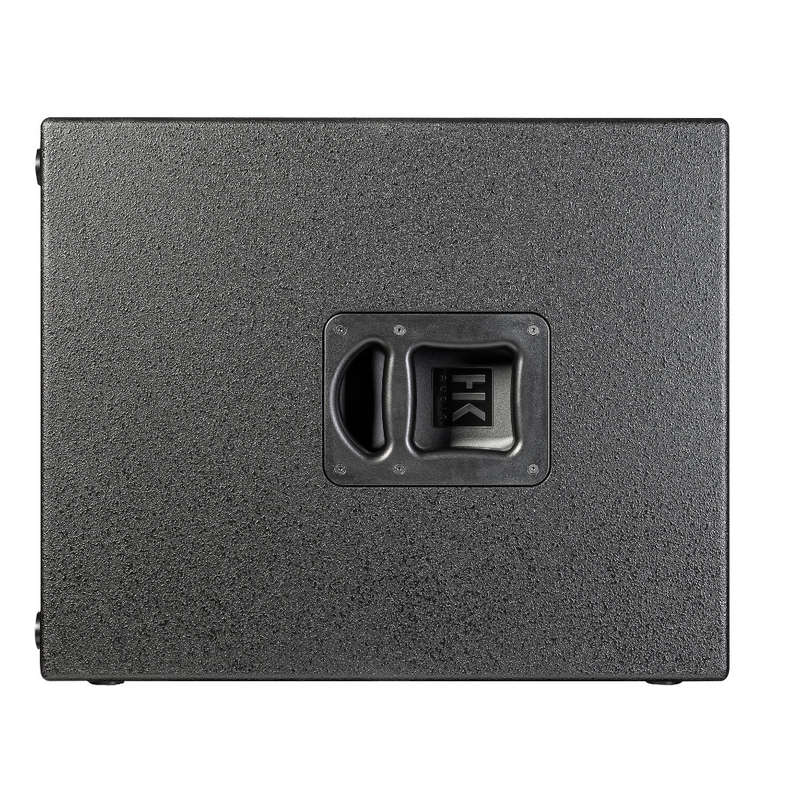

Carrying handles    2 x MultiGrip
Housing    Birch multiplex
Surface    Black acrylic enamel

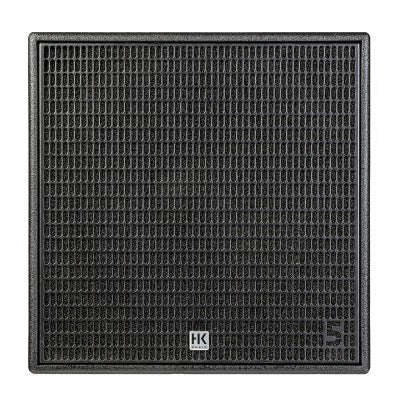

Front grille    2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)    55 x 56 x 68.5 cm 21-21/32 x 22-3/64 x 26-31/32"
Weight    41.6 kg / 91.71 lbs
