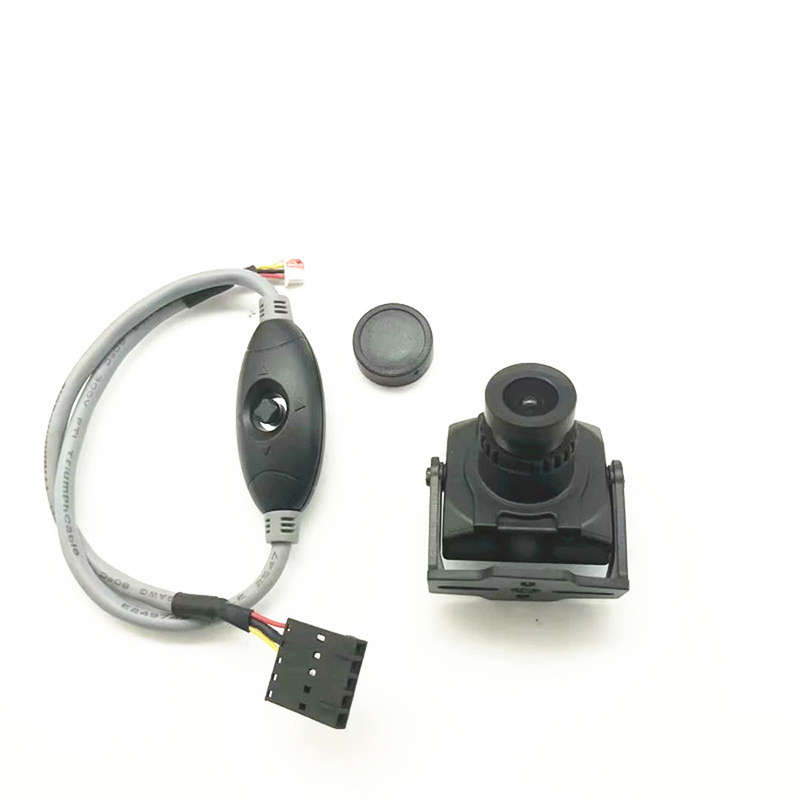

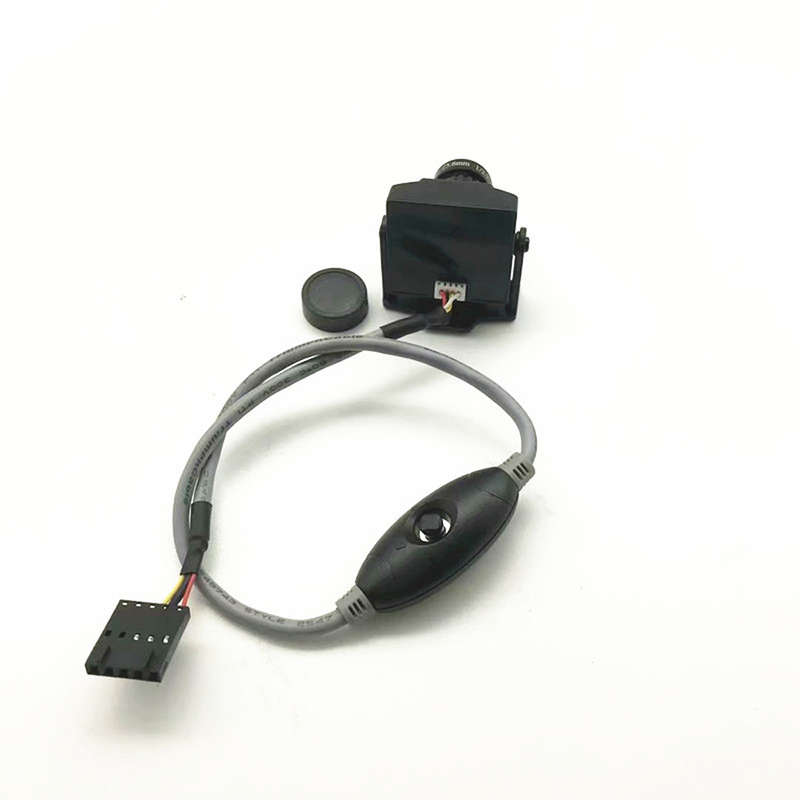

HS1171 1/3 Sony Super Had II CCD 2.8mm Lens 600TVL FPV Camera With Powerful OSD PAL/NTSC for FPV RC Racer Drone


The HS1171 is a mini version of the classic CC1333 600TVL Sony Super Had II CCD board FPV camera. It uses a 1/3 Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01 Lux (black/white) with a powerful OSD.

?

A customized 3pin servo cable is also included.


Description:

Model: HS1171

CCD: 1/3a?? Sony SUPER HAD II CCD

Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)??494(V)

TV System: PAL/NTSC(according to country)

Resolution: 650TVL(b/w), 600tvl(color)

Synchronization : internal synchronize

Shutter Speed: (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec

Noise: > 60 (AGC OFF)

Video Out: 75ohm, synchronize

Min. Illumination: 0.01Lux

Auto Gain: Off/Low/Mid/High

Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression

Private shading (PRIVACY): 1~8 private shading area

Motion Detect (MD): On/ Off (Multi level sensitivity settable)

Auto White Balance: Manual / Auto / Auto track

Mirror: Horizontal Mirror optional

Negative: Positive / Negative optional

Color to B&W: Auto

DNR: 2DNR

WDR: D-WDR

Day / Night Shift: Auto/ Color/ B&W

Menu (OSD): English menu

White Dot Repair: Support

Image Adjustment: Support

Camera Title: Support

Power Requirement: DC5V~22V

Working Temperature: -10 C ~ +50 C

Working Humidity: 20~80%

Storage Temperature: -40 C ~ +60 C

Storage Humidity: 20~95%

Dimensions(mm): 25X25(W*L)

Power Consumption: 70mA


Features:

* 600TVL high picture quality

* 1/3 SONY SUPER HAD II CCD

* Nextchip 2040 DSP

* Powerful OSD menu

* D-WDR (Wide Dynamic Range)

* 2D-DNR (Digital Noise Reduction)

* Low Power Consumption(70mA)

* Mirror function

* Privacy areas: 8 areas

* Low illumination: 0.01Lux

* 2.8mm Lens

* Low Power Consumption

* Suitable for FPV RC Drone


Package Included:

1x?HS1171 1/3 Sony Super Had II CCD 2.8mm Lens 600TVL FPV Camera
