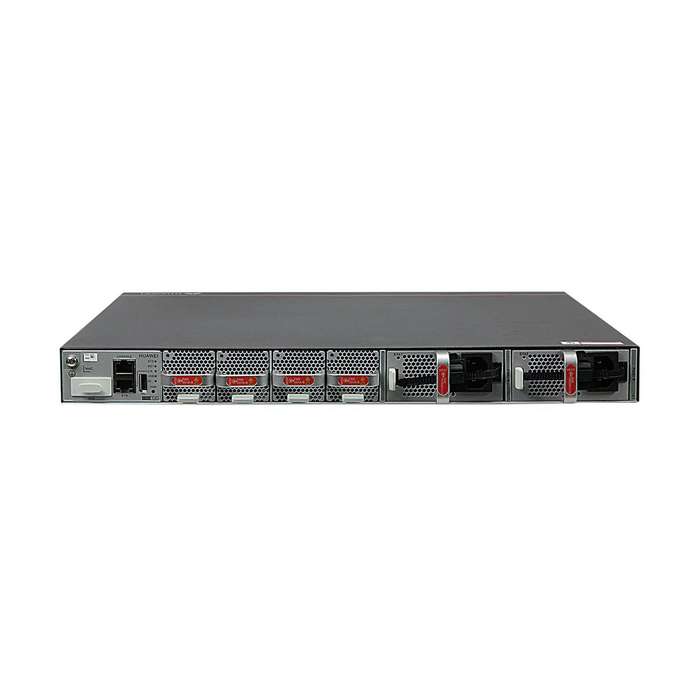

The Huawei S6730-S24X6Q is a 1U Layer 3 Ethernet switch equipped with 24 fixed 10G SFP+ ports and 6 fixed 40G QSFP+ uplink ports. Built for high-density aggregation and core switching in enterprise networks, it offers reliable Layer 3 routing performance with strong multicast, QoS, and network security features.
With a switching capacity of 2.4 Tbps and forwarding performance up to 480 Mpps, this unit supports robust IPv4 and IPv6 routing, VLAN segmentation, and network protection mechanisms for demanding environments.
Key Features & Benefits
24 x 10G SFP+ ports for high-speed fiber connectivity
6 x 40G QSFP+ uplink ports for backbone aggregation
Switching capacity of 2.4 Tbps and forwarding rate of 480 Mpps
Supports static routing, RIP, OSPF, IS-IS, and BGP protocols
Up to 64K MAC address entries and 4K VLANs
QoS features including rate limiting, queuing, and packet re-marking
Network protection with STP, MSTP, ERPS, and BFD
Layer 2Layer 4 ACL filtering and port security
Ideal Uses
Aggregation layer switch in enterprise campus networks
Core switch in medium-sized data centers
Backbone routing and VLAN segmentation in fibre-based environments
High-throughput switching for IPv4 and IPv6 network infrastructures
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Huawei
Model: S6730-S24X6Q
Form Factor: 1U Rackmount
Ports:
24 x 10G SFP+
6 x 40G QSFP+
Switching Capacity: 2.4 Tbps
Forwarding Performance: 480 Mpps
MAC Address Table: 64K entries
VLAN Support: 4,000 VLANs
IPv4 Routing: Static, RIP v1/v2, OSPF, IS-IS, BGP
IPv6 Routing: Static, RIPng, OSPFv3, IS-ISv6, BGP4+
Multicast Support: IGMP v1/v2/v3, PIM-SM, PIM-DM
QoS Features:
Rate limiting (inbound/outbound)
Traffic classification and policing
Queue scheduling (SP, DRR, SP+DRR)
ACLs & Security:
L2L4 filtering (MAC, IP, ports, protocol)
Port isolation, sticky MAC, MAC binding
IEEE 802.1X authentication
Reliability: STP, RSTP, MSTP, ERPS, BFD
Power Input:
AC: 100V240V, 50/60Hz
DC: 48V to 60V
Power Consumption (Max): 225W
Power Consumption (Min): 88W
Operating Temperature: 5°C to 45°C (up to 1800m altitude)
Storage Temperature: 40°C to 70°C
Humidity: 5% to 95% (non-condensing)
Altitude Range: Up to 5000m
Dimensions: 442 x 420 x 43.6 mm
Noise Level: 65 dB(A)
Fans: 4 (Pluggable, with speed control)
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch
