Do not confuse these with the older S100 batteries. These are the S100A range with FIRST LIFE cells :-)
NB - Please ensure you can set your inverter CUT OFF voltage to 11.2V, else the BMS will cut off and the battery will go dead (and will need to be jumped).
This means that you can only use this battery in the Mecer 1200VA/2400VA type inverters bought AFTER March 2023
We however recommend using this battery ONLY with an inverter that is able to set cut off to 11V or more.
*Please use a balancer when connecting 2 batteries in series: https://www.geewiz.co.za/hubble-battery-balancer/185924-lithium-24v-battery-balancer-equaliser-suitable-for-all-battery-types-24v.html
*Connecting 2 batteries in series WITHOUT a balancer will void the warranty*
Please note the bulk, float and cut-off voltages to be set for these batteries:
Bulk:14V
Float: 13.6V
Cut-off: 11.2V
*Please note - delivery will take 1-2 days extra to any area outside of Gauteng
*Please note - an additional charge of R195 shipping applies owing to the weight of the battery
*Collection from our Joburg office will be at no additional charge
The S-100A has a 2 year / 3500 cycle warranty.

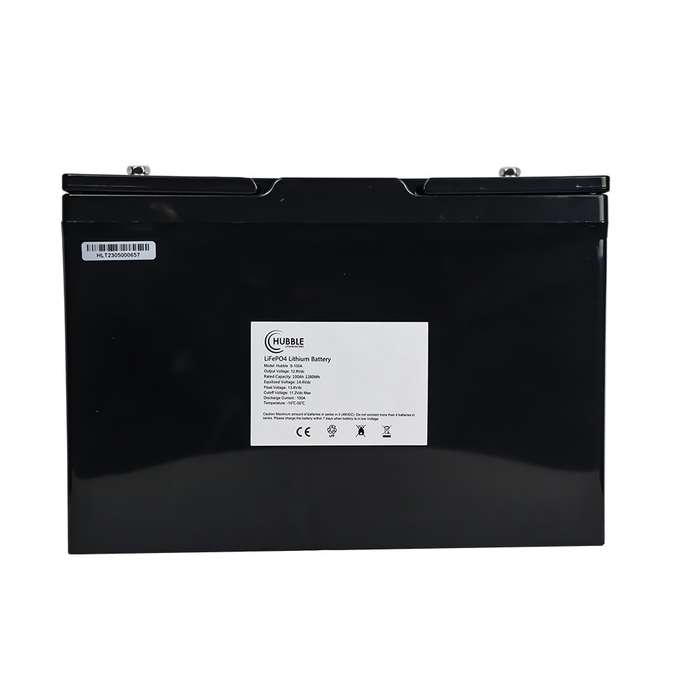

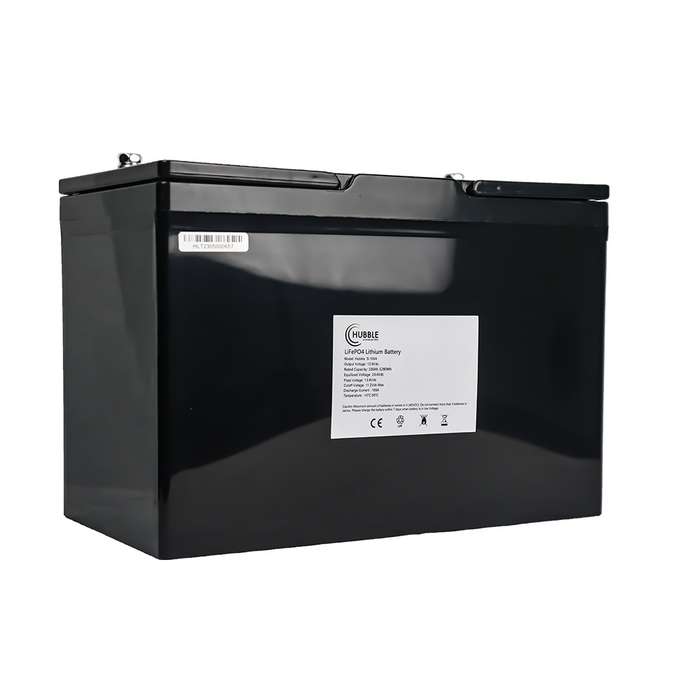

The S-100A has a integrated BMS inside the battery container, which also contain the prismatic lithium cells.

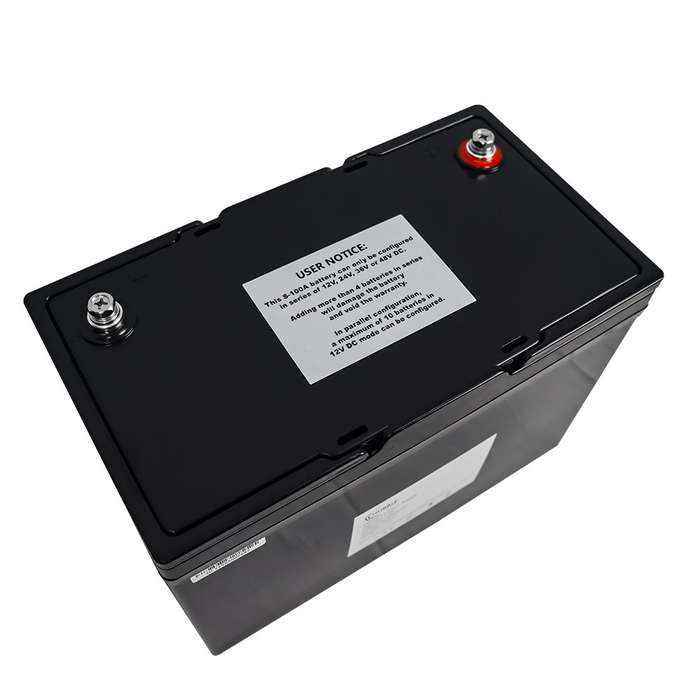

The S-100A can be connected up to 4 times in series maximum. You can configure the batteries in 12V, 24V, 36V or 48V in series.
You can run a maximum of 4 x S-100 units in series (48VDC) and 4 strings in parallel for a total of 16 batteries in one battery bank. Ensure that current for charge and discharge is limited to 100A for the complete bank no matter how many batteries are used.
12.8V 1.2KWH
• High Cycle Life and Service Life - 3500cycles @ 80% DOD
• High Performance Lithium battery
• Internal Battery Management System
• Excellent high temperature performance
• High energy density and conversion efficiency
• Can be configured in 12V, 24V, 36V or 48V in series
• Easy drop in replacement for old lead acid battery installs
• BMS protects internal cells and ensures smooth operation
• Compatible with most UPS & Inverters using AGM/VRLA charge setting
• Built-in protection for over-charge, over-discharge & over-temperature
• External cell balancer required when placing in series to ensure balancing
• Perfect replacement Lithium solution for upgrading your lead acid installation
Technical Specs:
Rated Capacity (5HR): 100Ah
Nominal Voltage: 12.8 V
Max. Charging Current: 100A
Max. Continuous Discharging Current: 100A
Cell C Rating: 1.0C
Weight: Approx. 10.5kg
Configuration: 4 in series with 4 banks in parallel for maximum 16 batteries
Parallel: Parallel connection is up to 4 strings
Dimensions (W x D x H): 305mm x 170mm x 220 mm
Maximum DC Limits: Maximum 100 Amp Charge per bank & 100 Amp discharge per bank
Cells: 1st LiFe Prismatic LiFePO4
Design Life: +/- 15 years
Cycle Life @ 1C: +/- 3500 Cycles @ 80% DOD
Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: Black Polypropylene Plastic
Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
IP Rating: IP65
