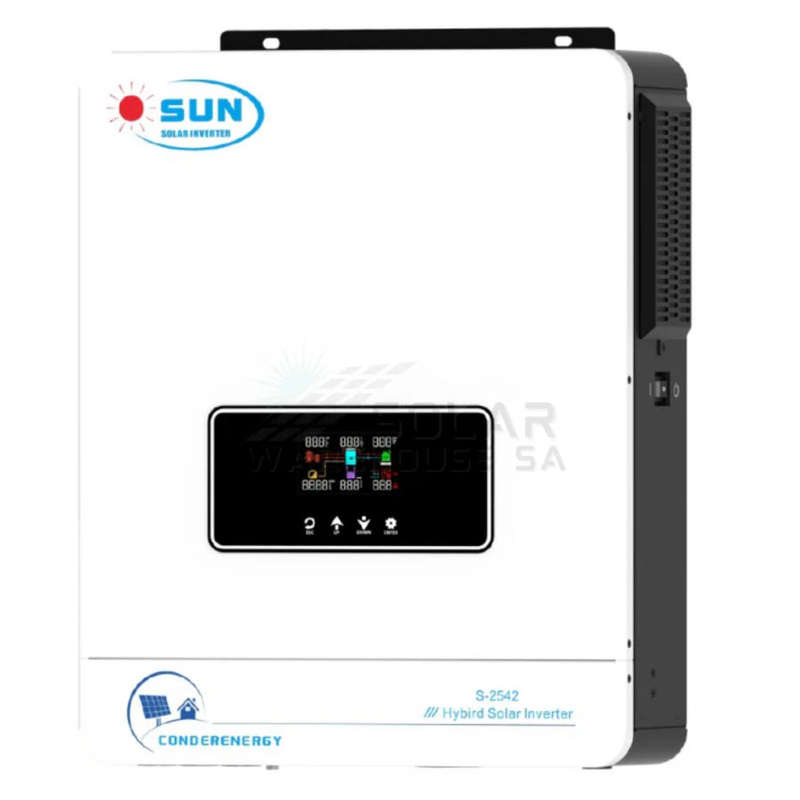

HYBRID INVERTER 24V 4.2 KVA 4200W MPPT 120A INVERTER PURE SINE WAVE SUN SOLAR S-2542

Hybrid Inverter 24v 4.2 Kva 4200w MPPT 120A Inverter Pure Sine Wave Sun SolarFeaturesSingle Phase Operation: 1-phase operation for PV input.High Efficiency: Up to 98% DC to AC conversion efficiency.Pure Sine Wave Output: Ensures clean power output.Wide MPPT Voltage Range: 60VDC to 450VDC.Multiple Communication Ports: RS232, RS485, WIFI, GPRS, Lithium battery interface.Supports Dual Load Output: Can handle two separate load outputs.Auto Restart and Start-up Voltage: Automatically restarts and supports specified start-up voltages.SpecificationsPV Input (DC)Pure sine wave solar inverter (on/off Grid)Output power factor 1.0Wi-Fi & GPRS available for IOS & AndroidThe inverter can run without a batteryOne-key restoration to factory settingsDual communication ports for battery communication & Wi-Fi communicationBuilt-in 120A MPPT Solar Charge: Max 6200wHigh PV input voltage range (60-500VDC)Built-in anti-dust kit for harsh environmentsSmart battery charge design to optimize battery lifeDual outputMaximum PV Input Power: 6200WNominal DC Voltage/Maximum DC Voltage: 360VDC/500VDCStart-up Voltage / Initial Feeding Voltage: 60VDC/90VDCMPPT Voltage Range: 60VDC to 450VDCMaximum Input Current: 1/18AGrid Output (AC)Rated Output Power: 4200W/4200VANominal Output Voltage: 220/230/240VACOutput Voltage Range: 195.5V to 253VACNominal Output Current: 18.2APower Factor: >0.99Maximum Conversion Efficiency (DC/AC): 98%Battery Mode Output (AC)Nominal Output Voltage: 220/230/240VACOutput Waveform: Pure sine waveEfficiency (DC to AC): 94%AC InputAC Start-up Voltage / Auto Restart Voltage: 120-140VAC/180VACAcceptable Input Voltage Range: 90-280VAC or 170-280VACMaximum AC Input Current: 30AMaximum AC Charging Current: 30APhysical Dimensions420mm x 350mm x 110mm500mm x 415mm x 180mmNet Weight: 8.0kg / 8.9kgGross Weight: 9.0kg / 10.0kgEnvironmentOperating Temperature: -10°C to 50°CHumidity: 5% to 95% Relative Humidity (Non-condensing)Battery & ChargerNominal DC Voltage: 24VDCMaximum Solar Charging Current: 140AMaximum AC Charging Current: 100AMaximum Solar+AC Charging Current: 140ACommunication PortAvailable Ports: RS232/RS485/WIFI/GPRS/LITHIUM BATTERYTwo-Load Output PowerFull Load: 1400WMaximum Main Load: 4200WMaximum Second Load (battery mode): 1400WMaximum Load Cut Off Voltage: 26VDCMaximum Load Return Voltage: 27VDCCompliance and StandardsSafety: CE Standard Compliance1-Year Repair WarrantyWarranties:All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
