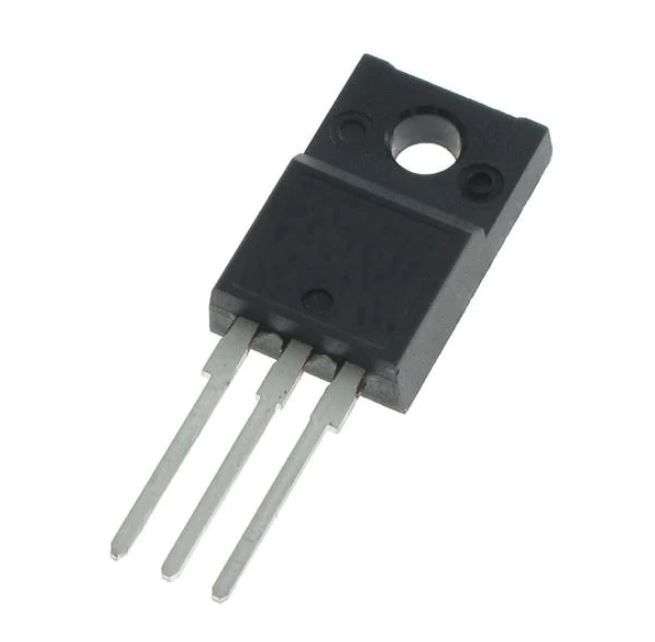

Infineon (SPA08N80C3XKSA1) Power MOSFET, N Channel, 800 V, 8 A, 0.65 ohm

Power MOSFET, N Channel, 800 V, 8 A, 0.65 ohm, TO-220FP, Through HoleProduct OverviewThe SPA08N80C3 is a 800V CoolMOS N-channel Power MOSFET features ultra-low gatecharge. It is suitable for solar, PC Power and adapter applications.New revolutionary high voltage technologyExtreme dV/dt ratedPeriodic avalanche ratedQualified according to JEDEC for target applicationsUltra low effective capacitanceFully isolated packageImproved transconductanceLow specific ON-state resistanceField proven CoolMOS qualityVery low energy storage in output capacitance (Eoss)@400VHigh efficiency and power densityOutstanding performanceHigh reliabilityEase of useApplicationsIndustrial, Power Management, Alternative Energy, Consumer ElectronicsProduct InformationChannel Type: N ChannelTransistor Polarity: N ChannelContinuous Drain Current Id: 8ADrain Source Voltage Vds: 800VDrain Source On State Resistance: 0.65ohmOn Resistance Rds(on): 0.65ohmRds(on) Test Voltage: 10VTransistor Mounting: Through HoleGate Source Threshold Voltage Max: 3VPower Dissipation Pd: 40WTransistor Case Style: TO-220FPPower Dissipation: 40WNo. of Pins: 3PinsOperating Temperature Max: 150°C
