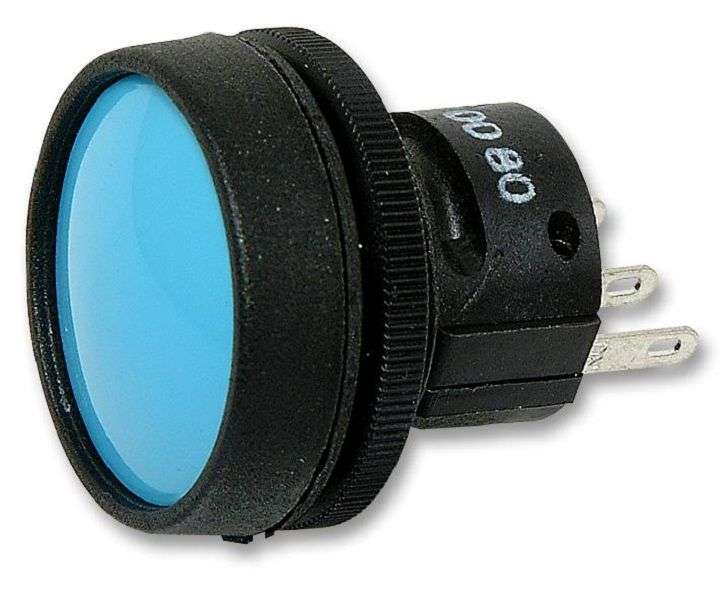

Itw Switches (76-9114/439088) Industrial Pushbutton Switch, 76-91, 22.5 mm

Industrial Pushbutton Switch, 76-91, 22.5 mm, SPDT, Momentary, Round Domed, BlueProduct InformationPushbutton Switch Type: IndustrialProduct Range: 76-91Panel Cutout Diameter: 22.5mmContact Voltage AC Nom: 250VContact Configuration: SPDTContact Voltage DC Nom: 5VSwitch Operation: MomentaryPushbutton Actuator Style: Round DomedContact Current Max: 10AActuator / Cap Colour: BlueContact Current AC Max: 10AContact Voltage VAC: 250VContact Current DC Max: 10mAContact Voltage VDC: 5VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Quick Connect, SolderIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe 76-91 series robust Pushbutton Switch designed for demanding environmentalapplications. The snap action switch mechanism provides high quality switchingbehind an ice-proof, flexible actuator. The range offers the choice of sixbutton colours with solder/quick connect terminals as standard. Single anddouble pole versions are available in momentary or alternate actions. A locknutand sealing washer are supplied with the switch.IP67 Protection ratingUL94-V0 Flammability ratingHigh dielectric strengthRobust constructionPositive tactile response2-pole versionAlternate action versionPCB terminalsGold contactsFully sealed with flying leadsApplicationsIndustrial
