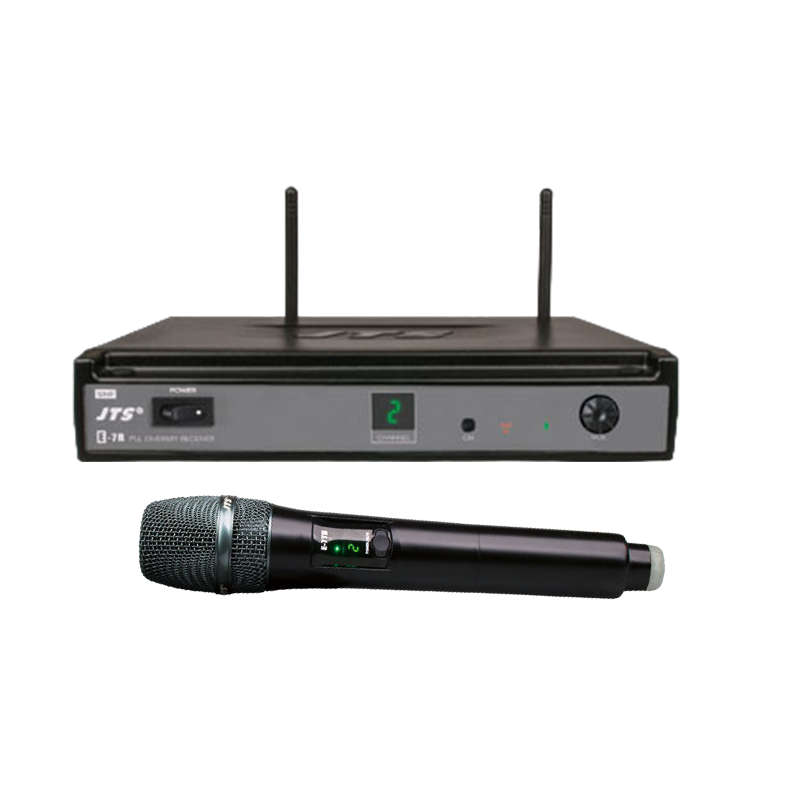

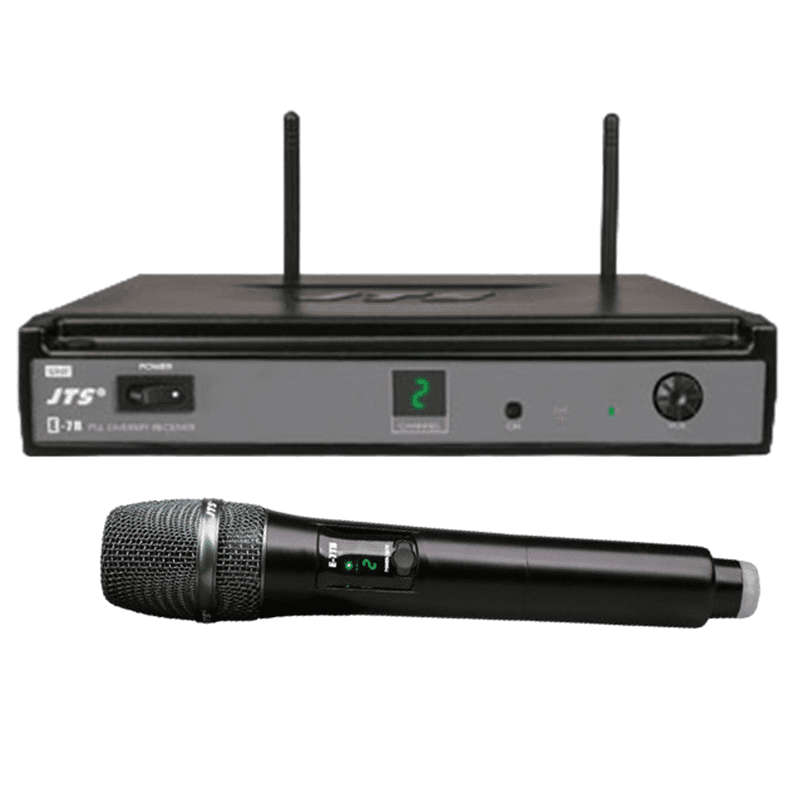

JTS E-7R/E-7TH HANDHELD MICROPHONE DIVERSITY UHF 518-542MHz

The E-7R wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The wireless microphone system is ideal for the budget conscious consumer.

Frequency Preparation: PLL Synthesized Control

Carrier Frequency Range: 518~512 MHz

S/N Ratio : >100dB

T.H.D.: <0.6%@1KHz

Display Contents: Channel, RF/AF Status

Controls: Power On/Off, Channel Selecting, Audio Level

Audio Output Level: -15dB(br)
AF Output Impedance: 600

Squelch: Pilot Tone & Noise Mute

Operation Voltage: 12V 150mA (E-7R) / 12V 250mA (E-7Du)

Output Connector: 1 Ø6.3mm balanced phone jack

Dimension (mm): 210mm(W)* 40mm(H)* 170mm(D)

Frequency Preparation: PLL Synthesized Control

Stability: Frequency <±10KHz

Deviation:: ±48KHz (Peak)

Display Contents: Channel, Battery Status, Power On/Off, Mute

Controls: Power On/Off, Channel, Mute

Spurious Emissions: <-50 dBC

Audio Frequency Response: 50Hz~18KHz

Battery: UM3, AA Alkaline x2
