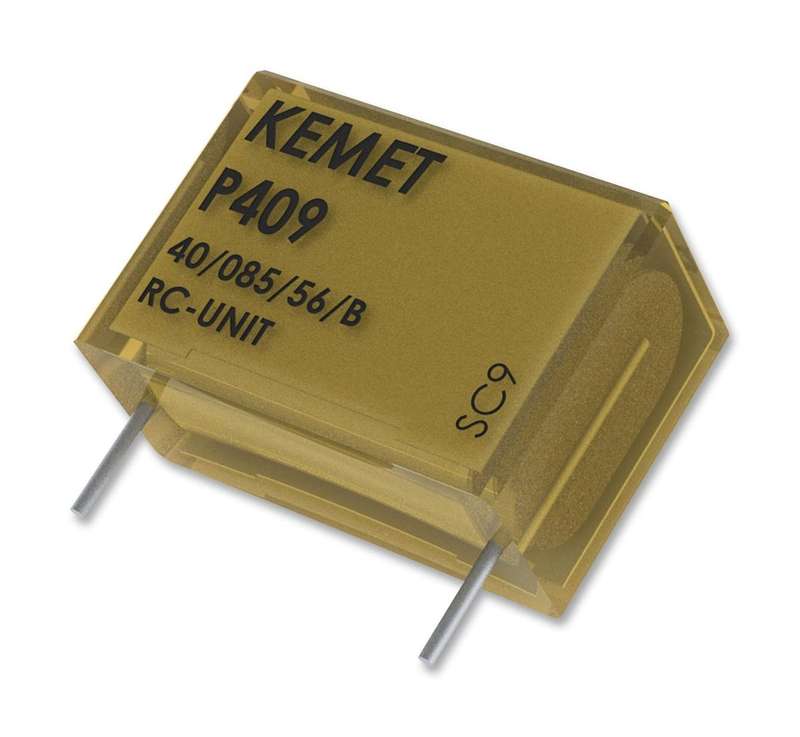

Kemet (P409CE104M275AH101) Safety Capacitor, 0.1 µF, ± 20%, X2

Safety Capacitor, Metallized Paper, Radial Box - 2 Pin, 0.1 µF, ± 20%, X2,Through HoleProduct InformationDielectric Type: Metallized PaperCapacitor Case / Package: Radial Box - 2 PinCapacitance: 0.1µFCapacitance Tolerance: ± 20%Suppression Class: X2Voltage Rating Y: -Capacitor Mounting: Through HoleCapacitor Dielectric Type: Paper (MP)Voltage Rating X: 275VACdv/dt Rating: -Humidity Rating: GRADE II (Test Condition A)Lead Spacing: 20.3mmOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: P409 SeriesSeries Name: P409Qualification: -Product OverviewThe P409 Series is constructed of multilayer metallized paper encapsulated andimpregnated in self-extinguishing material meeting the requirements of UL 94V-0.Typical applications include worldwide use in contact protection, contactinterference suppression and transient suppression.Approvals: ENEC, UL, cUL / Rated voltage: 275 VAC 50/60 HzCapacitance range: 0.047 - 0.47 µF / Capacitance tolerance: ±20% / Lead spacing:15.2 - 25.4 mmResistance range: 22 - 470 R / Resistance tolerance: ±30%Climatic category: 40/085/56/B, IEC 60068-1 / Operating temperature range of-40°C to +85°CTape and reel packaging in accordance with IEC 60286-2RoHS Compliant and lead-free terminationsExcellent self-healing properties which ensure long life even when subjected tofrequent over voltagesGood resistance to ionization due to impregnated paper dielectric. / High dV/dtcapabilityImpregnated paper ensures excellent stability and reliability properties,particularly in applications with continuous operationApplicationsSafety, Power Management
