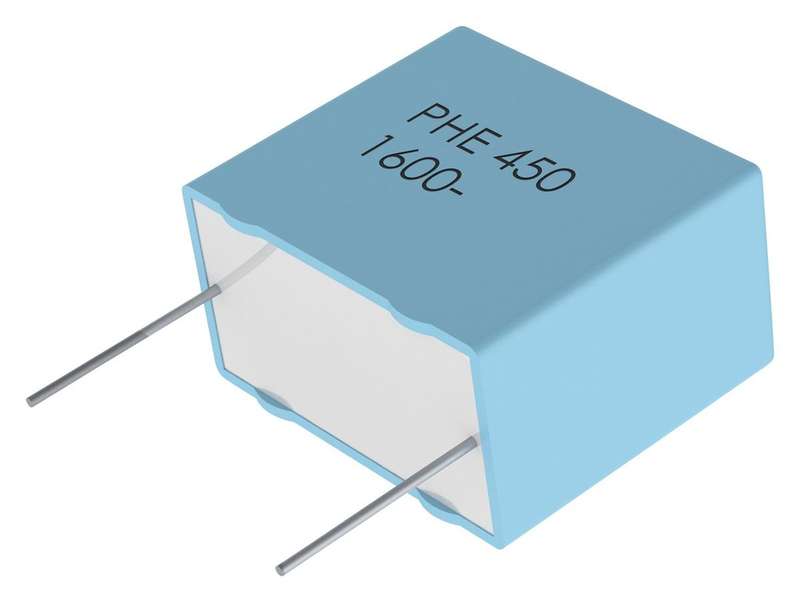

Kemet (PHE450PR7100JR02R06L2) General Purpose Film Capacitor,

General Purpose Film Capacitor, Double Metallized PP, Radial Box - 2 Pin, 1 µF,± 5%, 600 V, 1 kVProduct InformationDielectric Type: Double Metallized PPCapacitor Case / Package: Radial Box - 2 PinCapacitance: 1µFCapacitance Tolerance: ± 5%Voltage(AC): 600VVoltage(DC): 1kVCapacitor Mounting: Through HoleCapacitor Terminals: Radial LeadedHumidity Rating: GRADE II (Test Condition A)Lead Spacing: 37.5mmProduct Length: 41mmProduct Width: 16.5mmProduct Height: 32mmProduct Range: PHE450/F450 SeriesOperating Temperature Min: -55°COperating Temperature Max: 105°CQualification: -Product OverviewThe PHE450 Series is a polypropylene dielectric with double metallized polyesterfilm as electrodes. The capacitor is encapsulated in self-extinguishing resin ina box of material meeting the requirements of UL 94 V-0.Typical applicationsinclude high frequency applications with high current stress such as deflectioncircuits in televisions and protection circuits in switched mode power supply(SMPS) and electronic ballasts.Rated voltage: 250 - 3,000 VDC / 180 - 1,000 VACCapacitance range: 0.00033 - 10 µF / Capacitance tolerance: ±5%, othertolerances on requestLead spacing: 7.5 - 37.5 mmClimatic category: 55/105/56, IEC 60068-1 / Category temperature range of -55°Cto +105°CTape and reel packaging in accordance with IEC 60286-2RoHS Compliant and lead-free terminations
