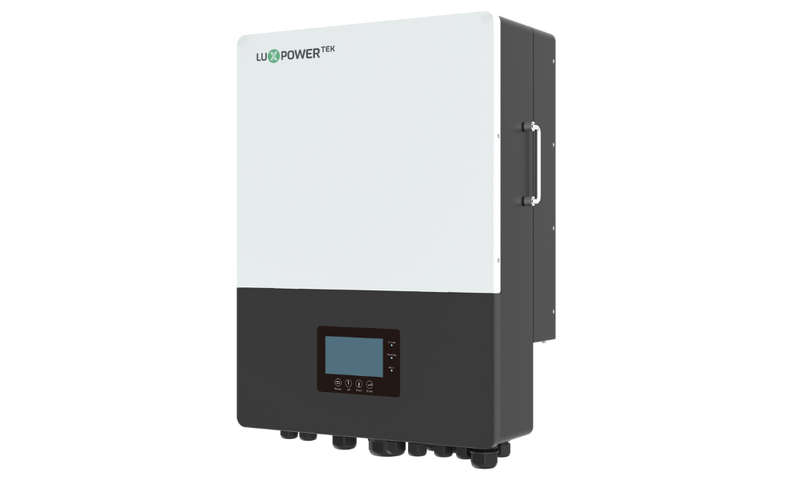

Lux Power: Inverter 12Kw Hybrid Single Phase

Lux Power: Inverter 12Kw Hybrid Single Phase

10 available / new
Indicative market price: R53,581.00
R51,632.60
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller

Product details

Condition
New
Location
South Africa
Product code
SL0133
Bob Shop ID
593173395

Parallel up to 10 Units
Separate Generator Interface Available
AC Coupling Function
Transformerless Design

Battery Parameters
Compatible Battery Type: Lead-acid / Lithium
Nominal Battery Voltage: 48VDC
Battery Voltage Range: 40VDC-60VDC
Maximum Charge / Discharge Current: 250A
Maximum Charge / Discharge Power: 12 000W

DC PV Input
Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
Maximum PV Input: 18 000W
DC Input Voltage Range: 100VDC-600VDC
Nominal DC Input Voltage: 360VDC
Full Power MPPT Voltage Range: 230VDC-500VDC
Maximum DC Input Current: 25A / 15A / 15A
MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)
Nominal Power: 12 000W
Nominal AC Voltage: 240VAC
Operating Voltage Range: 180VAC-270VAC
Maximum Continuous AC Current: 50A @ 240VAC
Nominal AC Frequency: 50Hz / 60Hz

UPS Output (With Battery)
UPS Max Output Power: 12 000W
UPS Nominal Output Voltage: 240VAC
UPS Nominal Output Frequency: 50Hz / 60Hz
UPS Nominal Output Current: 50A @ 240VAC
Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
Switching Time: <20ms

Environment Limit
Ingress Protection: IP65
Operating Temperature Range: -25°C to +60°C
Cooling: Fan
Communication: RS485 / WIFI / CAN
