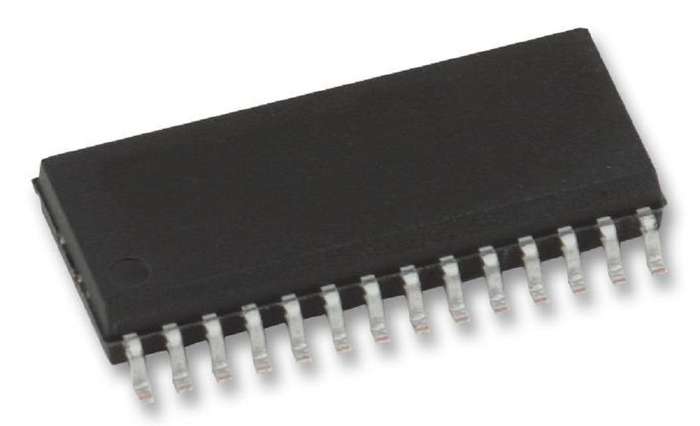

Maxim Integrated (MAX211EEWI+) Transceiver RS232, 4.5V-5.5V supply

Product OverviewThe MAX211EEWI+ is a TTL tri-state ±15KV ESD protected, +5V RS232 transceiver in28 pin WSOIC package. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM(Human Body Model) protection and integrated charge pump circuitry for single 5Vsupply operation. This transceiver meets all EIA/TIA232E and CCITT V.28specifications at data rate up to 120Kbps when loaded. The device is typicallyused in battery powered equipment.Four drivers and five receiversSupply voltage range from 4.5V to 5.5VOperating temperature range from -40°C to 85°CSupply current is 14mAFour 0.1µF external capacitorsShutdown supply current is 1µA to save power for reduced power requirementSaves board spaceApplicationsCommunications & Networking, Portable Devices, MedicalProduct InformationDevice Type: TransceiverIC Interface Type: RS232No. of Drivers: 4DriversNo. of Receivers: 5ReceiversSupply Voltage Min: 4.5VSupply Voltage Max: 5.5VDriver Case Style: WSOICNo. of Pins: 28PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - UnlimitedIC Generic Number: MAX211E
