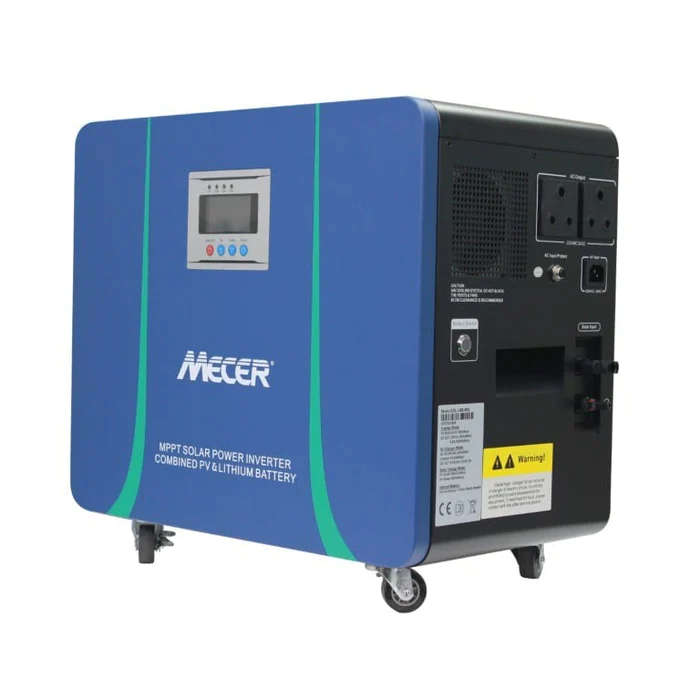

Mecer 2kVA 2kW Lithium Battery Inverter Trolley with 100Ah Lithium-ion Battery and 820W MPPT Controller SOL-I-BB-M2L
Introducing the Mecer Energy Generation and Storage System, the perfect solution for managing energy in your home. This all-in-one device integrates a pure sine wave inverter and a Lithium-ion LifePO4 battery into a compact and stylish design, offering a cost-effective and self-sufficient way to store excess energy.
With its user-friendly features, the Mecer Energy Storage System makes energy management effortless. Enjoy a 2000-cycle LifePO4 battery, and three operation modes that can be easily configured based on your needs. The system automatically turns on the LifePO4 battery during power outages and offers convenient USB and DC output ports. The MPPT Controller improves charging efficiency by over 20% and protects the battery from overcharge and discharge.
Mecer offers a solution for homeowners who want to store excess solar or mains energy during the day to power their home day and night. Its Lithium-ion battery is lighter than lead-acid batteries and boasts a compact and elegant design. The system offers three operation modes that can be configured based on energy management needs, including user-programmable PV power supply priority and charging source priority.
Safety and reliability are key components of the Mecer Storage System, with its intelligent exhaust fan control and overall automatic protection and alarms, including AC output overload protection and short circuit protection. Upgrade to the Mecer Storage System today and experience effortless energy management in your home.
Connects to solar or mains to power devices during power outages.
Features:
- Pure sine wave output
- 2000 cycles lifePO4 battery
- Mains supply mode, Battery mode
- 5VDC USB 2.0 ports
- 12VDC output ports
- MPPT solar charge controller
- Over charge protection as well as over discharge protection
- Intelligent exhaust fan
Technical Specification
Rated Power: 2 000VA / 2 000W
Input
- Voltage range: 170 - 275V
- Mains charging current: 10A
- Frequency Range: 45-65Hz
Output
- Voltage: 230V AC
- Frequency: 50/60Hz
- Output wave form: Pure Sine Wave
Battery
- Battery Voltage: 25.6V DC
- Battery capacity: 1X 100Ah
- Battery cycle life: 2 000 Cycles @ DOD 80%
Solar Charger
- Solar Charge Type: MPPT
- Maximum PV Array Power: 840W
- Number of MPPTs: 1
- MPPT Range @ Operating Voltage: 35 - 100V DC
- Maximum Solar Charge Current: 30A
- Floating Charge Voltage: 28.4V DC
DC Output
- Low Voltage Recovery: 26.8V DC
- Low Voltage Protection: 22.4V DC
- 5V DC USB Output: 2 Pcs 5V DC, USB 2.0, Max 2A
- 12V DC Output Ports: 2 Pcs Max 2A
Physical
- Heat Dissipation / Cooling: Intelligent exhaust fan (Temperature controlled)
- Dimensions W X D X H (mm): 480 X 192 X 410
- Package size W X D X H (mm): 527 X 277 X 475
- Net Weight (kgs): 45 kg
- Gross Weight (kgs): 48 kg
