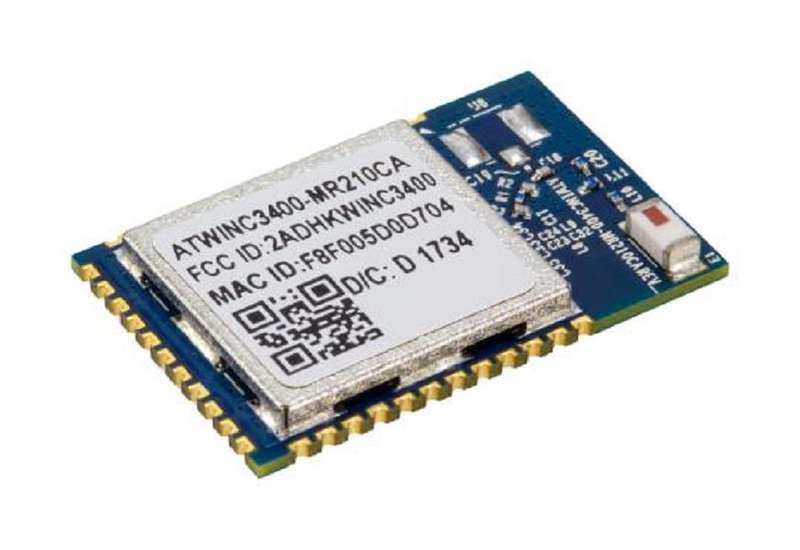

Microchip (ATWINC3400-MR210CA131) Bluetooth Module, BLE 5.0, 72.2 Mbps

Bluetooth Module, BLE 5.0, 72.2 Mbps, 3 V to 4.2 V, -90 dBm, -40 °C to 85 °CProduct OverviewATWINC3400-MR210CA is an IEEE 802.11 b/g/n RF/Baseband/Medium Access Control(MAC) network controller with Bluetooth Low Energy module. TheATWINC3400-MR210xA modules are Bluetooth 5.0 certified. This module is optimizedfor low power and high performance mobile applications. This module featuressmall form factor with integrated power amplifier, low-noise amplifier,transmit/receive switch (for Wi-Fi® and Bluetooth) and power management unit.Integrates chip antennaIEEE 802.11 b/g/n 20MHz (1x1) Wi-Fi plus Bluetooth 5Network features: TCP, UDP, DHCP, ARP, HTTP, SSL, and DNSSupported security protocol: WPA/WPA2 Personal, WPA2 Enterprise (firmware v.1.31or later), TLS, SSLSingle spatial stream in 2.4GHz ISM bandIntegrated PA and T/R switchSuperior sensitivity and range via advanced PHY signal processingOperating temperature range from -40°C to +85°CIntegrated network IP stack to minimize host CPU requirementsClass 2 transmission and adaptive frequency hoppingProduct InformationBluetooth Version: Bluetooth 5.0Supply Voltage Min: 3VSupply Voltage Max: 4.2VSignal Range Max: -Data Rate: 72.2MbpsBluetooth Class: -Receive Sensitivity: -90dBmOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -
