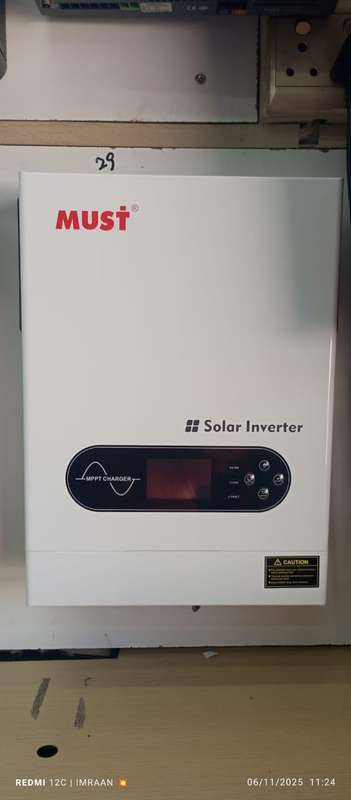

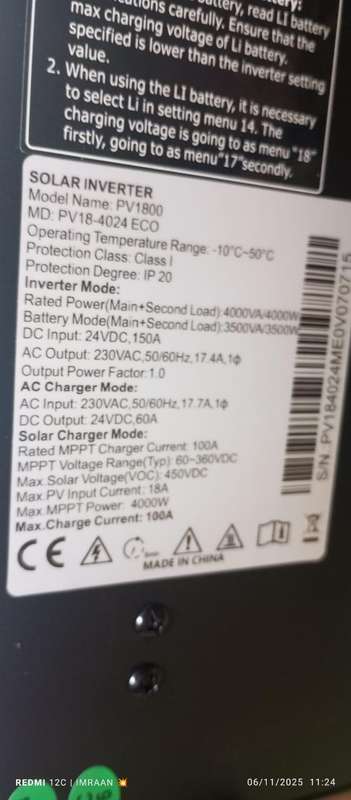

MD: PV18-4024 ECO
Operating Temperature Range: -10°C-50°C
Protection Class: Class 1
Protection Degree: IP 20
Inverter Mode:
Rated Power(Main+Second Load) 4000VA/4000W
Battery Mode(Main+Second Load):3500VA/3500W
DC Input: 24VDC, 150A
AC Output: 230VAC, 50/60Hz, 17.4A, 1
Output Power Factor. 1.0
AC Charger Mode:
AC Input: 230VAC, 50/60Hz, 17.7, 1
DC Output: 24VDC, 60A
Solar Charger Mode:
Rated MPPT Charger Current: 100A
MPPT Voltage Range (Type): 60-360VDC
Max Solar Voltage (VOC): 450VDC
Max PV Input Current: 18A
Max MPPT Power: 4000W
Max. Charge Current: 100A
Key Features:
Hybrid Functionality: It can work with solar panels, batteries, and the grid, or operate independently.
MPPT Technology: Maximizes the energy harvest from solar panels.
Multiple Protection: Includes overload, short circuit, and deep discharge protection.
Cold Start Function: Enables the inverter to start up without a grid connection.
Monitoring Capabilities: Offers USB, RS485, and CAN monitoring functions.
Compatibility: Can work with generators and is compatible with BMS communication for smart battery packs (CAN Port).
User-Configurable Settings: LCD display allows for customization of parameters like battery charging current and AC/solar charger priority.
