NavaSolar PH1800 10KW 48V Hybrid Solar Inverter 80A MPPT NV-MH10048

Description

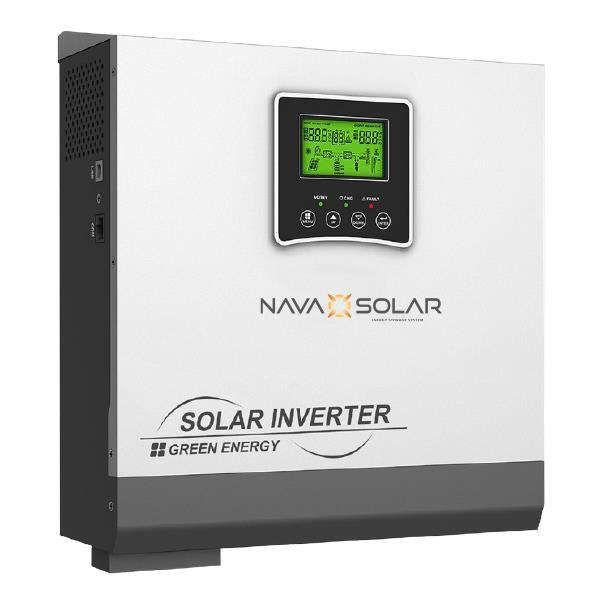

Navasolar PH1800 10KW 48V Hybrid Solar Inverter 80A MPPT - Included Wifi Dongle
Hybrid Solar Inverter
MH Series

Enjoy The Solar Powered Green Life With Navasolar Offgrid Inverter

Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

Specifications
Model: MV-MH10048
Nominal Battery System Voltage: 48VDC
Parallel Capability: No
Operation Without Battery: No

Inverter Output
Rated Power: 10 000W
Surge Power: 20 000W
Wave form: Pure Sine Wave
AC Voltage Regulation (Batt.Mode): (230VAC) 5%
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (typical)

AC Input
Voltage: 230VAC 5%

Selectable Voltage Range:
170~280VAC (for Personal Computer)
90~280VAC (for Home Appliance)
84~253VAC (VED4105)

Frequency Range: 50Hz/60Hz (Auto sensing)

Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC

Solar Charger & AC Charger
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array Voltage Range: MPPT 60~130VDC
Standby Power Consumption: 2W
Maximum PV lnput Power: 4000Wx2
Maximum Solar Charge Current: 80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 120A
Maximum Charge Current: 280A

Communications
USB/RS232/RS485(optional)

Mechanical Specifications:
Machine Dimensions (HWD)(mm): 355272100
Package Dimensions (HWD)(mm): 390425215
Net Weight (kg): 7.4
Gross Weight (kg): 9.5

Other
Humidity: 5% to 95% Related Humidity (Non-condensing)
Operating Temperature: 0?~50?
Storage Temperature: -15?~60?
