NEO-8M stm32 c51 mcu gps module

NEO-8M stm32 c51 mcu gps module

New 7 available
R317.48
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOD-213
Bob Shop ID
650713313

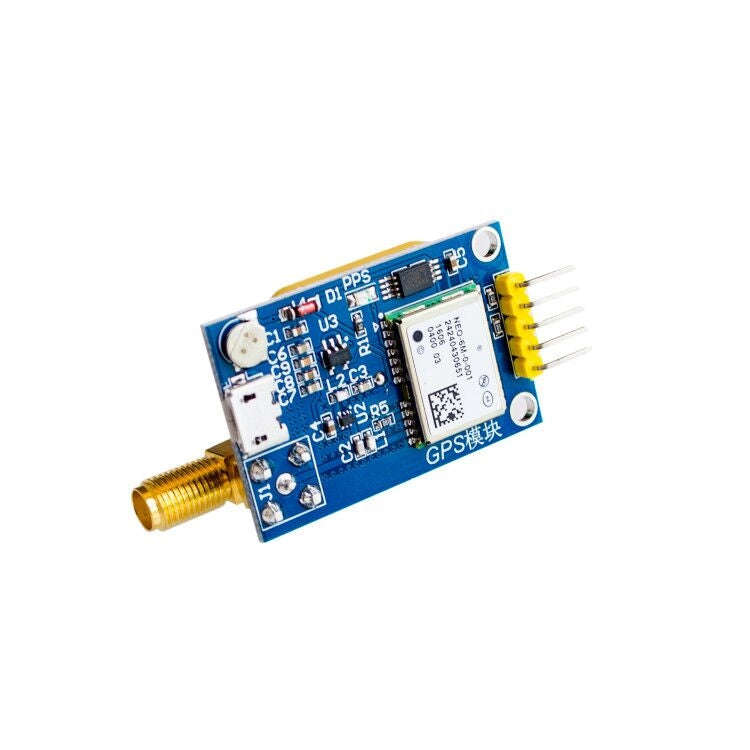

NEO-8M STM32 C51 MCU GPS Module

This GPS module is based on the NEO-8M and can be used for satellite positioning. The module supports NMEA standard protocol output, and built-in FLASH, and can save the setting information after power-off without external EEPROM. This module has an onboard ceramic antenna, which can easily locate the satellite in an open place without an external antenna. It is also welded with an SMA head, which can be used for an external antenna, to make the search positioning ability stronger. When using, you can debug the GPS module using the data cable via the micro USB interface. Or through the reserved serial port interface, use USB to serial port modules or external MCU to receive the GPS information.

Receiver type

72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C

Accuracy of time pulse signal

RMS 99%, 30 ns 60 ns

Frequency of time pulse signal

0.25 Hz…10 MHz (configurable)

Dynamics

<4 g

Altitude

50,000 m

Velocity

500 m/s

Velocity accuracy

0.05 m/s

Heading accuracy

0.3 degrees

Datasheet
