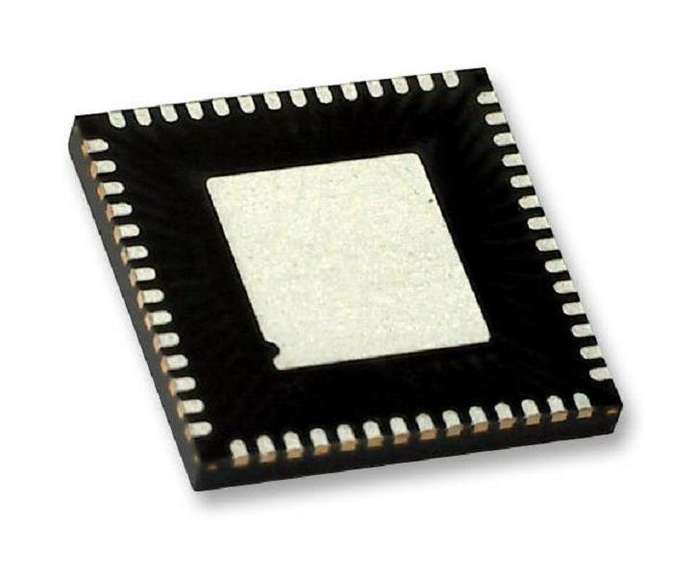

NXP (PTN3460BS/F4Y) Interface Bridges, EDP to LVDS

Product InformationBridge Type: EDP to LVDSSupply Voltage Min: 3VSupply Voltage Max: 3.6VInterface Case Style: HVQFNNo. of Pins: 56PinsOperating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 3 - 168 hoursGeneral descriptionPTN3460 is an (embedded) DisplayPort to LVDS bridge device that enablesconnectivitybetween an (embedded) DisplayPort (eDP) source and LVDS display panel. Itprocessesthe incoming DisplayPort (DP) stream, performs DP to LVDS protocol conversionandtransmits processed stream in LVDS format.PTN3460 has two high-speed ports: Receive port facing DP Source (for example,CPU/GPU/chip set), Transmit port facing the LVDS receiver (for example., LVDSdisplaypanel controller). The PTN3460 can receive DP stream at link rate 1.62 Gbit/s or2.7 Gbit/s and it can support 1-lane or 2-lane DP operation. It interacts withDP source viaDP Auxiliary (AUX) channel transactions for DP link training and setup.It supports single bus or dual bus LVDS signaling with color depths of 18 bitsper pixel or24 bits per pixel and pixel clock frequency up to 112 MHz. The LVDS data packingcan bedone either in VESA or JEIDA format. Also, the DP AUX interface transports2C-over-AUX commands and support EDID-DDC communication with LVDS panel. Tosupport panels without EDID ROM, the PTN3460 can emulate EDID ROM behavioravoiding specific changes in system video BIOS.PTN3460 provides high flexibility to optimally fit under different platformenvironments. Itsupports three configuration options: multi-level configuration pins, DP AUXinterface, and2C-bus interface.PTN3460 can be powered by either 3.3 V supply only or dual supplies (3.3 V/1.8V) and isavailable in the HVQFN56 7 mm ? 7 mm package with 0.4 mm pitch.
