Panasonic (AQV251) MOSFET Relay, 40 V, 500 mA, 1 ohm, SPST-NO

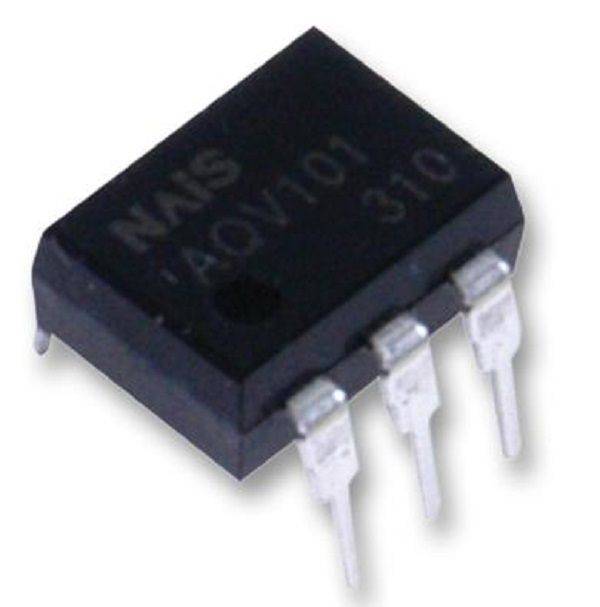

Product Information:Contact Configuration: SPST-NOContact Form: SPST-NO (1 Form A)Load Current: 500mALoad Type: AC / DCLoad Voltage Max: 40VMOSFET Relay Package Style: DIP-6On State Resistance Max: 1ohmRelay Mounting: Through HoleIsolation Voltage: 1.5kVForward Current If: 900µARelay Terminals: PC PinI/O Capacitance Typ: 1.3pFOff State Leakage Current Max: 1µAProduct Range: PhotoMOS AQV25Product Overview:The AQV251 is a 1-pole HE PhotoMOS Relay with I/O isolation voltage of 1500VAC.DIP (1 form-A) 6-pin type. Through hole terminal. Controls various types ofloads such as relays, motors, lamps and solenoids. Eliminates the need for apower supply to drive the power MOSFET A power supply used to drive the powerMOSFET is unnecessary because of the built-in optoelectronic device. Thisresults in easy circuit design and small PC board area.High sensitive and low-on resistanceLow-level off state leakage currentApplications:Industrial, Communications & Networking, Test & Measurement
