Smart Life Tuya WIFI 2CH Bidirectional Mini Power Monitor Clamp Meter | 240V | 80A | Single Phase

Welcome to Smart Home Automation.

The smart 2CH Bidirectional Mini Power Monitor Clamp Meter provides the perfect intelligent power Monitoring of your Smart Home or workplace.

View energy Consumption Data on the app to correctly track the energy usage around your home. Know which devices consume the most energy, and plan to save energy and electricity bills.

This Basic Power Energy Monitor is used for monitoring Energy consumption from your Mobile Smartphone via the Tuya/ Smart Life App from anywhere in the world.

All you need is Our Smart Home Devices, Wi-Fi with constant Internet, and Electricity to power the Device. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;

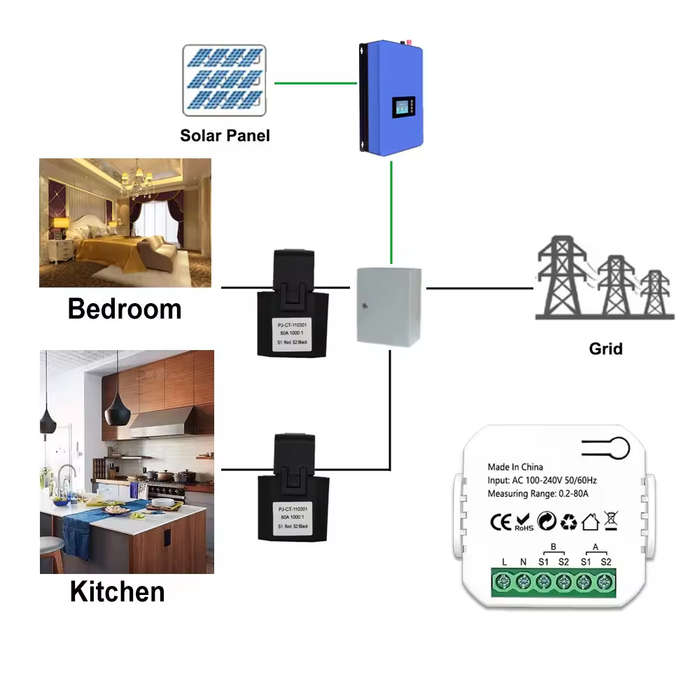

Monitor Power Electricity usage of the whole house or Appliances connected to the device.
Can Monitor Forward & Reverse Energy Consumption.
Real-time monitor of Voltage, Current(mA), Power wattage, and Total Kilowatt Hours including Daily (Per Hour), Monthly (Per day), Yearly (Per month), and total KWh view.
Create an automation and get alerted via Notification on your Mobile Smartphone within seconds if a certain Voltage / Current is reached.
It can be used to Monitor any appliance under 17600W (80A) Max.

In-App Features;
View Total Forward and Reverse power consumption.
View Real-time Voltage, Frequency & Total Power.
Channel A/B: View Real-time Power Factor, Current (Amps), Power wattage, and total Forward and Reverse consumption for the channel.
Energy Monitor: View Daily (Per Hour) / Monthly (Per day) / Yearly (Per month) and total KWh view per channel and total for both channels.
Calibration settings should all be 1.000 or it will auto-set.
Report rate control is how frequently data should be sent to the app.

Specifications;
Electrical Voltage: AC100V-240V.
For Single Phase Power Only.
Power Measuring Range: 0.2A to 80A | Up to 17600W 17.6KW (80A) Max.

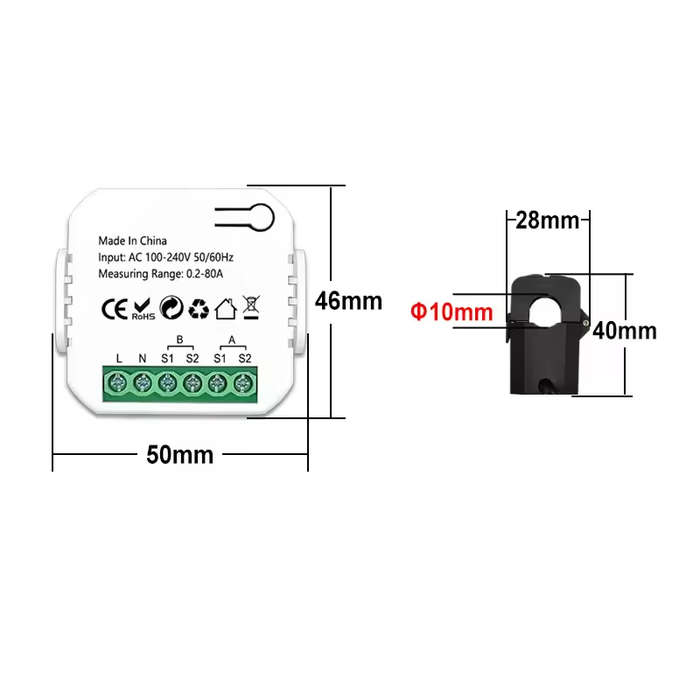

Clamp Diameter size for Wire cables up to 10mm.
Can be mounted on a 35mm DIN Rail.
This Device Only Measures real-time and total energy consumption.

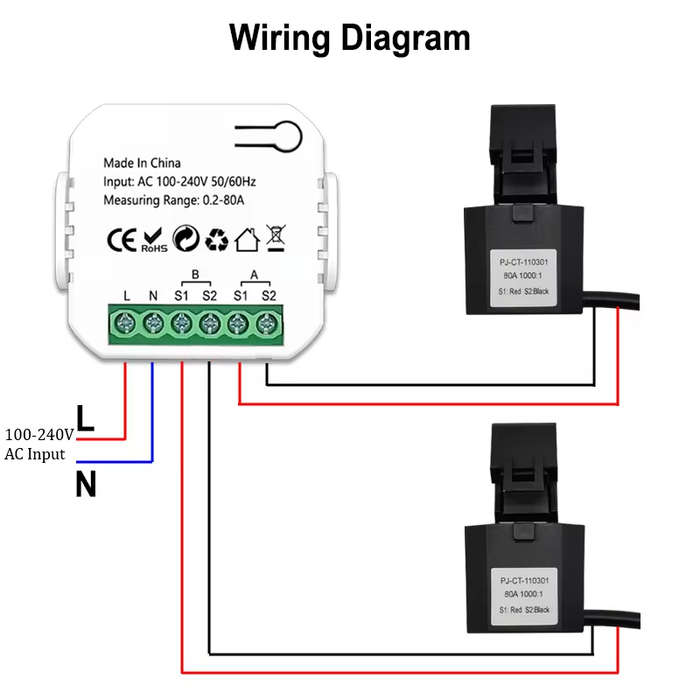

The clamp must be connected directly to only the Live wire as per the diagram picture.
Please note that Data cannot be extracted from the app. You can only view the data on a per-hour, per-day, or per-month Basis on the app.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Color: White.
Dimensions: Box: 100 x 84 x 40mm
Weight: 163g.

What's in the Package;
1 x Tuya WIFI 2CH Bidirectional Mini Power Monitor Clamp Meter | 240V | 80A | Single Phase.
2 x 80A Clamp w/ 70cm cable.
1 x User Manual.
