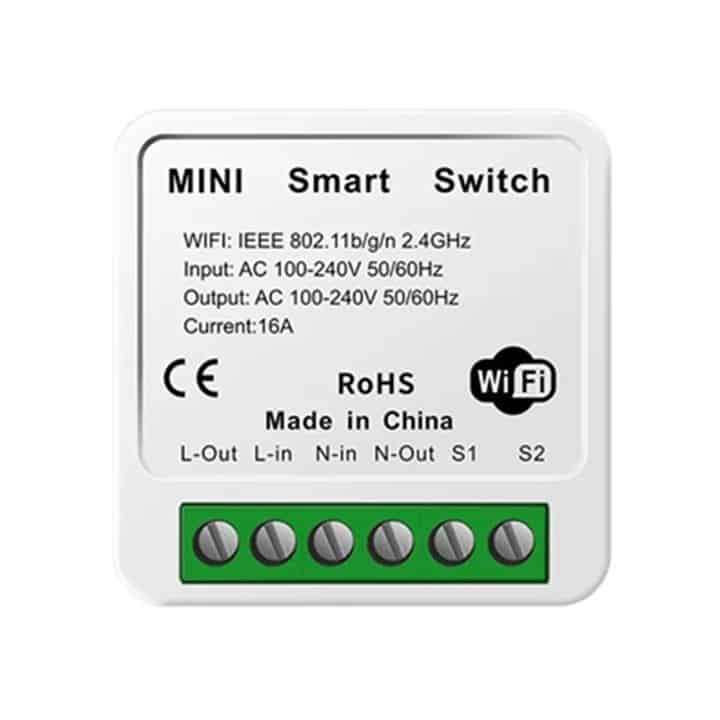

This Smart Mini Switch 16A can be used to make any device or appliance that uses a mains input of 230V smart. Simply 'wire, configure & play'.

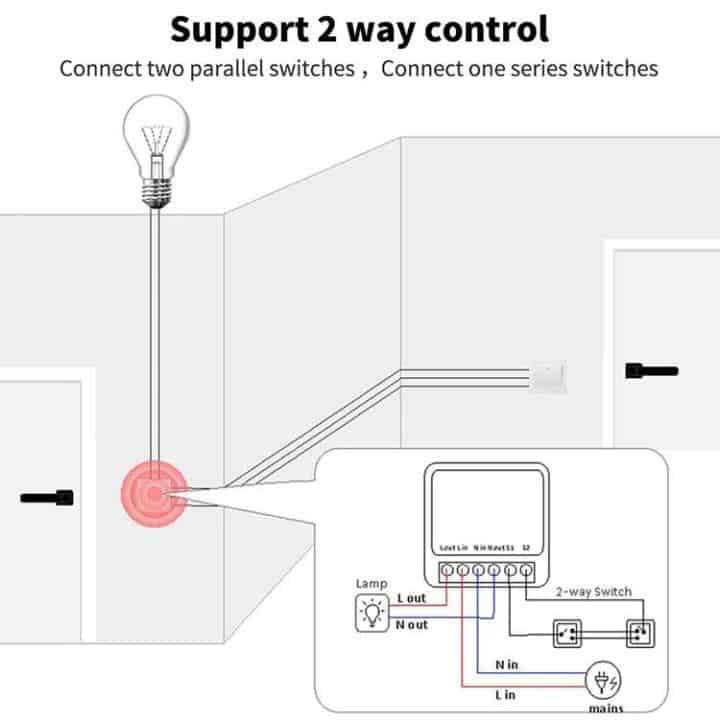

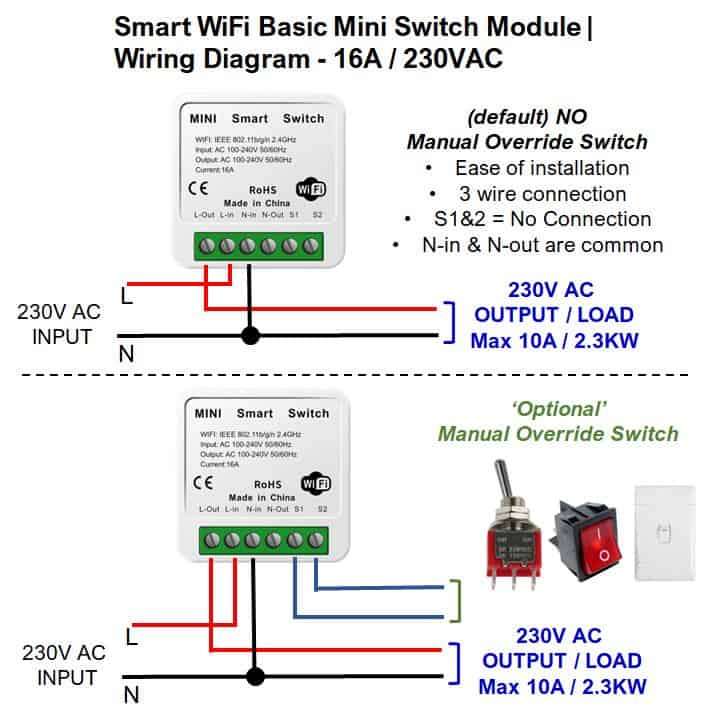

The unit also includes a 'manual switch override' feature if you require both a smart & manual switch. The wiring of this feature is optional & means that both the smart & manual switching will override each other. See additional images for the wiring diagram.
Simply 'Wire, Configure & Play'.
Home automation is made smart, simple & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa, Google Home & IFTTT.
Product Features
- Small & compact design medium current. Wire, configure & play
- Activation dates, days of the week, start time & duration can all be pre-configured via the Smart Life application giving you complete remote control & on/off overwrite.
- Supports voice commands & also AI units such as Amazon Alexa Echo & Google Home solution.
- All your Smart Devices are connected via a single stable platform the Smart Life app from Tuya.
Typical Uses (but not limited to)
- Perfect 'smart upgrade' to any existing standard wall plugs & sockets - fits behind the switch.
- Smart switching of any device or appliance that requires a current of 16A (3.6kW max).
- Can also be 'built-in' to any existing wall socket.

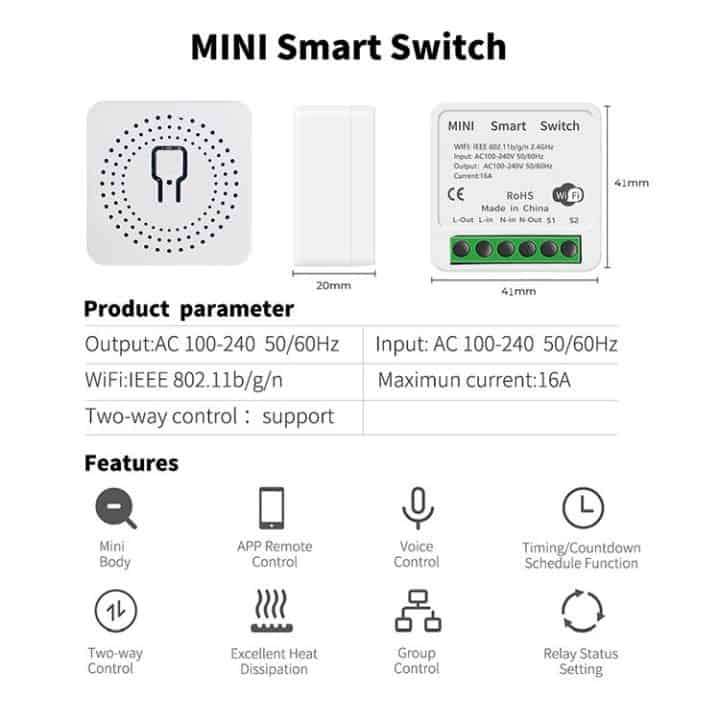

Specifications
- Input voltage: 100-240VAC, 50/60Hz
- Output voltage: 100-240VAC, 50/60Hz
- Power rating: 1 x 16A, max, 3.6kW
- Product dimensions：41 x 41 x 20(L x H x W in mm). Fits in the space behind your existing light switch.
- Material: PC
- Wireless frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating temperature: -10ºC to +50ºC
What's in the Box?
1x Smart Mini Switch 16A
1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home automation is made smart, simple & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa Echo Dot, Google Home & IFTTT & more...
