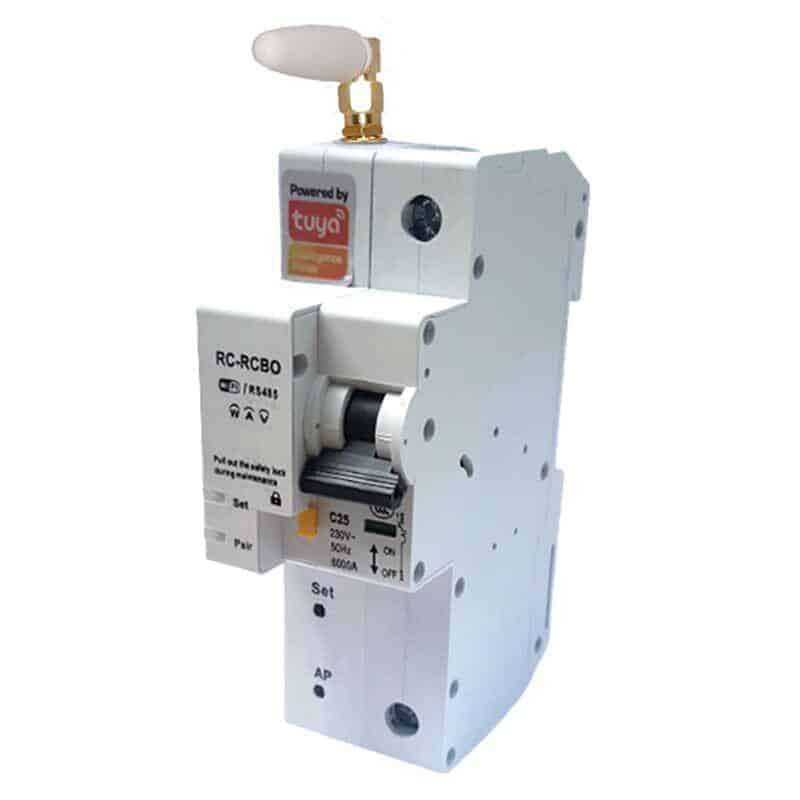

Smart Switch Circuit Breaker 25A,1 Pole + Power Energy Monitoring WAV | WiFi Tuya Smart Life
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Smart Switch Circuit Breaker, WiFi Wireless 1 Pole Isolator with Energy Consumption Monitoring (KWh). Control & Monitor your energy consumption/ usage via KWh logging. MCB can be used to make any home, office or factory 230V Smart. Control any high current device remotely via your phone from any location. Allows for both 'smart switching' and manual operation and includes a safety switch.
Available in the following ratings(all 230VAC) 16A, 20A, 25A (this item), 32A, 40A, 63A, 80A, 100A & 125A. Should we not have your requirement in stock please contact us.
Simply, '*Wire, Configure and Play'.
Detailed Specifications [click here] to download (in image format use zoom function).
Note:
- This MCB supports DIN rail Mounting. For Samite Breaker connections you will need an adaptor [click here].
- This MCB DOES support Power Consumption / Energy Monitoring. (to view our range of Smart MCB's [click here])
- Can be configured via the App's 'automation feature' to disconnect when certain smart sensors or detectors are activated such as Smoke, CO2, flood or intrusion etc.
- *qualified Electrician is required.
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Product Features
- Monitors your overall electrical consumption and reports it to the SmartLife app.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal.
- Energy Consumption Monitoring (KWh) - Yes Supported
Typical Uses (but not limited too)
- Smart Switching of any home or a specific section of factory / office
- Large pumps and or any machinery
- Can be wired to any existing DB or Distribution Board (occupies 3 slots)
Specifications
| Name | 1P Tuya Smart MCB Switch WIFI Circuit Breaker |
| Model | HT-MCB-1PM / VAW or WAV |
| APP | Tuya Smart/SmartLife |
| Input Voltage | AC 230V |
| Output Voltage | AC 230V |
| Number of poles | 1 (one) |
| Rated current | 16A /20A /25A (this product) /32A /40A /63A /80A /100A /125A |
| Rated short-circuit breaking capacity | lcn=6kA lcs=6kA |
| Applicable places | home, office, factory, guest house & shop etc. |
| Switch mode | Switch/Mobile phone |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance/IFTTT |
| Operation Temp. | —25C to +65C |
| Humidity | 5%--95% non-condensing |
| Dimension | Box:10.5*12*11.6cm |
| Weight | 0.36kg |
What's in the Box?
1x Smart 1 Pole Circuit Breaker
1x Instruction Manual
