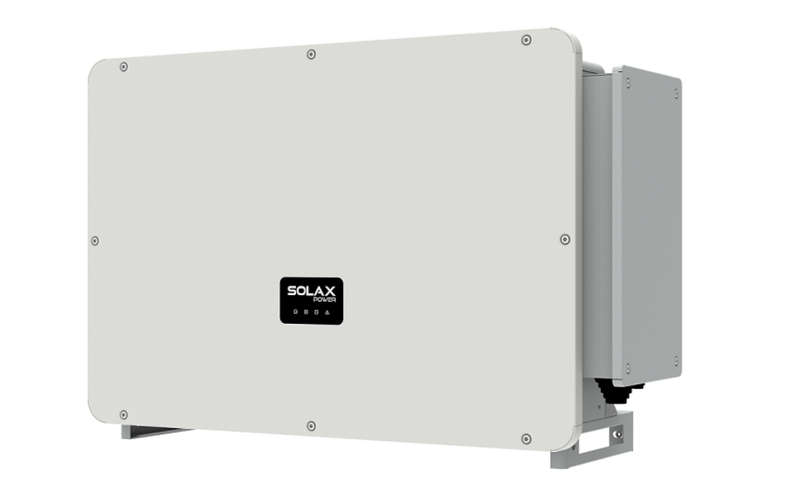

Solax: Inverter 110Kw X3-Forth Three Phase Grid-Tie

Solax: Inverter 110Kw X3-Forth Three Phase Grid-Tie

New 10 available
Indicative market price: R119,231.00
R101,516.20
15% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller

Product details

Condition
New
Location
South Africa
Product code
SL0144
Bob Shop ID
593173415

Three Phase Grid-Tie
9 MPPT Trackers
MPPT Efficiency: 99.9%
Maximum Efficiency: 98.6%

DC Input
Maximum PV Array Input Power: 165kWp
Maximum PV Input Voltage: 1100VDC
Startup Voltage: 200VDC
Nominal Input Voltage: 580VDC / 600VDC
MPP Tracker Voltage Range: 180VDC~1000VDC
Strings per MPP Tracker: 2
Maximum Input Current per MPPT: 32A
Maximum Short Circuit Current per MPPT: 46A

AC Output
Nominal AC Output Power: 110kW
Nominal AC Output Current: 166.7A / 159.5A
Maximum AC Output Current: 183.4A / 175.4A
Nominal AC Voltage: 220/380, 230/400, 3/N/PE, 3/PE
Nominal Grid Frequency: 50Hz / 60Hz
Displacement Power Factor: 0.8 Leading 0.8 Lagging
THDi (Rated Power): <3%

Environment Limit
Ingress Protection: IP66
Operating Temperature Range: -25°C to +60°C
Maximum Operation Altitude: 4000m
Relative Humidity: 0% to 100%
Cooling: Smart Fan Cooling
Communication: RS485 / (Optional: Pocket Wifi/4G) / Bluetooth / USB
Certification: IEC62109-1 / IEC62109-2 / IEC61727 / IEC62116

Datasheet
