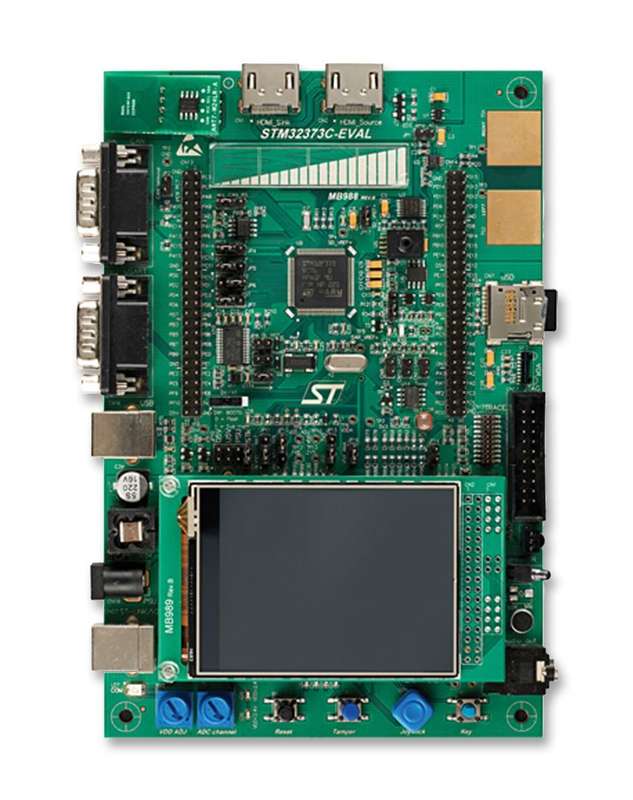

STMicroelectronics (STM32373C-EVAL) Evaluation Board, STM32F373VCT6 MCU

Product InformationSilicon Manufacturer: STMicroelectronicsNo. of Bits: 32bitSilicon Family Name: STM32F3Core Architecture: ARMCore Sub-Architecture: Cortex-M4Silicon Core Number: STM32F373VCT6Kit Contents: Eval Board STM32F373VCT6Product Range: -Product OverviewSTM32373C-EVAL evaluation board is designed as a complete demonstration anddevelopment platform for ARM Cortex-M4 core based STM32F373VCT6 microcontroller.It features two I2Cs, three SPIs, three USARTs, one CAN, one CEC controller, one12bit ADC, three 16bit sigma delta ADCs, three 12bit DACs, internal 32KByte SRAMand 256KByte Flash, touch sensing slider, USB FS, and JTAG debugging support.This evaluation board can be used as a reference design for user applicationdevelopment but it is not considered as the final application. The full range ofhardware features on the board can help the user evaluate all peripherals anddevelop their own applications. Extension headers make it possible to easilyconnect a daughter board or wrapping board for a specific application. AnST-LINK/V2 is integrated on the board as an embedded in circuit debugger andprogrammer for the STM32 MCU.Four 5V power supply option power jack, ST-LINK/V2 USB connector, user USBconnector, daughter boardAudio jack connected to I2S DACMicrophone connected to ADC through an amplifier2GByte (or more) MicroSD card on SPIThree components on I2C bus temperature sensor, EEPROM and dual interface RFEEPROMRS232 communication configurable for communication of Flash loaderCAN 2.0 A/B compliant connection and IrDA transceiver240 x 320 TFT colour LCD connected to SPI interfaceJTAG/SWD and ETM trace debug supportExtension connectors for daughter board or wrapping board2 LEDs for MCU power range indicatorUSB FS connectorTouch sliderTwo HDMI connectors with DDC and CECIR transmitter and receiverJTAG/SWD and ETM trace debug supportEmbedded ST-LINK/V
