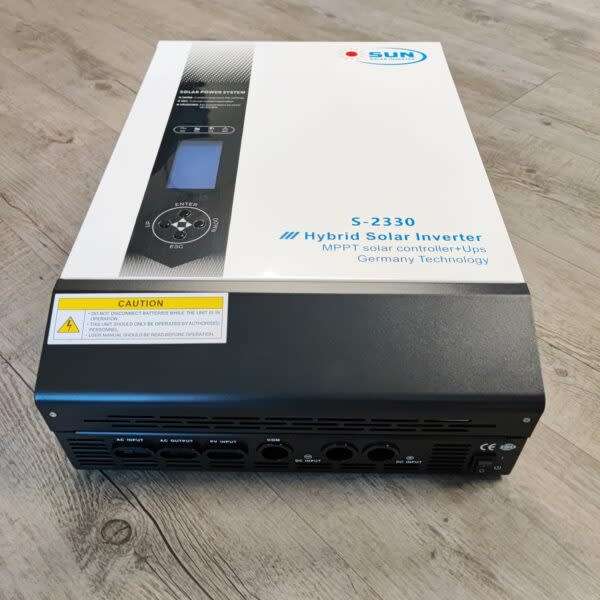

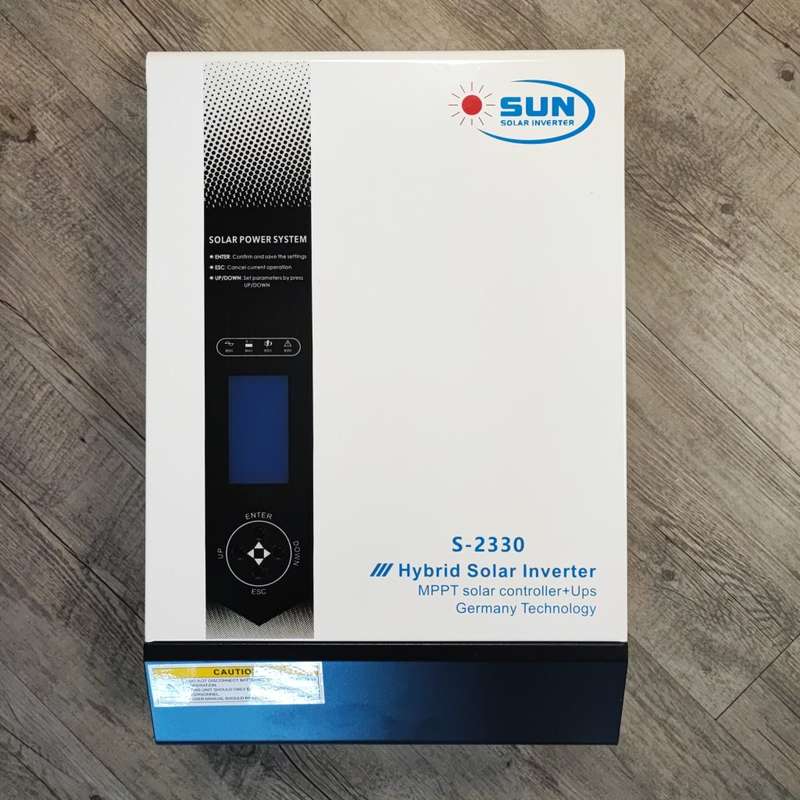

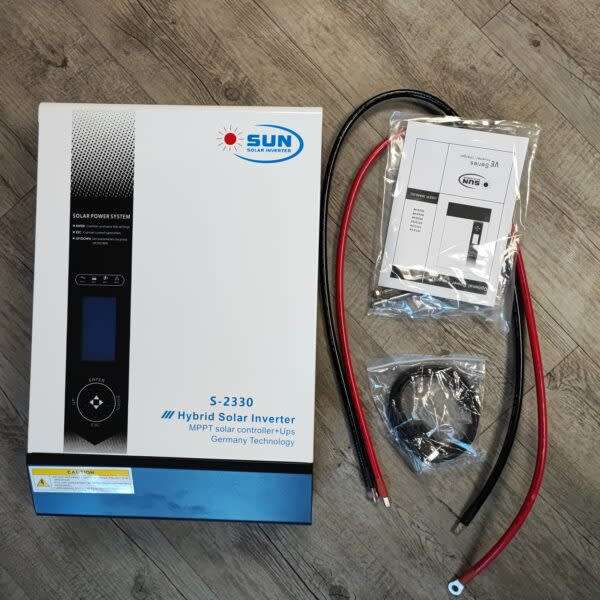

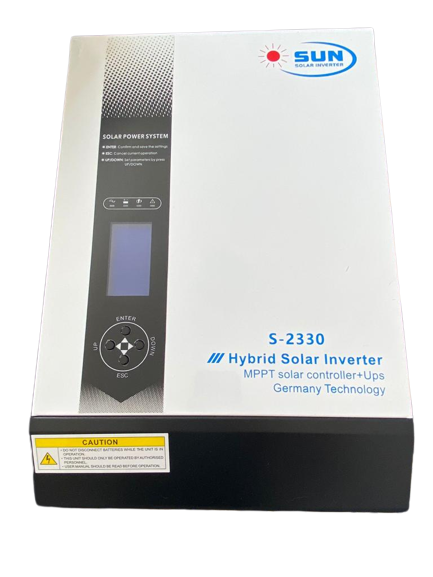

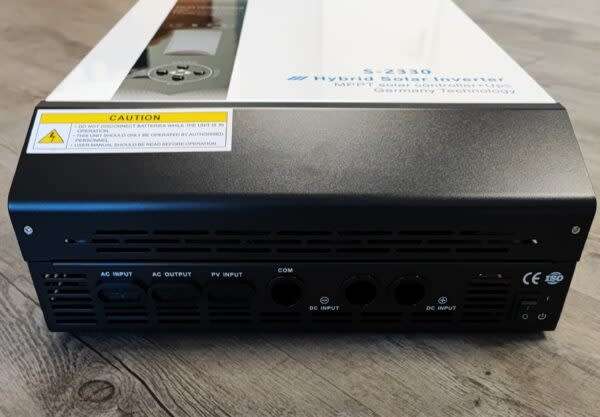

Hybrid Inverter 3KVA 3000W 24V Sun Solar Germany Technology
A hybrid solar inverter is a device that combines the functionalities of both a solar inverter and a battery inverter in a single unit. It is designed to convert the direct current (DC) power generated by solar panels into alternating current (AC) power that can be used by household appliances and also charge batteries for later use.
One of the main advantages of a hybrid solar inverter is that it allows for energy storage. This means that excess solar power generated during the day can be stored in batteries for use at night or during periods of low solar radiation. This can help reduce dependence on grid power and lower electricity bills.

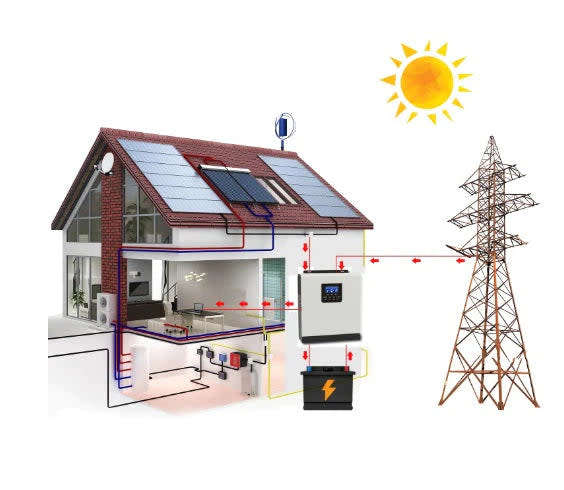

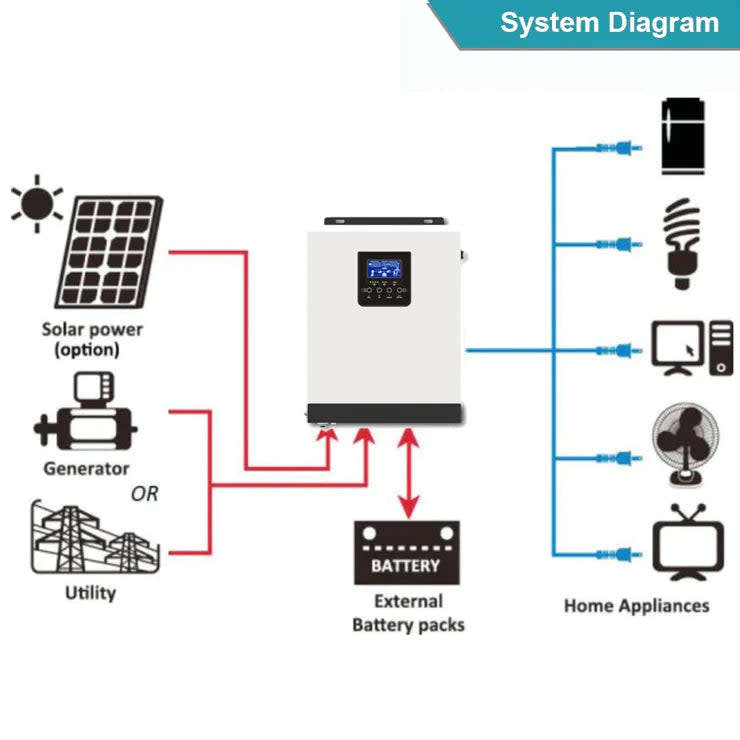

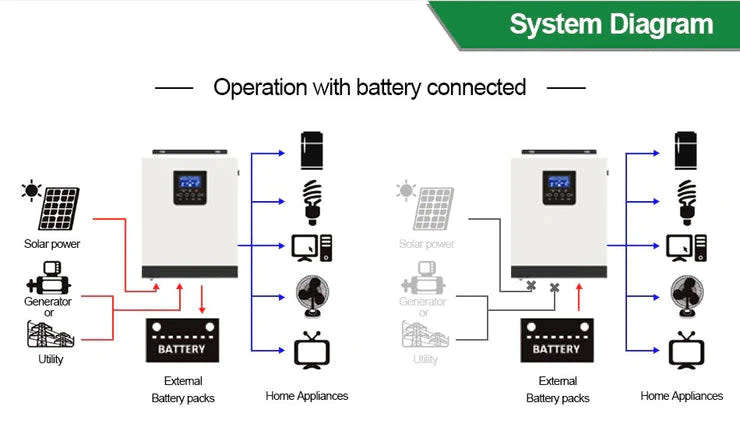

Another advantage of a hybrid solar inverter is its ability to manage power flows between the solar panels, batteries, and the electrical grid. It can intelligently switch between different power sources to ensure that the most efficient and cost-effective source is used at any given time. For example, during periods of high solar radiation, the inverter may prioritize using solar power and storing excess power in batteries. While during periods of low solar radiation, it may draw power from the grid or batteries.
Hybrid solar inverters are typically more expensive than standard solar inverters. But they offer greater flexibility and efficiency, especially for households with high energy consumption and those located in areas with unreliable grid power. They are also increasingly popular in off-grid applications, where they provide a reliable and cost-effective source of power.
TECHNICAL SPECIFICATIONS
Model: S-2330
Capacity: 3000W
DC Input: 24VDC
AC Input: 230VAC, 50/60Hz
Solar Charge Mode: MPPT-24
Rated Current: 60A
Best Vmp Range: 30-105VDC
Operating Voltage Range: 30-150VDC
Max.Solar Voltage (VOC): 150VDC
Net Weight: 16.03 KG
Gross Weight: 18.81 KG
Size: 557 x 387 x 203mm
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
