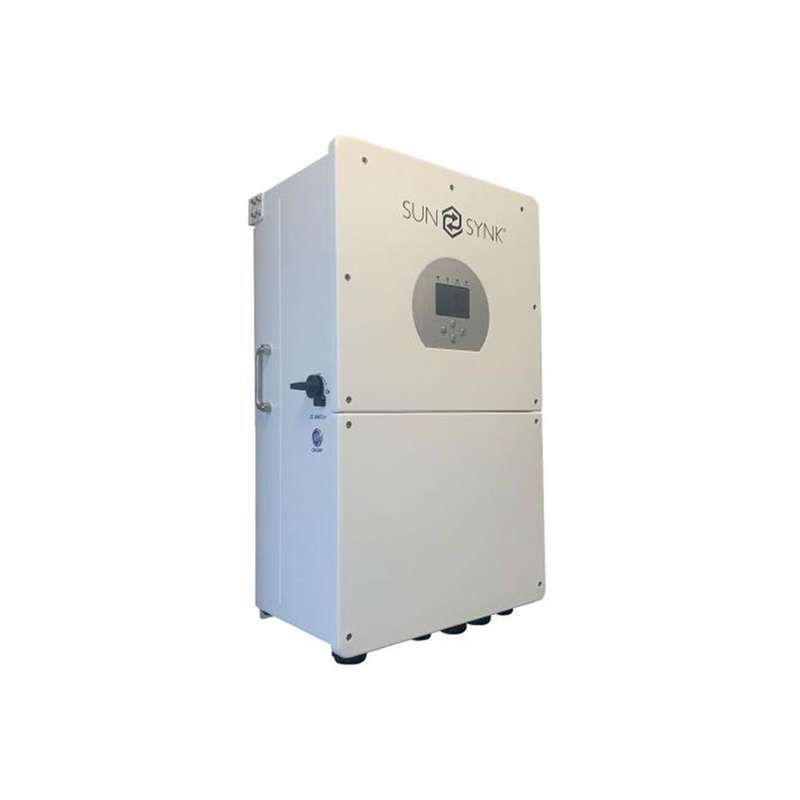

Sunsynk 16kW Single Phase Hybrid PV inverter
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 5 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
SS-1P-16K-H-LV
Bob Shop ID
603928312
Sunsynk's most powerful low-voltage inverter in the world, achieving a maximum output power of 16kW and battery charge current of 275A. This power management tool allows the user to hit those 'parity' targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.
Product Features
- The power management tool allows the user to manage power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require
- Supporting Wi-Fi or GSM monitoring
- Visual power flow screen
- Parallel / multi invert function grid-tied and off-grid
- ompatible with main electrical grid voltages or power generators
- Self-consumption and feed-in to the grid
- Auto restart while AC is recovering
- Auto earth bond feature (Via a relay)
- Fully programmable controller
- Programmable supply priority for battery or grid
- Programmable multiple operation modes: on-grid/off-grid & UPS
- Configurable battery charging - current/voltage based on the application
- Configurable AC / solar / generator charger priority by LCD setting
- Overload/over-temperature/short-circuit protection
- Smart battery charger design for optimized battery protection
- Limiting function installed to prevent excess power overflow to grid
- Important: All solar products and power systems, and their components must be installed by appropriately qualified Installers to make sure that the products are safely installed and meet Local regulations and compliance
- 5 years
Safety Features
- Grid Regulation: VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05
- Safety EMC / Standard: IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3
Technical Specifications
| Colour: | White |
| Mounting Type: | Wall Mounted |
| Protection Type: |
|
| Battery Type: | Lead-acid or Li-Ion |
| Battery Voltage Range: | 43V~60V |
| Cooling Method: | Fan |
| Noise Level: | <30dB |
| Input Current (Max.): | 22A + 22A |
| Grid Type: | Single-Phase |
| Peak Power (Off Grid): | 2 Times Rated Power for 10 Seconds |
| Power Point Tracking Range (MPPT) (Max.): | 250V~450V |
| Start-up Voltage: | 150V |
| AC Current (Max.): | 70A |
| AC Output Power (Max.): | 16000W |
| DC Input Power (Max.): | 18000W |
| Charge Current (Max.): | 275A |
| Discharge Current (Max.): | 300A |
| Charging Curve: | 3-Stage / Equalisation |
| Frequency Range: | 45Hz ~55Hz |
| PV Input Voltage (Max.): | 450V |
| Height: | 702mm |
| Width: | 422mm |
| Depth: | 281mm |
| Operating Temperature: | -25~55C |
| IP Rating: | IP65 |
| Weight: | 34.5kg |
Technical Documents
| Technical Document: | Download |
