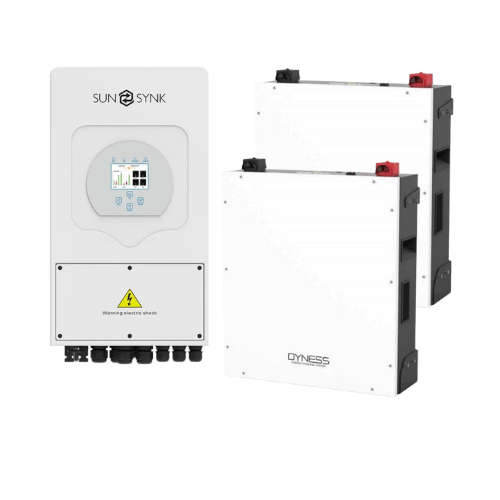

5.5KVA Sunsynk Hybrid Inverter + 2x Dyness 5.12kWh Lithium Battery
Product Description:
The Sunsynk 5.5KVA Hybrid Inverter, combined with a Dyness 5.12kWh Lithium Battery, provides a high-efficiency solar power backup solution ideal for residential and commercial applications. This system ensures seamless energy conversion, backup power, and smart energy management for both grid-tied and off-grid setups.
With a built-in Wi-Fi dongle, this system offers real-time remote monitoring, allowing users to track energy usage and optimize power generation. The Sunsynk inverter's MPPT technology maximizes solar energy harvesting, while the Dyness LiFePO4 battery ensures reliable long-term storage.
Key Features:
Sunsynk 5.5KVA Hybrid Inverter Features:
- Pure Sine Wave Output Ensures stable power for sensitive electronics.
- Power Factor 1.0 Delivers 100% efficiency in power conversion.
- Built-in MPPT 100A Solar Charge Controller Optimizes solar energy utilization.
- Multiple Operating Modes:
- Grid-Tied Mode Supports self-consumption and grid feed-in.
- Off-Grid Mode Works independently using solar and battery storage.
- Backup Power Mode Provides uninterrupted power during outages.
- Battery Compatibility:
- Supports lithium, gel, and AGM batteries.
- Auto Battery Management System (BMS) communication via RS485/CAN.
- Parallel / Multi-Inverter Capability:
- Expandable to support three-phase or single-phase configurations.
- Connect up to 16 inverters in parallel for increased capacity.
- Smart LCD Display & Remote Monitoring:
- Wi-Fi & GSM compatible for mobile monitoring.
- Visual power flow screen for real-time insights.
- Integrated Protection & Safety Features:
- Overload, over-temperature, and short-circuit protection.
- Built-in limiter function prevents excess power feed into the grid.
- Wide PV Input Range:
- Max PV Input Power: 4680W
- PV Voltage Range: 120V 500V DC
Technical Specifications:
Sunsynk 5.5KVA Hybrid Inverter:
- Product Type: Hybrid Inverter
- IP Rating: IP65 (Weather-resistant)
- Nominal Power Output: 5500W / 5.5KVA
- Battery Voltage: 48V DC (40V 60V)
- Max Battery Current: 90A DC
- AC Input Voltage: 220-230V AC
- AC Input Frequency: 50/60Hz
- Max AC Input Power: 3960W
- Surge Power: 11,000W
- Max Apparent Output Power: 3960VA
- Max PV Input Power: 4680W
- Output Waveform: Pure Sine Wave
- Cooling System: Fan-cooled
- Parallel Connection: Yes (Up to 16 inverters)
- Warranty: 5 Years
Dyness 5.12kWh Lithium Battery Specifications:
- Model: Dyness B51100
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Total Energy Storage: 5.12kWh
- Max Charge/Discharge Current: 50A (Recommended), 75A (Max)
- Cycle Life: 6,000+ cycles @ 80% Depth of Discharge (DOD)
- Battery Module Configuration: Up to 40 modules in parallel
- Operating Temperature:
- Charge: 0°C to 55°C
- Discharge: -20°C to 55°C
- Storage: -10°C to 35°C
- Communication Interface: CAN / RS485
- Installation: Wall-Mounted or Rack-Mounted
- Protection Rating: IP20
- Battery Warranty: 10 Years
What's Included in the Package:
- 1x Sunsynk 5.5KVA Hybrid Inverter (Pure Sine Wave, MPPT 100A, Parallel Ready)
- 2x Dyness 5.12kWh Lithium Battery (51.2V 100Ah LiFePO4)
- 1x Wi-Fi Dongle for Remote Monitoring
- 1x User Manual
- 1x Set of Battery Cables & Mounts
- 1x Ethernet Communication Cable
- 1x Wall Mount Bracket
- 1x Warranty Card
Important Notes:
- Installation Requirement: Must be installed by a qualified electrician or wireman.
- Certificate of Compliance (COC): Required for warranty validation.
- Warranty Policy:
- Inverter Warranty: 5 Years
- Battery Warranty: 10 Years (Covers 80% capacity or up to 6,000 cycles, whichever comes first).
- Installation Warranty: Must include COC and professional installation proof.
- Warranty Claims:
- Must include installation photos, valid COC, and proof of installation by a qualified professional.
- Improper use, electrical surges, or damage due to poor installation will void the warranty.
Ideal Applications:
Residential & Commercial Solar Systems Works for grid-tied, off-grid, and hybrid setups.
Load Shedding & Backup Power Ensures uninterrupted electricity during outages.
Renewable Energy Storage Optimizes solar energy utilization for homes & businesses.
Smart Energy Management Monitors and optimizes energy use for maximum efficiency.
Why Choose This Solar Power System?
Complete Renewable Energy Solution Includes Hybrid Inverter + Lithium Battery.
Long-Lasting Battery Up to 6,000+ charge cycles with 80% retained capacity.
High Efficiency MPPT 100A Controller Maximizes solar energy conversion.
Parallel Expandability Supports mult...
