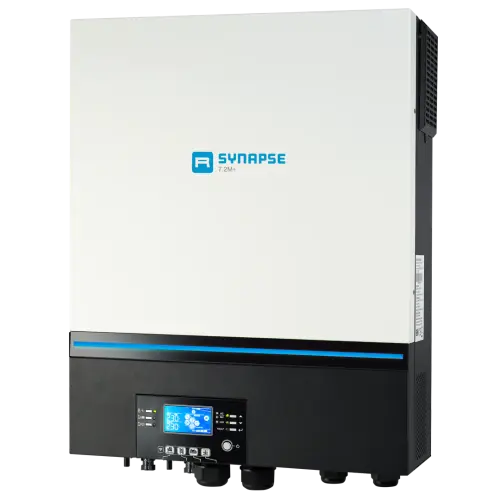

SYNAPSE 7.2M+ OFFGRID INVERTER, 8KW DUAL MPPT, 7.2KW, 48VDC

1 was available / new
Indicative market price: R26,000.00
R21,999.00
15% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Type
Solar Inverters
Bob Shop ID
580845688
Parameters:

Rated Power: 7200W
Voltage: 230V AC
Surge Power: 15000VA
Efficiency: 90-93%
Transfer Time: 20ms for home appliances
Waveform: Pure sine wave

Battery:
Battery Voltage: 48V DC
Floating charge Voltage: 54V DC
Overcharge Protection: 66V DC

Important Note: When using this inverter with Lithium batteries, care should be taken to correctly size the bank, taking into account the maximum current which this inverter requires VS what the battery can deliver. Maximum continuous current per inverter = +-160A, max. peak current = +-320A (depending on battery SOC / terminal voltage).

Solar Charger & AC Charger:
Max PV Array Power: 2 x 4000W
Max PV Array VOC: 500V DC
MPPT Range @ Operating Voltage: 90 ~ 450V DC
Max Solar Charger Current: 80A
Max AC Charger: 80A
Max total Charge: 80A


General:
Parallel operation: Up to 6 units
Battery BMS compatibility: Pylontech, Soltaro, WECO

Physical:
Dimensions(D x W x H): 147.4 x 432.5 x 553.6mm
Weight: 18.4kgs
Communication Interface: USB / RS232 / RS485 / Wifi /  Dry-contact

Environment:
Relative Humidity: 5% to 95%  (Non-condensing)
Operating Temperature:-10°C to 50°C
Storage Temperature: -15°C to 60°C

Brand New in the Box
