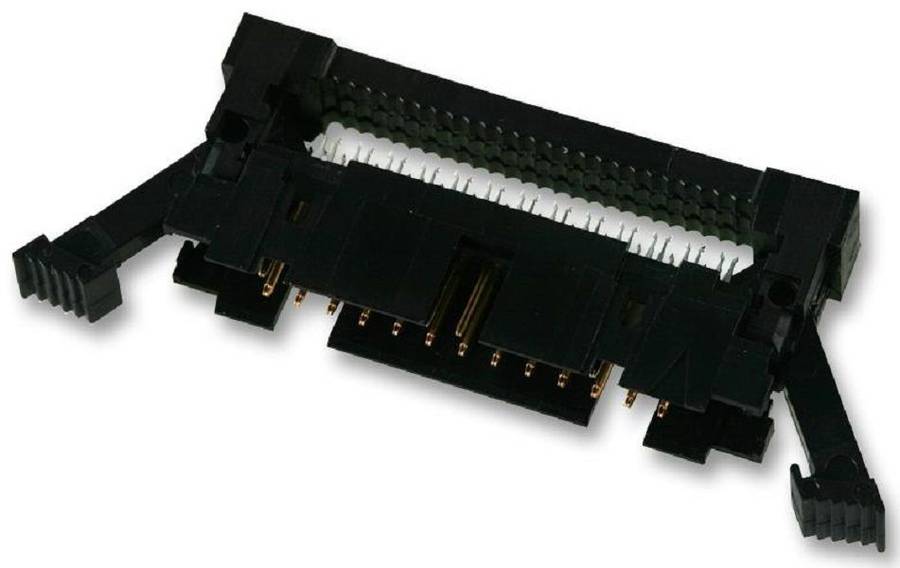

TE Connectivity (1-111504-5) IDC Connector, Latched, IDC Plug, Male

IDC Connector, Latched, IDC Plug, Male, 2.54 mm, 2 Row, 14 Contacts, Cable MountProduct OverviewThe 1-111504-5 is a 14-position 2-row vertical shrouded Wire-to-Wire UniversalI/O Ribbon Cable Connector with 0.76µm gold-plated phosphor bronze tuning forkdesign pin contacts and black UL 94V-0 rated flame retardant thermoplastichousing. The plug supports through-hole solder termination method to PC boardand latch retention type.Low profilePolarizationWithout PCB mount retentionInsulation Displacement Crimp (IDC) termination method to wire/cableKeyed mating alignment typeApplicationsIndustrialProduct InformationPitch Spacing: 2.54mmIDC Connector Type: IDC PlugContact Gender: MaleNo. of Contacts: 14ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: AMP-LATCH Universal I/O Series
