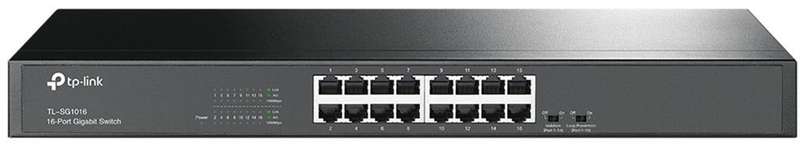

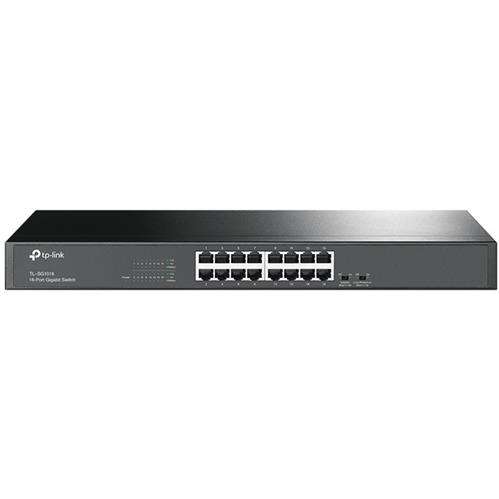

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch, Retail Box , 2 year Limited Warranty
The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption, making it an eco-friendly solution for your business network.
Features
16× 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case
Specifications
Product code: TL-SG1016
Description: TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p
Interface: 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 17.3 × 5.5 × 1.7 in. (440 × 140 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 10.68 W (220 V / 50 Hz)
Max Heat Dissipation 36.31 BTU/h
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Advanced Functions
Isolation Mode: Ports 1-14
Loop Prevention: Ports 1-16
Jumbo Frame 10KB
QoS 802.1p/DSCP QoS
Green Technology Yes
Transfer Method Store-and-Forward
Certification FCC, CE, RoHS
Package Contents 16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0~40 (32~104);
Storage Temperature: -40~70 (-40~158);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
