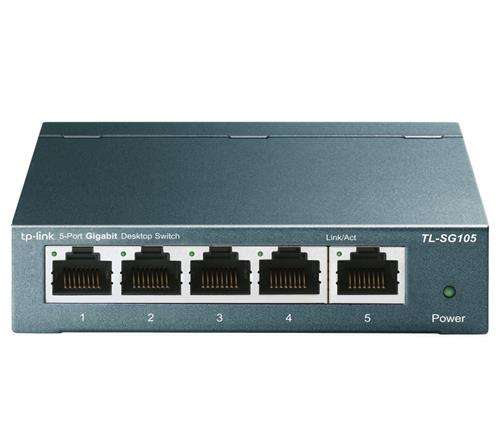

TP-Link TL-SG105 5-Port Gigabit Desktop Switch, Retail Box, 1 year Limited Warranty
Expand your network effortlessly with the TP-Link TL-SG105. This plug-and-play switch offers five Gigabit ports for fast data transfer and supports various network protocols for optimized performance.Its compact design and energy-efficient technology make it ideal for home or office use. Upgrade your network connectivity without hassle.
Features
5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play, no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing, desktop/wall-mounting options, and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
Specifications
Product code: TL-SG105
Description: TP-Link TL-SG105 5-Port Gigabit Desktop Switch,
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption 3.0 W (220 V/ 50 Hz)
Max Heat Dissipation 10.23 BTU/h
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2K
Packet Buffer Memory 1 Mb
Jumbo Frame 16 KB
Advanced Features Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Loop Prevention
Transfer Method Store and Forward
Certification CE, FCC, RoHS

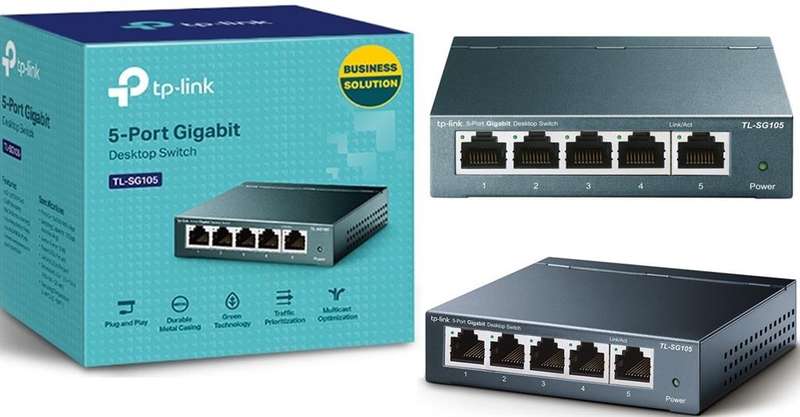

Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Environment Operating Temperature: 040 °C (32104 °F)
Storage Temperature: -4070 °C (-40158 °F)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
