H.265 Compression Technology
30 fps @ 1920x1080
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Smart IR Technology to Avoid Overexposure
Smart Motion Detection to Reduce False Alarms
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Weather-proof IP66 and Vandal-proof IK10-rated Protection
System Information

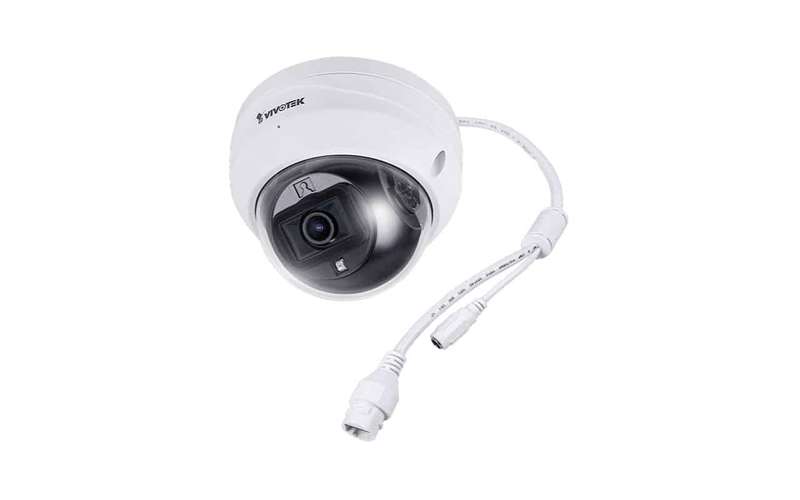

Model
FD9369
CPU
Multimedia SoC (System-on-Chip)
Flash
256 MB
RAM
256 MB
Camera Features
Image Sensor
1/3.1" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Fixed-focal
Focal Length
f = 2.8 mm
Aperture
F2.0
Iris Type
Fixed Iris
Field of View
116 (Horizontal)
65 (Vertical)
140 (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Enhanced
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
Minimum Illumination
0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
Pan Range
350
Tilt Range
-10 ~ 75
Pan/Tilt/Zoom Functionalities
ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
Maximum Streams
2 video streams (Up to 7 configurable profiles)
S/N Ratio
59 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator
Audio
Audio Capability
One-way audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Smart Motion Detection
Five-window video motion detection, people detection, time filter
VADP Package
Smart Motion Detection
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af Class 0 PoE, DC 12V
(Simultaneous Power Redundancy Supported)
Power Consumption
PoE:
Max. 6.49W/4W (IR on/off)
DC 12V:
Max. 5.1W/3.4W (IR on/off)
Dimensions
110 x 85 mm
Weight
465 g
Certifications
EMC: CE (EN55032 Class B,EN55035), FCC (FCC Part 15 Subpart B Class B), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22); IA: BIS (IS 13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529)
Operating Temperature
Starting Temperature:
-30C ~ 50C (-22F ~ 122F)
Working Temperature:
-30C ~ 55C (-22F ~ 131F) (IR off)
-30C ~ 50C (-22F ~ 122F) (IR on)
Humidity
95% RH (non-condensing)
