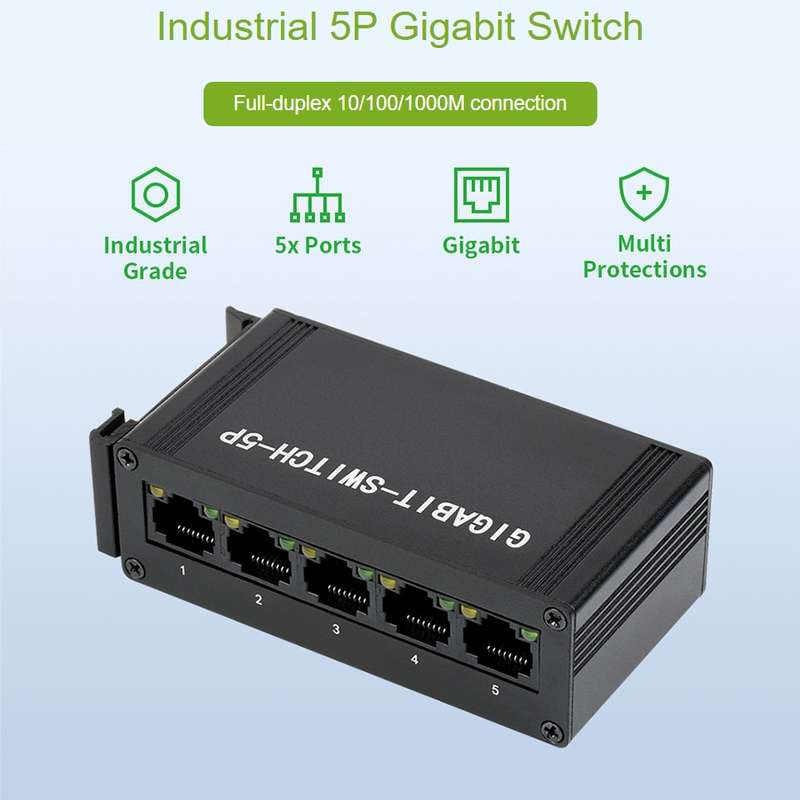

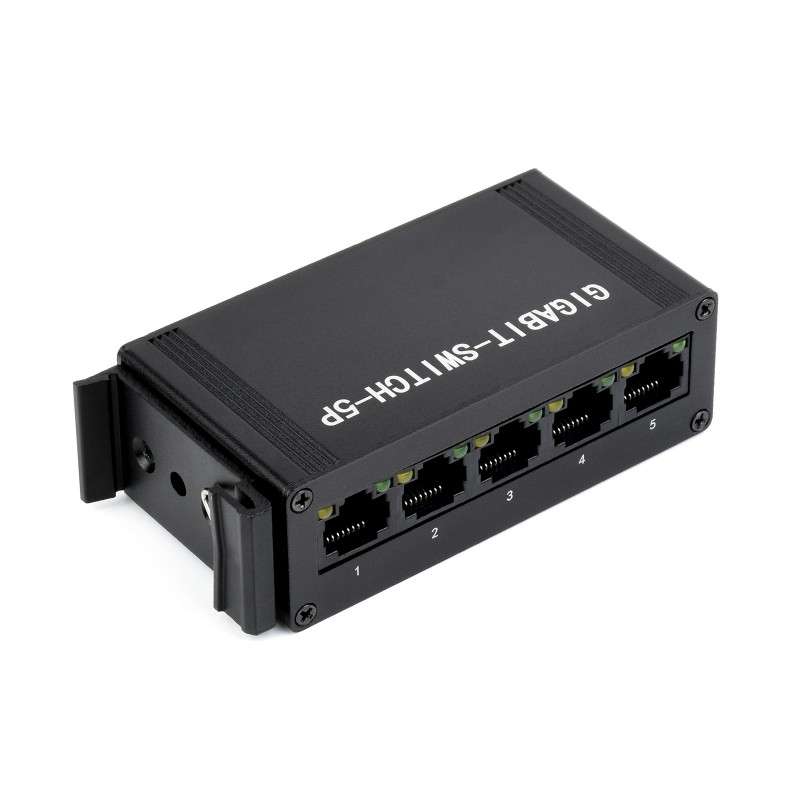

Waveshare Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount

Features

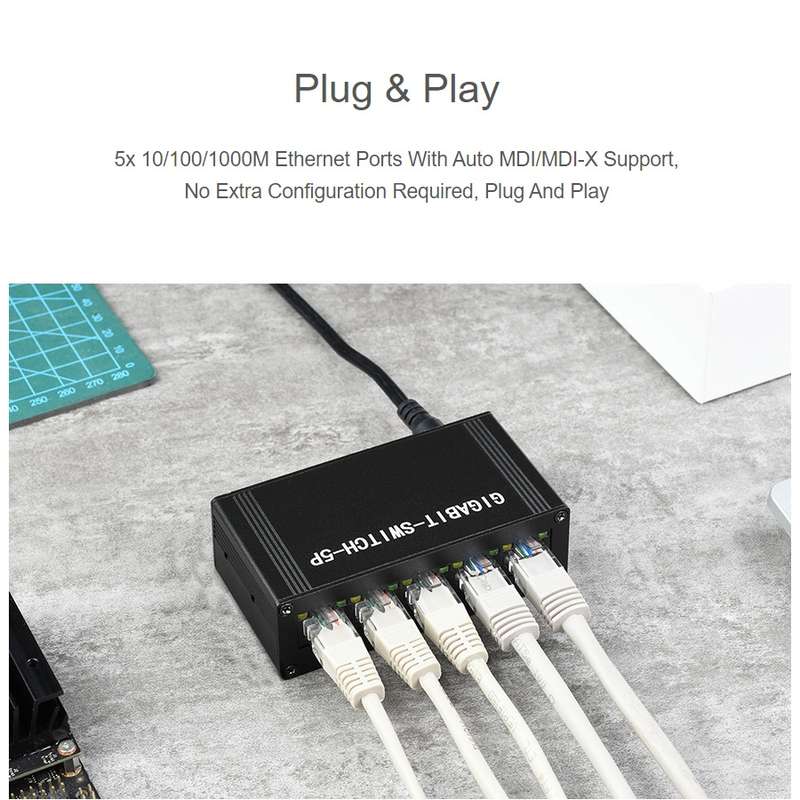

1. Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture
2. Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
3. Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support
4. Allow forwarding 9216 bytes huge data packet on linear speed
5. Over-voltage protection, effectively preventing damages caused by other high voltage power supply

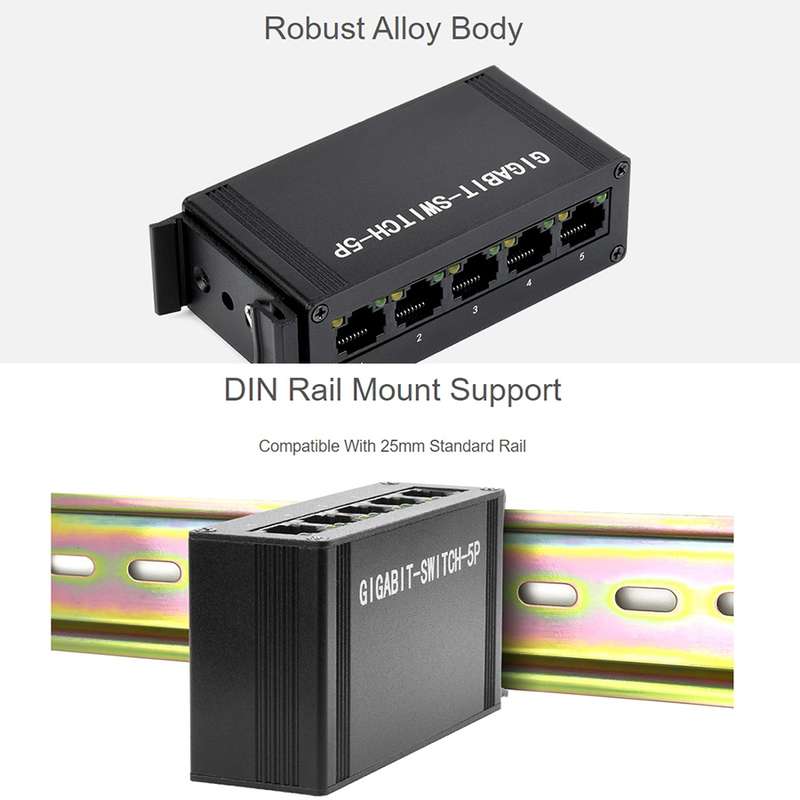

6. Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing
7. 5~36V wide voltage power supply, dual power interface (DC interface and terminal block) onboard overvoltage protection, reverse connection protection.

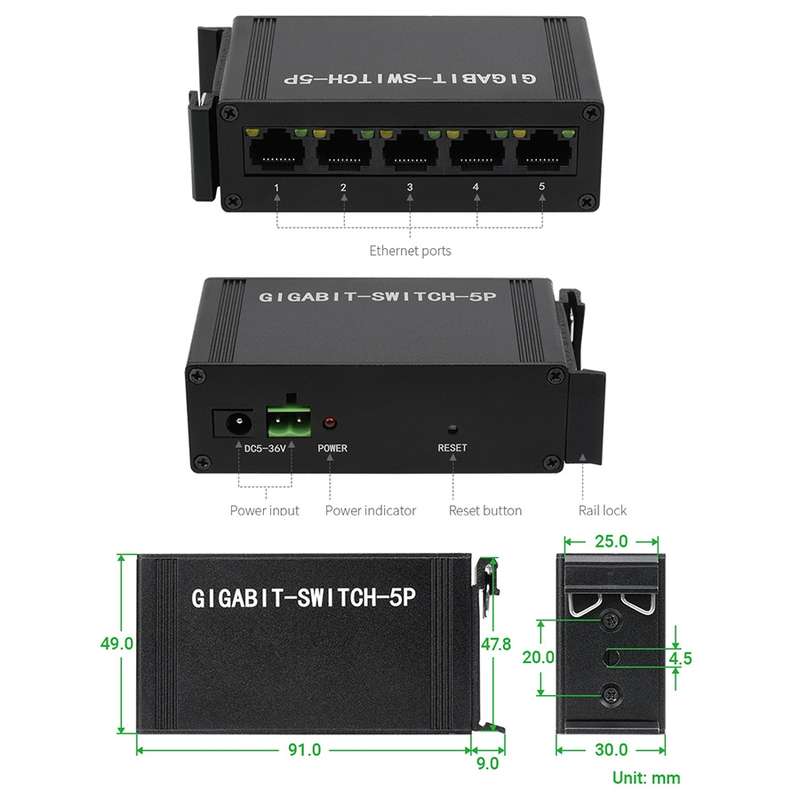

8. Support 25mm standard rail.

Package List
1. Gigabit-Switch-5P x 1
2. Power supply screw terminal x 1
3. 12V 1A power adapter x 1


DIY0288
