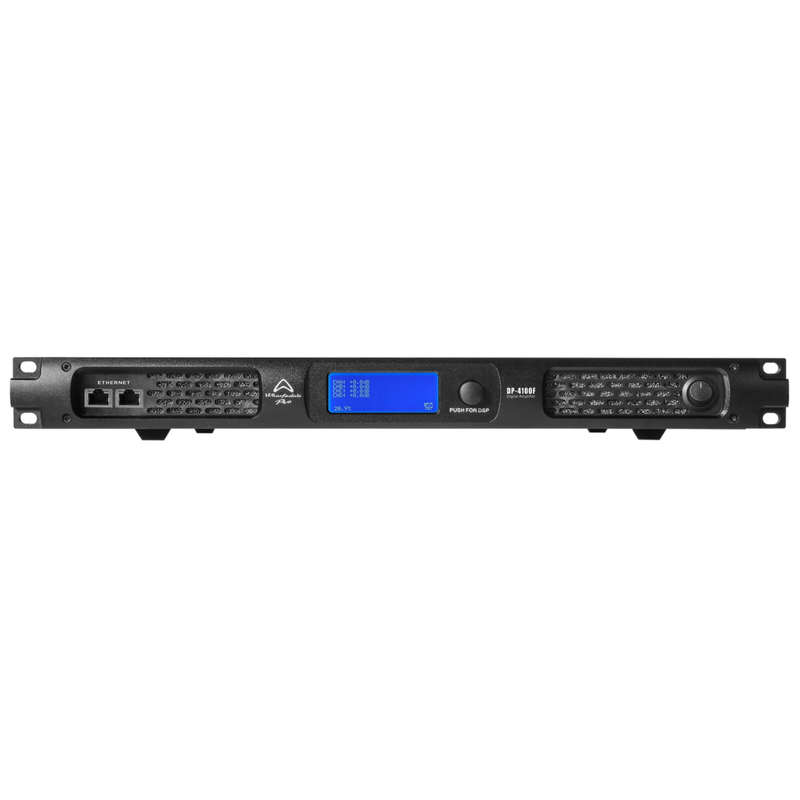

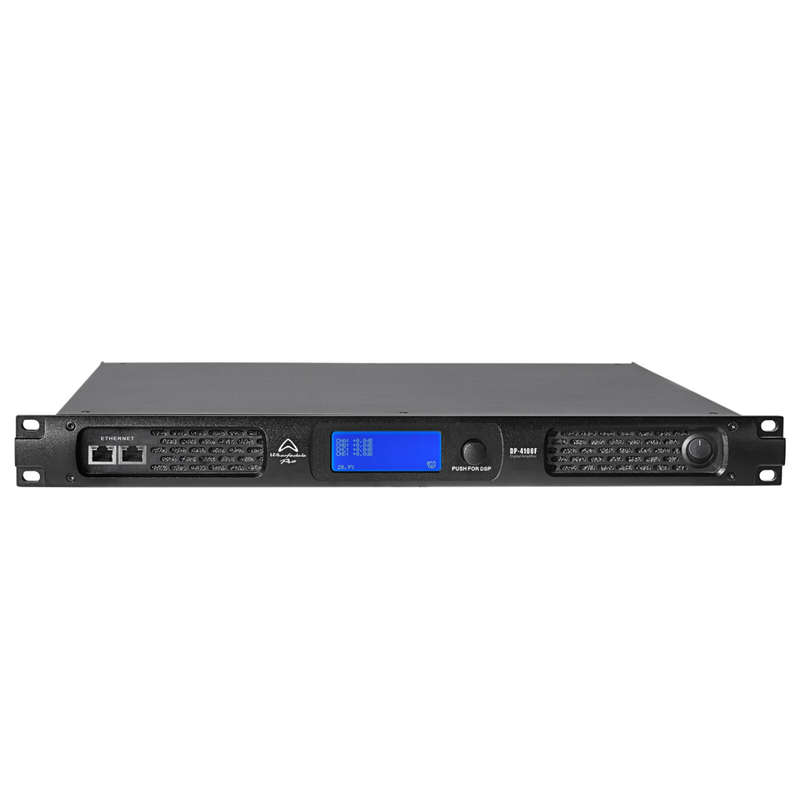

Model Name | DP-4100F |
Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) | |
8 / Stereo | 4 x 1000 W |
4 / Stereo | 4 x 1700 W |
2 / Stereo | 4 x 2890 W |
16 / Bridge | 2 x 2000 W |
8 / Bridge | 2 x 3400 W |
4 / Bridge | 2 x 5780 W |
100 V Hi-Z | |
70 V Hi-Z | 4 x 1700 W |
Output RMS voltage | 89.4 V |
Maximum Input Level | 8.7 Vrms(+21 dBu)(Default Gain) |
Default Gain (Rated Power,1 KHz) | 21 dB |
Gain(Rated Power,1 KHz) | 21 dB~39 dB |
THD+N | Typical value:0.05%(10% Rated Power,8 ) |
Cross-Talk | 90 dB(20 Hz-1 KHz,Below Rated Power,8 ) |
Frequency Response | Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 ) |
Input Impedance | 20 k(Balance),10 k(Unbalance) |
Damping Factor | 1000(20 Hz-200 Hz,8 ) |
SNR | 105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 ) |
Main Power | 90~260 VAC,50/60 Hz |
Protection | Power under-voltage protectionAmplifier output DC protectionThermal Protection Temperature Power ControlOverload Power Control |
Size(W×H×D) mm | 483 x 45 x 376 |
Net Weight | 9.1 Kg |
