XH-W1209 Digital Display Cool/Heat Temperature Thermometer Controller

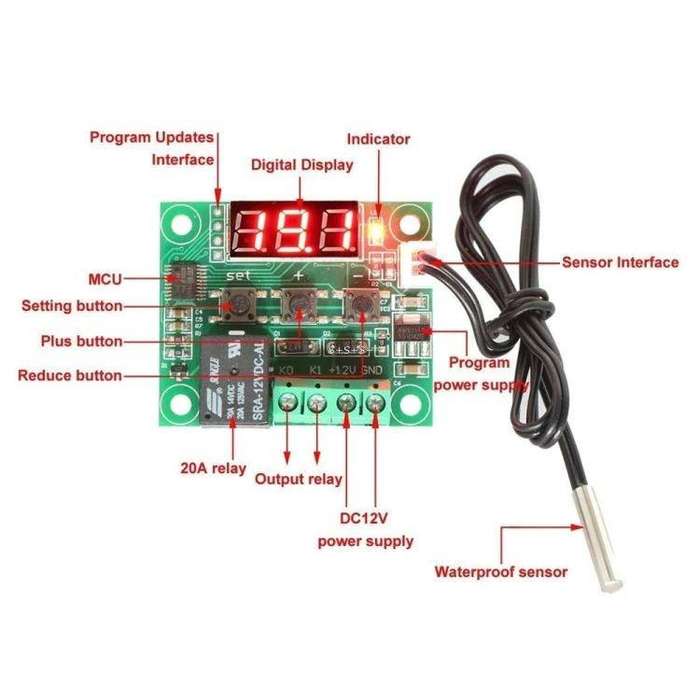

The W1209 is an incredibly functional thermostat controller. With this module, you can intelligently control power to many types of electrical devices based on the temperature sensing via the included high-accuracy NTC temperature sensor. Although this module has an embedded microcontroller, no programming knowledge is required. Three tactile switches allow for configuring various parameters including on & off trigger temperatures. The onboard relay can switch up to a maximum of 125VAC at 10A or 12V DC at 10A. The current temperature is displayed in degrees centigrade via its 3-digit seven-segment display and the current relay state by an onboard LED.

Features:

Precise Temperature Control up to 1C

Fast Acting Control of 1 second's response time

With Waterproof sensor

LED Display for Temperature, settings, and warning

LED Relay Status Indicator

Output Relay can be used with both AC and DC circuits

Application:

Indoor Room Temperature Control

Aquarium temperature controller

Temperature controller for Controlled Temperature sheds

Food and Beverage temperature controller

Temperature controller for Health Care applications

Please note:

Not to be used for electrical circuits requiring 220VAC to be switched through the relay.
