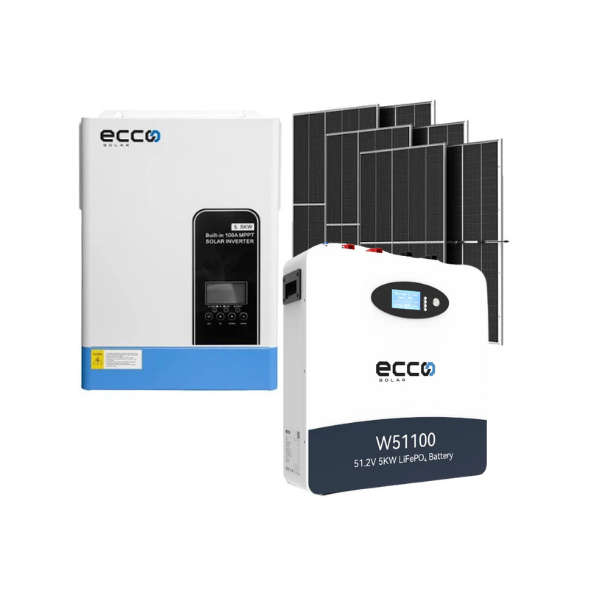

5.5KVA ECCO 5500W Hybrid Inverter and Battery ECCO 5.12 KWH Lithium Battery 6 X 445W Bifical Sola...

1. Product Overview

5.5KVA ECCO 5500 Hybrid Inverter and Battery Watt 48V ECCO 5.12 KWH Lithium Battery 6 X 445W Bifacial Solar Panels

2. Inverter Specifications

5.5 Kva 5500w Hybrid Inverter 48v Mppt 100a Inverter Pure Sine Wave - Ecco+ Non

• High Voltage: VDC500V

• Power Output: 5.5KVA/5500W

• Current: 100A Pure Sine Wave Solar Inverter

Features

• Pure sine wave

• Power factor 1.0

• PV input Voltage 60Vdc-500Vdc

• Built-in MPPT 100A

• Capable to work without battery

• RS485 BMS Communication

• Lithium battery activation

• Detachable dust cover for harsh environment

• WiFi remote monitoring optional

• Support multiple output priority: UTL, SOL, SBU, SUB

• EQ function to optimize battery performance and extend lifecycle

Dimensions & Weight

• Dimensions: 438 x 295 x 105mm

• Weight: 9kg

3. Important Installation Note

It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results.

This product requires installation by a qualified PV installer, who must be able to issue a Certificate of Compliance. This ensures that the installation is safe, correct, and within the scope of relevant regulations.

What's in the Box

1. 1 x ECCO 5.5KW Inverter

2. 1 x Wifi Monitoring Module

3. 1 x Connecting Cables

4. 1 x User Guide

4. Warranty

• 5-Year Repair Warranty

5. ECCO Lithium Ion Battery 51.2V 100AH 5.1KWH Wall Mounted

Features

• Wall-mounted design, easy to install, and aesthetic

• Adopts lithium iron phosphate battery cell, safe to use, long life cycle

• Maximum 1C charge/discharge

• User-friendly human-machine interface

• Compatible with multiple brands of inverters at the same time

• Supports a maximum of 16 parallel groups

• Meets North American UL, EU TUV standards

Benefits

• Longer Cycle Life: Up to 20 times longer than a lead acid battery

• Lighter Weight: About 40% of the weight of a comparable lead acid battery

• Higher Power: Delivers twice the power of a lead acid battery

• Wider Temperature Range: -20 C~60 C

• Superior Safety: Eliminates the risk of explosion or combustion

What's in the Box

1. Battery

2. Battery Cables & Mounts Included

Battery Parameters:

• Battery Type: USE
• Bulk Charge Voltage: 56.4V
• Float Charge Voltage: 54.5V
• Cut-Off Voltage: 43V
• Charging Amps: 30A

Battery Specifications:

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Total Power Output: 5.12kWh
• Operating Voltage Range: 43V 54.5V
• Short Circuit Protection: Yes
• Reverse Connection Protection: Optional
• Maximum Charging Voltage: 57.6V
• Recommended Charging Voltage: 56.4V
• Maximum Continuous Output Power: 5500W
• Peak Output Power: 7500W
• Local Parameter Configuration: Supported
• Installation Dimensions: 480mm x 170mm x 500mm
• Package Size: 590mm x 290mm x 615mm
• Weight: 49kg
• IP Class: IP54 (Weather-resistant design)
• Communication: RS485, RS232, CAN
• Design Life: 15 Years

6. 445W Bifacial Solar Panel

Features

• MECHANICAL DATA
  Cell	Mono
  Weight	21.5kg
  Dimensions	1722±2mm*1134±2mm*30±1mm
  Cable Cross Section Size	4mm²(IEC)，12 AWG(UL)
  No. of cells	108(6*18)
  J-Box	IP68, 3 diodes
  Connector	QC 4.10-351/ MC4-EVO2A




  ELECTRICAL DATE(STC)
  Rated Maximum Power(Pmax)[W]	420	425	430	435	440	445
  Power Tolerance	0~+3%
  Open Circuit Voltage(Voc) [V]	38.28	38.56	38.84	39.11	39.38	39.65
  Maximum Power Voltage(Vmp) [V]	32.38	32.64	32.88	33.13	33.37	33.64
  Short Circuit Current(lsc) [A]	13.65	13.7	13.75	13.8	13.85	13.9
  Maximum Power Current(lmp) [A]	12.97	13.02	13.08	13.13	13.18...
