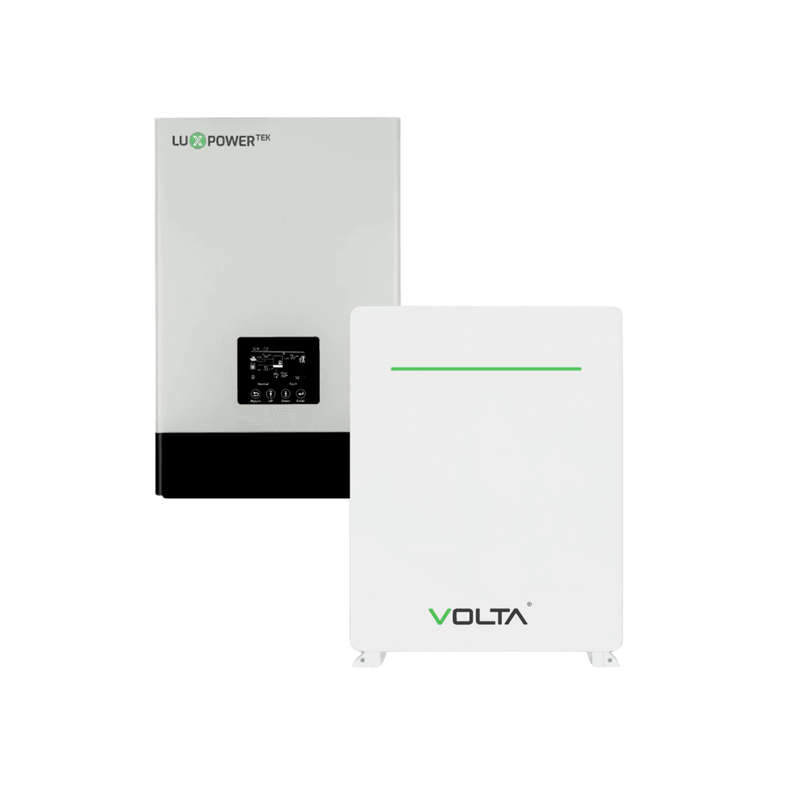

5KVA 5000W LuxPower Hybrid Inverter MPPT 100A + Volta 5.12kWh (STAGE 1 NEW GEN) Lithium Battery Backup Kit
Product Overview
The LuxPower SNA5000 WPV 5KVA Hybrid Inverter, combined with the Volta 5.12kWh Lithium Battery, provides a high-performance, energy-efficient backup power solution for residential and commercial use. With advanced MPPT solar charging, intelligent load management, and a scalable energy storage system, this combo ensures optimal solar energy utilization while providing seamless backup power.
Designed for load shedding, off-grid living, and hybrid solar applications, this system offers remote monitoring capabilities, parallel operation, and BMS integration for reliable and efficient energy management.
Key Features
LuxPower 5KVA Hybrid Inverter
Intelligent Hybrid & Off-Grid Operation Seamlessly switches between solar, battery, and grid power for uninterrupted energy supply.
High-Efficiency MPPT Solar Charging Supports up to 120A maximum charge current for faster battery charging.
Simultaneous AC & PV Power Supply Ensures stable power output by combining solar and grid input.
Scalable Power Solution Supports parallel operation of up to 10 inverters for increased power capacity.
Smart Monitoring & Control WiFi & remote app monitoring for real-time system management.
Compatible with Leading Lithium Batteries Integrates with Volta, Deye, Growatt, Sunsynk, PylonTech, Victron, and more.
Enhanced Safety Features Includes overload, short circuit, over-temperature, and surge protection.
Technical Specifications
LuxPower 5KVA Hybrid Inverter
- Inverter Type: Hybrid (Grid-Tied & Off-Grid)
- Rated Power: 5,000W / 5KVA
- Surge Power: 7,200VA
- Waveform: Pure Sine Wave
- MPPT Solar Charge Controller:
- Max PV Input Power: 6,000W
- MPPT Voltage Range: 120V - 450V DC
- Max Solar Charge Current: 120A
- AC Charging Capacity:
- Charge Current: 100A
- Input Voltage: 230V AC
- Selectable Voltage Range: 195V - 253V AC
- Battery Compatibility:
- Voltage Range: 20V - 33V DC
- Max Charge/Discharge Current: 150A
- Connectivity & Monitoring:
- WiFi Remote Monitoring
- RS485 & CAN Communication for BMS Integration
- Installation & Dimensions:
- Wall-Mounted (IP20 Rated Indoor Use Only)
- Size: 440 x 620 x 150 mm
- Weight: 46 kg
- Warranty: 2 Years
Volta 5.12kWh Lithium Battery (Stage 1/New Gen)
High-Performance LiFePO4 Battery Provides 5.12kWh of usable energy with 10-year lifespan.
Advanced Battery Management System (BMS) Ensures safe operation, optimal charge cycles, and long-term reliability.
Scalable & Expandable Supports parallel connection of up to 32 battery packs for increased energy storage.
Fast Charging & High Discharge Rate Ideal for backup power, solar applications, and heavy load appliances.
Wall-Mounted & Floor-Standing Installation Flexible mounting options for space-saving integration.
Wide Inverter Compatibility Works with Deye, Sunsynk, Victron, Growatt, SMA, LuxPower, and more.
Technical Specifications
Volta 5.12kWh Lithium Battery (STAGE 1 NEW GEN)
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Total Energy Capacity: 5.32kWh
- Usable Capacity: 4.79kWh
- Depth of Discharge (DOD): 90% (recommended)
- Cycle Life: 6,000+ Cycles at 25°C (0.5C/1C Charge & Discharge Rate)
- Charge & Discharge Capacity:
- Recommended: 50A
- Maximum: 100A
- Peak Discharge: 150A (2 minutes @ 25°C)
- Operating Temperature Range:
- Charge: 0°C to 55°C
- Discharge: -20°C to 60°C
- Storage: 0°C to 35°C
- Communication Ports: CAN 2.0, RS485
- Installation: Wall-Mounted or Floor-Standing
- Dimensions & Weight:
- Size: 440 x 620 x 150 mm
- Weight: 46 kg
- Battery Warranty: 10 Years
Package Contents
1x LuxPower 5KVA Hybrid Inverter (WiFi Dongle Included)
1x Volta 5.12kWh Lithium Battery (LiFePO4, 51.2V 100Ah) NEW GEN
1x Set of Battery Cables & Mounts
1x Ethernet Communication Cable
1x User Manual
Installation & Warranty Guidelines
- Installation Requirement: Must be installed by a qualified electrician or wireman.
- Certificate of Compliance (COC): Required for warranty validation.
- Warranty Coverage:
- Inverter Warranty: 2 Years
- Battery Warranty: 10 Years
- Warranty Claims:
- Must include installation photos, valid COC, and proof of installation by a certified professional.
- Improper installation, electrical surge damage, or non-compliance with standards will void the warranty.
