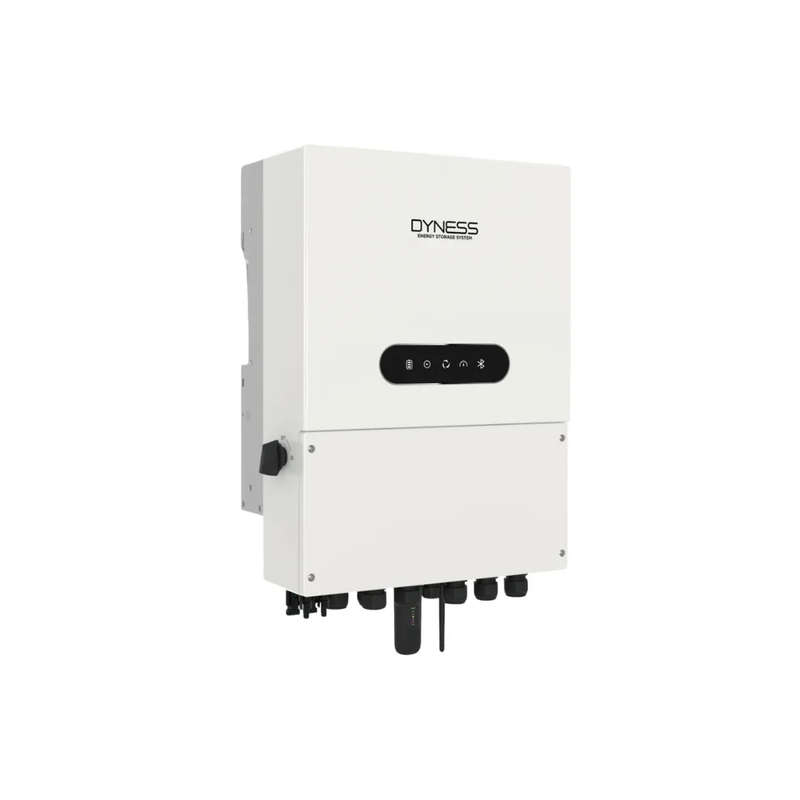

5KVA Dyness Hybrid Inverter (Single Phase)

5KVA Dyness Hybrid Inverter (Single Phase)

ONLINE DEAL ONLY ! CAN BE ORDERED FOR IN STORE COLLECTION

Dyness 5KW Single Phase LV Hybrid Inverter with CT & WIFI Included Dyne-5.0L-1P-A

The DYNE 5.0/6.0/8.0L-1P-A series is designed for residential hybrid systems. The inverter can work with Dyness low-voltage lithium-ion battery DL5.0X/DL5.0C/ Powerbox Pro to maximize self-consumption and provide backup power if the grid fails and there is not enough PV power to cover load demand.

Product Features:

• Generator connectivity with multiple input methods and automatic generator On/Off control
• Automatic UPS switching(<4ms)
• Supports peak shaving control in both "self-use" and "generator" mode
• Up to 135A(5.0/6.0K) and 190A(8.0K) max charge/discharge current
• 6 customizable charge/discharge time settings
• 10-second 200% surge power backup overload capability
• Supports 1ph and 3ph flexible connection with max 36kW (5.0/6.0K) and 48kW(8.0K) in parallel

Specifications:

• Input DC (PV side):
  • Recommended max. PV power: 8 kW
  • Max. input voltage: 600 V
  • Rated voltage: 300 V
  • Start-up voltage: 90 520 V
  • Max. input current: 16 A / 16 A
  • Max. short circuit current: 24 A / 24 A

• Battery:

  • Battery type: Li-ion
  • Max. charge/discharge power: 5 kW
  • Max. charge/discharge current: 112 A
• Output AC (Grid side):
  • Rated output power: 5 kW
  • Max. output current: 25 A
  • Max. input current: 34.1 A
• General
  • Dimensions(W*H*D): 405*560*205mm
  • Weight: 24 kg
  • Ingress protection: IP66

5 Years Warranty

• Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
