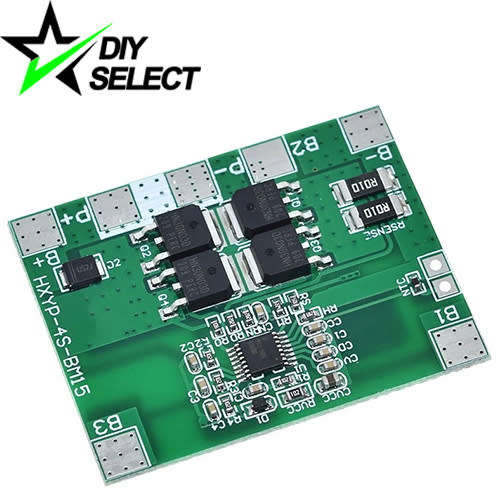

Battery LifePO4 Protection and Balance Board 4s 14A (Max 20A) **LOCAL STOCK**

Battery LifePO4 Protection and Balance Board 4s 14A (Max 20A) LOCAL STOCK

Name: Battery LifePO4 Protection and Balance Board 4s 14A (Max 20A) **LOCAL STOCK**
SKU: BAT225
Price: 70.00 ZAR
Availability: InStock

5 available / new

Only 5 left – grab it before it’s gone!

R70.00

Add to watchlist Watch

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8430

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

BAT225

Bob Shop ID

642576660

Battery Lifepo4 Protection and Balance Board 4s 14.4V 14A:

Specifications:

Charging Voltage: 12.8 - 14.8V Max (3.6V x 4 batteries = 14.4V Fully Charged)
Working Current: 14A (20A Max)
Over Charging Voltage: 3.65V
Over Discharge Voltage: 2.35V
Size: 50 x 40mm

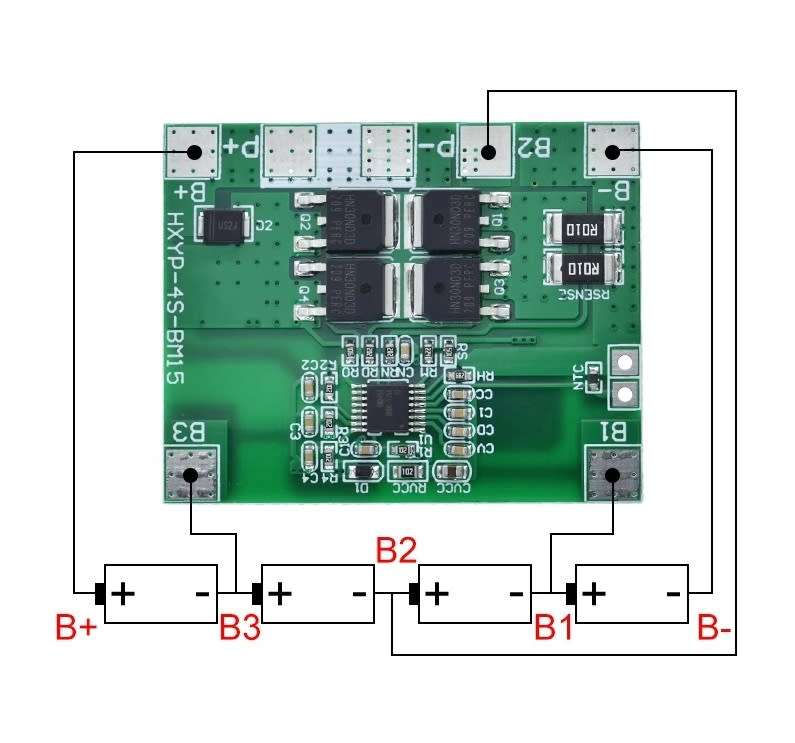

Soldering Point Layout:

B- : Connect to battery 1 negative
B1 : Connect the point between battery 1 and battery 2
B2 : Connect the point between battery 2 and battery 3
B3 : Connect the point between battery 3 and battery 4
B+ : Connect to battery 4 positive

First contact the B- pin and add one battery at a time till the last B+, otherwise it may cause damage to the board.

P + charging/discharge correct poles (charging end/discharge end sharing)
P - charging/discharge terminal negative terminal (charging end/discharge end sharing)
