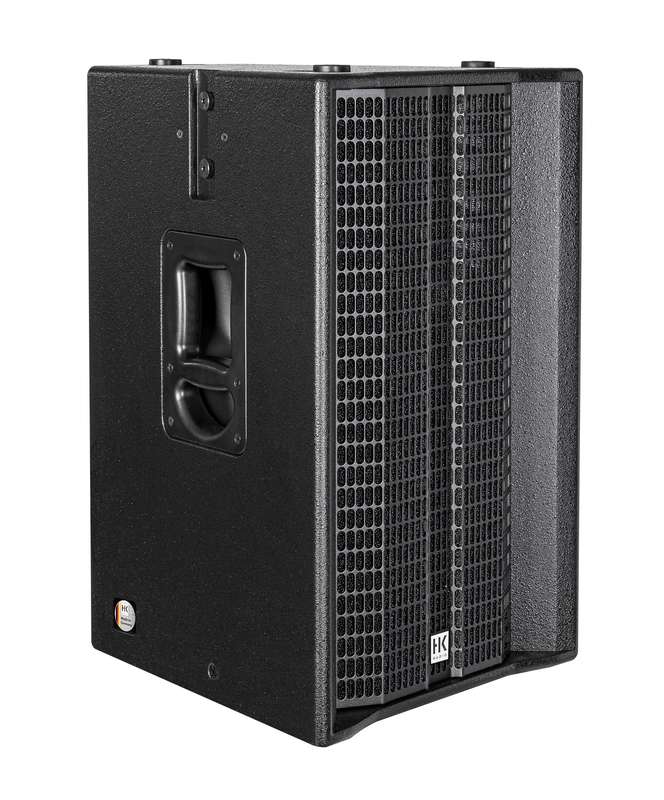

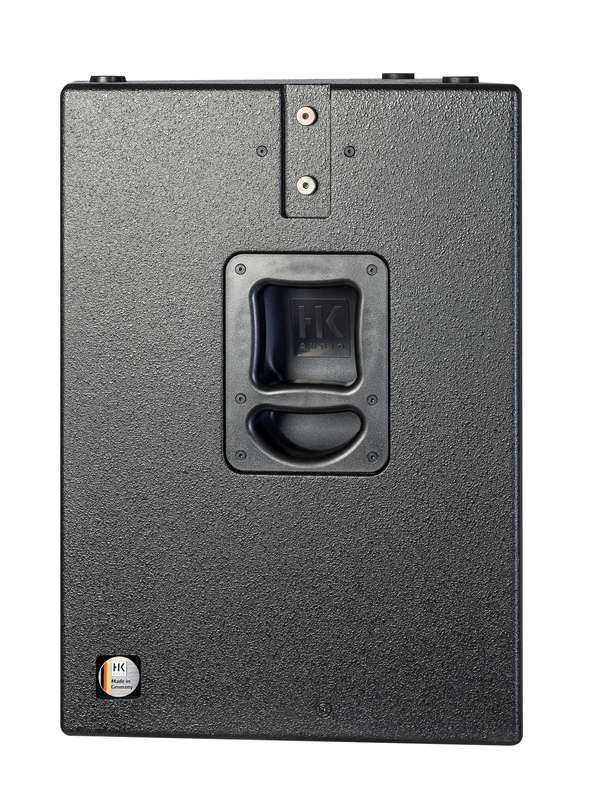

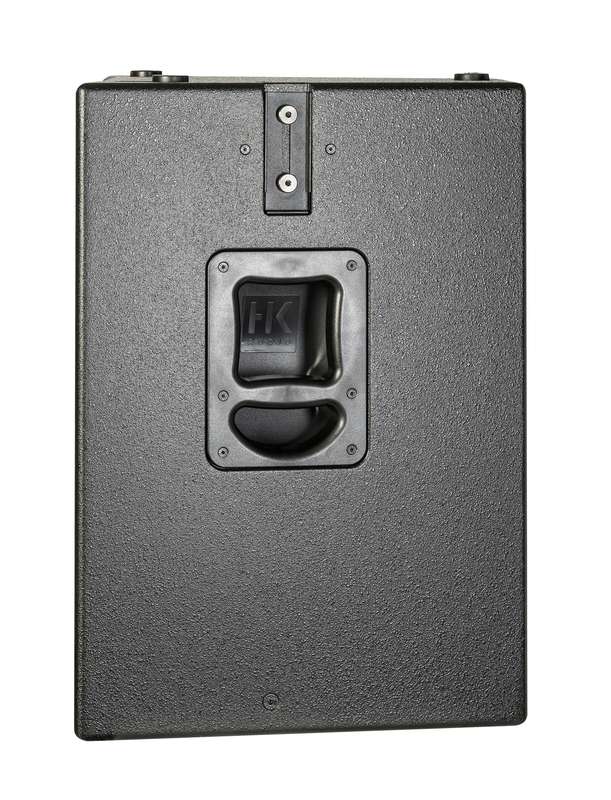

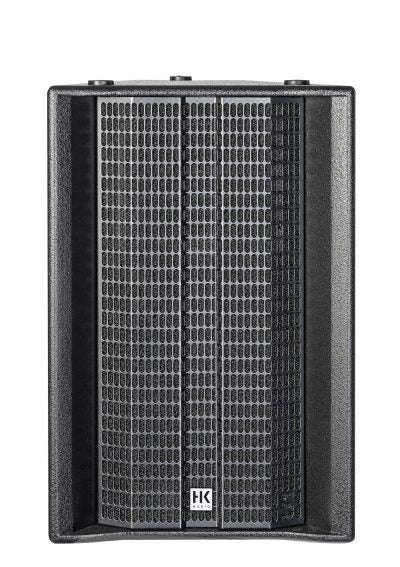

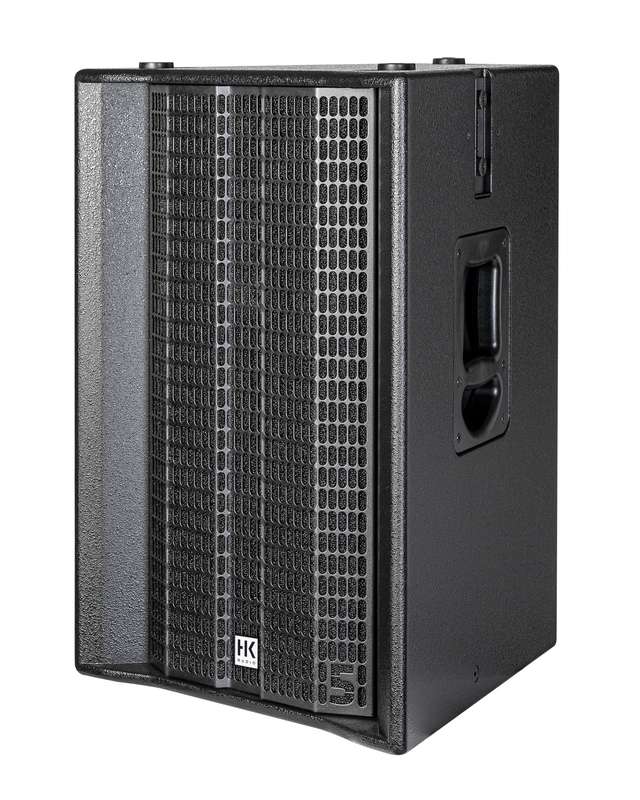

HK Audio LINEAR 5 MKII 308 LTA Stage Monitor - Each - Black
Horn-loaded Long-Throw-Mid-/High-Unit with Multi-Cell-Transformer
LINEAR 5 MK II 308 LTA is a highly efficient, scalable and economical long-throw active mid/high unit for large, long and wide rooms as well as open air spaces. It fills the gap between the classic point source PA and the line array in the form of a compact, horn-loaded direct sound source.
The LINEAR 5 MK II 308 LTA with 1-inch HF-Driver and Multicell Transformer (MCT) offers unprecedented sound coverage depth without treble drop-off and with compact dimensions. Balanced and powerful sound can reach up to 40 metres and up to 3000 people without having to use delay lines. The bass and mids are reproduced crisply and richly by three vertically arranged, horn-loaded 8-inch woofers.
Precisely tuned presets for clustering and headstacking are available directly on the speaker. Thanks to the flexible design variants, the system can grow as required. Even with just one LINEAR 5 MK II 308 LTA mid/high unit (per side), the sound reaches much greater depths. Cluster, headstack or headstack cluster setups can be used to achieve coverage patterns with more width and depth.
LINEAR 5 MK II 308 LTA is equipped with PowerCon connectors and PowerCon Link, which simplifies wiring and saves cable material.
Specifications:
Max. SPL @ 10% THD 133 dB half space (100 Hz 12 kHz averaged)
Max. SPL peak @ 10 % THD 138 dB half space
Frequency response +/-3 dB 105 Hz 17 kHz
Frequency response -10 dB 98 Hz 19 kHz
Power amp output (rms/peak) 600 / 1,200 W
Amp type Class D - biamped
LF driver -
Low-/mid speaker 3x 8", 1.5" voice coil
HF driver 1" Compression driver, 1.7" voice coil
Horn directivity 60° x +5/-25° MCT horn
Active crossover frequency 1.6 kHz FIR X-over with 60 dB/oct.
Maximum input level +20 dBu
Analog inputs 1x XLR combo balanced
Analog thru 1x XLR balanced
DSP Out 1x XLR balanced
Network port Ethercon RJ45, 1x In , 1x Thru
Filter presets Single, Cluster, Headstack, Remote
Remote software DSP CONTROL (Windows, Mac OS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 48 kHz
System latency <= 2.9 ms
Mains connector 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100240 V
Power consuption 1 A / 100240 V nominal according to EN 62368-1
Angels up (Monitor angle) -
Pole mount MonoTilt 0°
Rigging points 5x M8 (AP-8)
Carrying handles 2x HK Audio MultiGrip
Housing Birch multiplex
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 44 x 68 x 46 cm 17-21/64 x 26-49/64 x 189-7/64"
Weight 25 kg / 55.1 lbs
