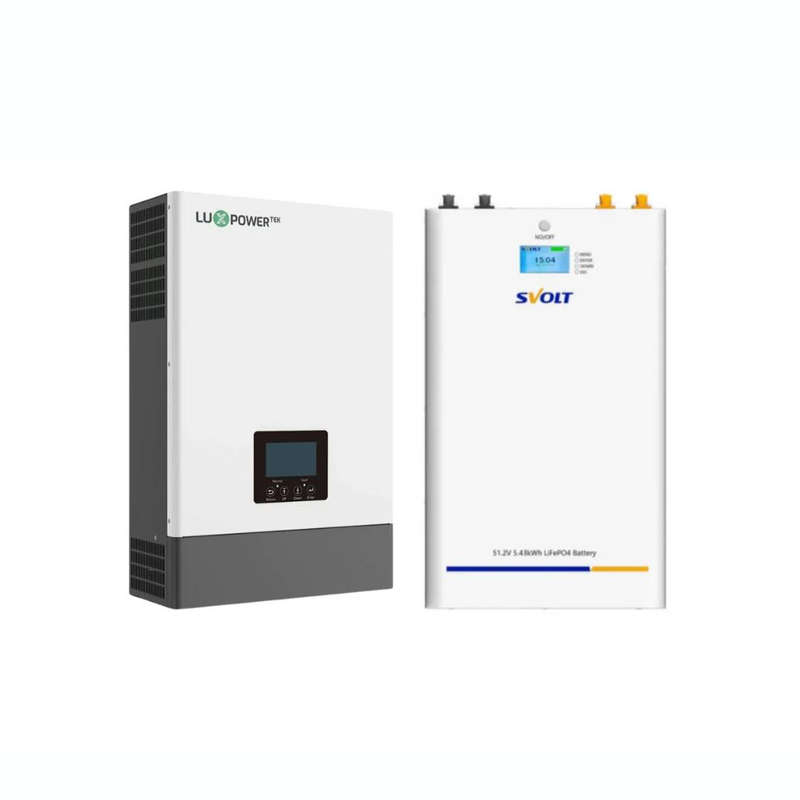

LUXPOWER 5KW Off-Grid Inverter & SVOLT 5.43kWh Lithium Battery Package

LUXPOWER 5KW Off-Grid Inverter & SVOLT 5.43kWh Lithium Battery Package

LUXPOWER SNA5000 WPV 5KW 48V + WIFI Dongle

The Solar Select LuxPower SNA 5000 inverter is expertly designed for optimal off-grid power solutions. Featuring dual high voltage MPPTs with a maximum PV input of 6000 Watts and seamless communication with diverse lithium battery types, it offers full off-site monitoring via app, making it one of the most versatile units available.

Key Features

• Intelligent Off-Grid & Hybrid modes
• Simultaneous power from PV and AC
• Dual wide-range MPPTs
• BMS communication compatible with major battery brands
• Free remote app monitoring and upgrades
• Suitable for single or unbalanced three-phase setups
• Supports up to 10 parallel units
• Integrated generator interface

Battery Specifications

• Energy: 5.43kWh
• Installation Type: Wall Mounted
• Battery Type-Chemistry: LiFePO4
• Nominal Voltage: 51.2V
• Nominal Capacity: 106Ah
• Dimensions (LxWxH): 510 x 475 x 160mm
• Weight: 45.6kg
• Terminal Type: Fast Plug In & Plug Out
• Case Material: SPCC
• BMS Built-in: Yes
• Internal Resistance: <25m
• Efficiency Round Trip: >97%
• Self Discharge Per Month: <3%
• Max Parallel Connectors: 16 Pcs
• Series Connections: Not Allowed
• Cycle Life (0.3C, 25°C@90%DOD): >6,000 cycles
• Discharge Temperature: -20°C to 70°C
• Charge Temperature: -5°C to 65°C
• Storage Temperature: 0°C to 30°C
• Bluetooth (App): Optional
• LCD Screen: Yes
• Heating Function: Optional
• Operating Voltage Range: 43.2V-57.6V
• Recommend Charge Voltage: 56.0V±0.2V
• Max Charge Voltage: 58.4V±0.2V
• Recommend Charge Current: 50A
• Max Continuous Charge Current: 100A
• Recommend Discharge Voltage: 44.8V±0.2V
• Max Discharging Voltage: 43.2V±0.2V
• Max Continuous Discharge Current: 100A
• Peak Discharge Current: 150A (100ms)

What's In the Box

• 1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
• 1 x Red (Positive) Battery Cable
• 1 x Black (Negative) Battery Cable
• 1 x Ethernet Cable
• 1 x Manual
• 1 x Wall Mount Bracket
• 1 x Warranty Card
• 5 Years Warranty
• 10 Years Service Warranty

Combo Includes

• 1 x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES with 5 Years Warranty
• 1 x SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery with 5 Years Warranty
• Battery cables and brackets included
