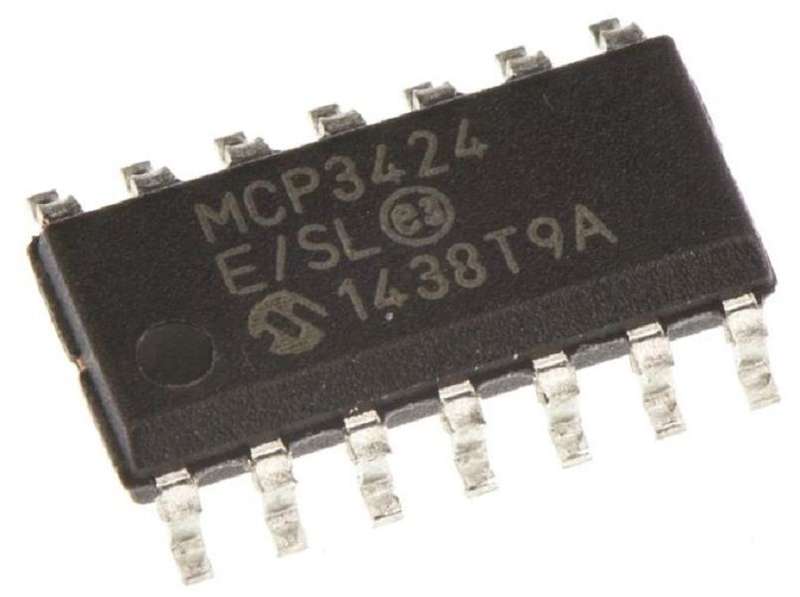

Microchip (MCP3424-E/SL) Analogue to Digital Converter, Quad, 18 bit

Analogue to Digital Converter, Quad, 18 bit, 3.75 SPS, Differential, I2C,Single, 2.7 VProduct OverviewThe MCP3424-E/SL is a 4-channel low-noise high accuracy delta-sigma A/DConverter with differential inputs and up to 18-bit of resolution. The on-boardprecision 2.048V reference voltage enables an input range of ±2.048Vdifferentially. The device uses a two-wire I²C compatible serial interface andoperates from a single power supply ranging from 2.7 to 5.5V. The MCP3424 deviceperforms conversions at rates of 3.75, 15, 60 or 240 samples per seconddepending on user controllable configuration bit settings using the two-wireI²C compatible serial interface. The I²C address is user configurable with twoaddress selection pins. This device has an onboard programmable gain amplifier(PGA). User can select the PGA gain of x1, x2, x4 or x8 before theanalogue-to-digital conversion takes place. This allows the MCP3424 device toconvert a smaller input signal with high resolution. The device has continuousand one-shot mode.Differential input operationOnboard voltage reference with 15ppm/°C driftOnboard PGAINL 10ppm of FSR maximum135µA at 3V Low current consumptionOne-shot or continuous conversion optionsOnboard oscillatorApplicationsPortable Devices, Consumer Electronics, Sensing & Instrumentation, Automation &Process ControlProduct InformationResolution (Bits): 18bitSampling Rate: 3.75SPSInput Channel Type: DifferentialSupply Voltage Min: 2.7VData Interface: I2CSupply Voltage Type: SingleSupply Voltage Max: 5.5VADC / DAC Case Style: SOICNo. of Pins: 14PinsOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: Quad 18-Bit Sigma-Delta ADCsMSL: MSL 1 - Unlimited
