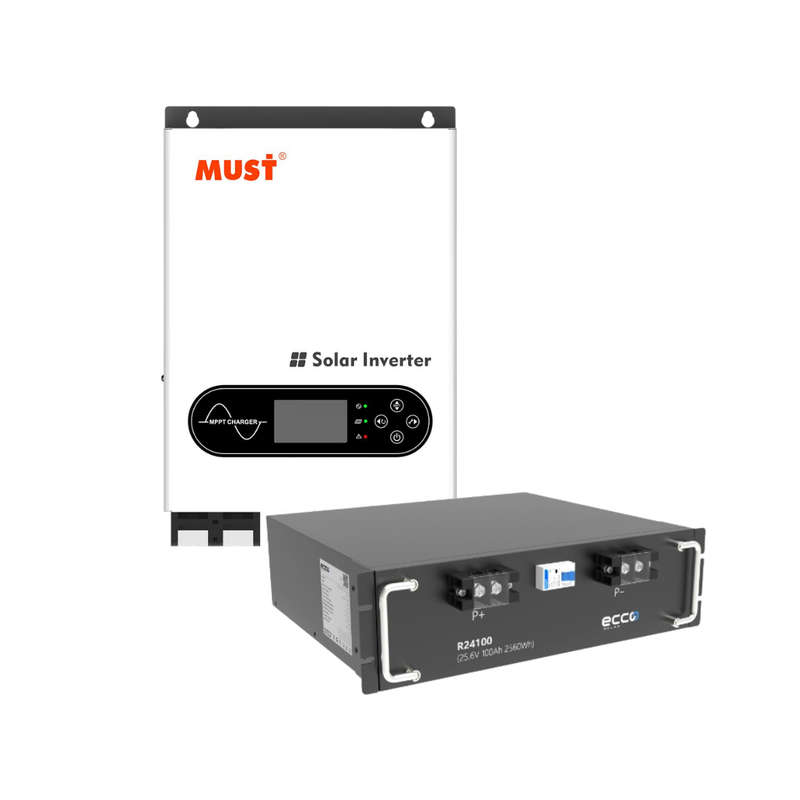

Must 3.6kW 100A 24V MPPT Solar Hybrid Inverter PV1800 ECO
Reliable Off-Grid & Hybrid Power Solution
The Must PV1800 ECO 3.6kW Hybrid Inverter is a versatile, multi-function power system that integrates an inverter, MPPT solar charge controller, and battery charger into a compact unit. Designed for off-grid and hybrid applications, it ensures uninterrupted power supply by intelligently managing solar energy, AC utility, and battery storage.
With a high PV input voltage capacity (up to 400V/450V/500V), this inverter maximizes solar energy utilization and can even operate without a battery, making it a flexible and cost-effective energy solution.
Key Features:
- Pure Sine Wave Output: Delivers stable, high-quality power for sensitive electronics.
- Smart LCD Display: Allows easy configuration of working modes, charge current, and voltage settings.
- Built-in MPPT Solar Charge Controller: Maximizes solar power conversion efficiency.
- Wide PV Input Voltage Range: Supports higher solar voltage for increased flexibility.
- Battery-Free Operation: Can supply power to connected loads directly from solar panels.
- Smart Load Management: Dual output system for prioritizing critical loads.
- Advanced Protection: Overload, short circuit, and deep discharge protection.
- Cold Start Function: Allows startup without grid power.
- Remote Monitoring: Supports RS485 and CAN communication for lithium battery integration.
Technical Specifications:
Inverter Mode:
- Rated Power (Main + Second Load): 3600VA / 3600W
- DC Input Voltage: 24VDC, 135A
- AC Output Voltage: 230VAC, 50/60Hz, 15.7A
- Power Factor: 1.0
AC Charger Mode:
- AC Input Voltage: 230VAC, 50/60Hz, 17.7A
- DC Output Voltage: 24VDC, 60A
Solar Charger Mode:
- Maximum MPPT Charge Current: 100A
- MPPT Voltage Range (Typical): 30-320VDC
- Maximum PV Input Voltage (VOC): 400VDC
- Maximum PV Input Current: 18A
- Maximum MPPT Power: 4000W
- Maximum Charge Current: 100A
What's in the Box:
- 1 × Must 3.6kW 24V MPPT Hybrid Inverter
- 1 × User Manual
This high-efficiency hybrid inverter is an ideal choice for those looking for a reliable, scalable, and smart solar power solution.
Ecco 25.6V 100Ah Lithium Iron Battery High-Performance Energy Storage
Description:
Reliable Lithium Power for Solar & Backup Systems
The Ecco 25.6V 100Ah Lithium Iron Battery is a high-performance energy storage solution designed for solar power systems, UPS backup, and off-grid applications. Engineered as a superior replacement for traditional lead-acid batteries, this lightweight and long-lasting lithium battery delivers higher efficiency, faster charging, and extended cycle life.
ECCO 24V LITHIUM BATTERY
Key Features:
- 25.6V 100Ah Capacity Stores 2560Wh of energy for backup and solar applications.
- Lithium Iron Phosphate (LiFePO4) Technology Offers enhanced safety, longevity, and efficiency.
- Up to 4X Longer Lifespan Outperforms lead-acid batteries in durability and cycle life.
- High Charge & Discharge Rates Supports 100A max charge/discharge for efficient power management.
- Wide Application Compatibility:
- Solar & Backup Systems Ensures reliable power storage.
- UPS & Inverters Provides uninterrupted energy supply.
- Portable Power Solutions Ideal for off-grid, RV, marine, and camping use.
- Fast Charging & High Efficiency Reduces downtime with quick recharge capabilities.
- Compact & Lightweight Design Easier to install and transport compared to traditional lead-acid alternatives.
- Maintenance-Free & Environmentally Friendly No harmful chemicals or frequent maintenance required.
Technical Specifications:
- Energy Storage Capacity: 2560Wh
- Nominal Voltage: 25.6VDC
- Rated Capacity: 100Ah
- Bulk Absorption Voltage: 28.4V - 29.2V
- Equalize Voltage: 28.8VDC
- Float Charge Voltage: 27.2VDC
- Maximum Charge Current: 100A
- Maximum Discharge Current: 100A
Installation & Usage:
- Connect positive and negative ports to an inverter or UPS system for charging and discharging.
- Suitable for both solar-powered and traditional charging systems.
What's Included:
- 1 × Ecco LIFeLi-24100T Lithium Iron Battery
Warranty & Installation Requirements:
- 5-Year Battery warranty with long-term reliability.
- 1 Year Inverter warranty
- Professional installation recommended for optimal safety and performance.
